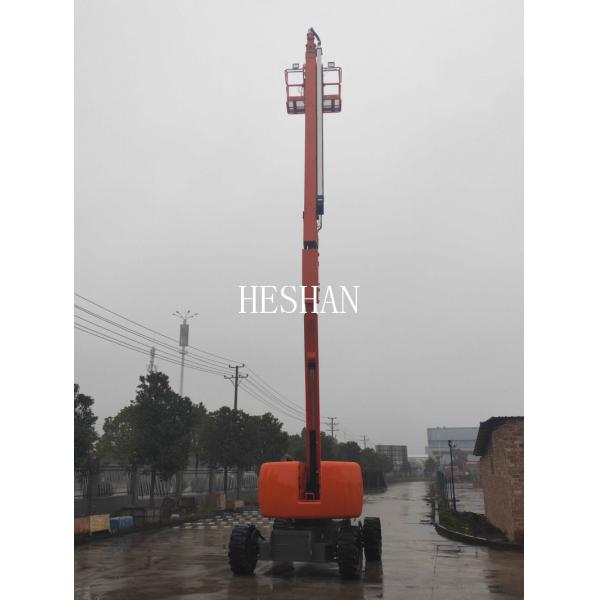

16m Construction Articulated Boom Lift Fruit Cherry Picker CE ISO Certified
16m Construction Articulated Boom Lift Fruit Cherry Picker CE ISO Certified
16m Construction Articulated Boom Lift Fruit Cherry Picker CE ISO Certified
16m Construction Articulated Boom Lift Fruit Cherry Picker CE ISO Certified
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Max. Working height :
Up-and-over height up to 60'
Power supply :
Diesel-powered,Battery powered
Load Capacity :
230kg
Color :
Blue, Red, Yellow,Orange
Table Size :
1.83*0.76M
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power :
Diesel,Battery
Machinery Test Report :
Provided
Dimensions (L x W x H) :
8.2-9.2m x 2.5-2.7m x 2.3-2.5m
Drive Speed (Raised) :
0.8-1.3km/h
Drive Speed (Stowed) :
2.3-4.3km/h
Gradeability :
30%
Description

China Factor Boom Lift Cherry Picker Fruit Picker Articulated Construction Lift with CE ISO

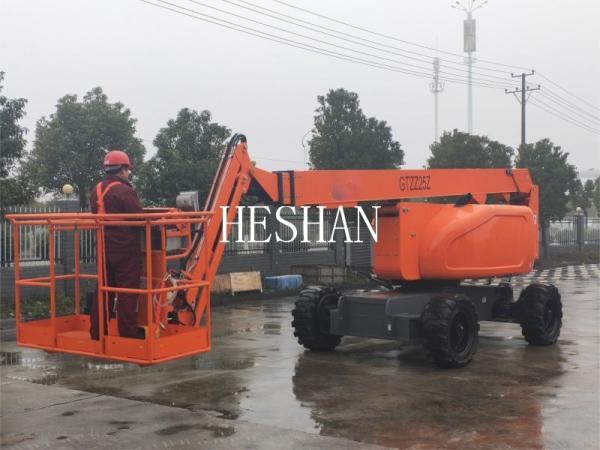

The 16m construction articulated boom lift is a type of high-altitude work platform equipment that is designed to provide safe and efficient access to high and hard-to-reach areas. This equipment features a telescopic and/or articulated boom that can be extended and positioned precisely, enabling operators to work at various heights and angles. The lift is mounted on a mobile platform, allowing it to be easily moved from one location to another in construction sites. The 16m construction articulated boom lift is commonly used in construction and building maintenance for tasks such as window cleaning, painting, and installing HVAC systems, and it offers a safe and efficient alternative to traditional ladders and scaffolding.

Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

16m Construction Articulated Boom Lift Fruit Cherry Picker CE ISO Certified

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

When it comes to finding the perfect cherry picker for your outdoor work, look no further than our engine-powered boom lifts. Our cherry pickers are designed with top-of-the-line hydraulic boom and platform technology for the ultimate performance. With a variety of boom lift specifications available, you can customize your equipment to meet the unique needs of your job. Whether you need an articulating boom lift for reaching up and over objects or a telescopic boom lift for exceptional reach and capacity, our boom lifts are the reliable and efficient solution to your aerial work needs.

Application Scenario: Warehouse Operations
Efficient access to high storage areas is crucial in warehouse operations, and the Articulated Boom lift offers a practical solution. Its compact design and precise control allow operators to navigate narrow aisles and reach elevated storage locations. This maximizes efficiency in order picking, inventory management, and maintenance tasks, optimizing overall warehouse operations.
Application Scenario: Safety Measures
Safety is paramount when operating an Articulated Boom lift, and various measures ensure a secure working environment. The equipment is equipped with advanced safety features, including anti-tip devices, load sensors, and automatic leveling systems. These features prevent accidents and maintain stability during operation, safeguarding both operators and surrounding personnel.
