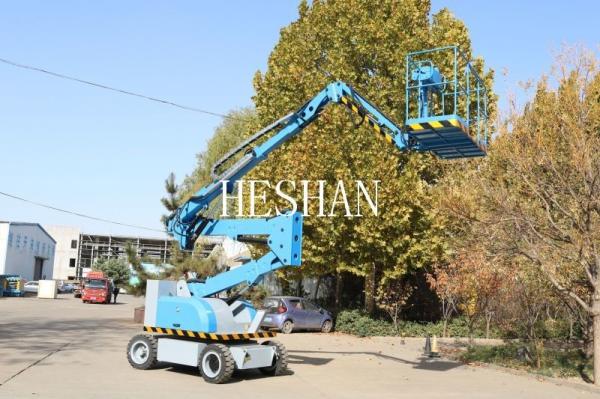

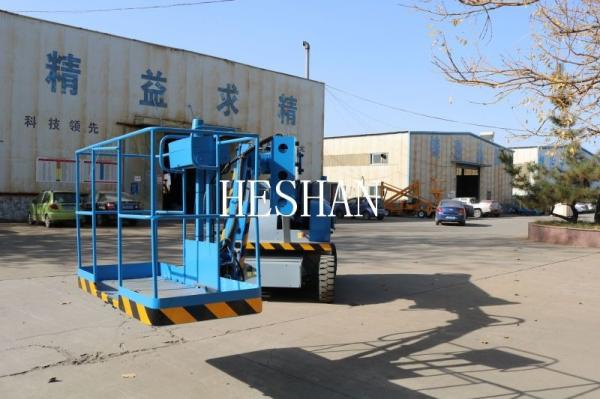

Engineering and Construction Equipment Mounted Crane Hydraulic Articulated Boom Crane Lift
Engineering and Construction Equipment Mounted Crane Hydraulic Articulated Boom Crane Lift
Engineering and Construction Equipment Mounted Crane Hydraulic Articulated Boom Crane Lift
Engineering and Construction Equipment Mounted Crane Hydraulic Articulated Boom Crane Lift
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Max. Working height :
Up-and-over height up to 60'
Load Capacity :
230kg
Table Size :
1.83*0.76M
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power :
Diesel,Battery
Rotation Angle :
360 degree
Lift Mechanism :
Articulated Lift
Weight :
2200kg
Dimensions :
Varies
Drive Speed :
0-6 mph
Description

Engineering and Construction Equipment Mounted Crane Hydraulic Articulated Boom Crane Lift

Articulated boom crane lifts are versatile equipment that are used in a wide range of industries and applications. They are commonly used in construction and building maintenance for tasks such as window cleaning, painting, and installing HVAC systems. They are also used in industrial applications for maintenance and repair of machinery and equipment. In addition, articulated boom crane lifts are utilized in the entertainment industry for stage and lighting setups. Overall, the flexibility and mobility of articulated boom crane lifts make them a valuable tool for any industry that requires access to high and hard-to-reach areas, as well as the ability to lift and move heavy objects.
Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

Engineering and Construction Equipment Mounted Crane Hydraulic Articulated Boom Crane LiftEngineering and Construction Equipment Mounted Crane Hydraulic Articulated Boom Crane Lift

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

The Articulated Boom Lift is an aerial work platform that combines precision, versatility, and power. With its multi-section boom, it can reach over obstacles and barriers, making it the ideal equipment for hard-to-reach areas. It comes in two types: engine drive and electric drive, each with its unique advantages, making it suitable for both indoor and outdoor work environments.

All-Weather Adaptability
Customization options for Articulated Boom lifts extend to all-weather adaptability. Weather-resistant features, such as protective covers, heated cabins, or insulation, enable the equipment to operate in diverse weather conditions. By customizing the lift for different climates, operators can work comfortably and safely, regardless of the external environment.
Remote Monitoring and Control
Advanced customization allows for remote monitoring and control capabilities in Articulated Boom lifts. Integration with telematics systems enables real-time monitoring of vital machine data, such as location, fuel consumption, and maintenance alerts. Remote control functionality enhances efficiency and safety by allowing operators to control the lift from a distance in certain scenarios.
