Gtbzz 12m 14m 16m Telescopic Boom Portable Articulated Arm Boom Manlift
Gtbzz 12m 14m 16m Telescopic Boom Portable Articulated Arm Boom Manlift
Gtbzz 12m 14m 16m Telescopic Boom Portable Articulated Arm Boom Manlift
Gtbzz 12m 14m 16m Telescopic Boom Portable Articulated Arm Boom Manlift
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Max. Working height :
Up-and-over height up to 60'
Power supply :
Diesel-powered,Battery powered
Load Capacity :
230kg
Color :
Blue, Red, Yellow,Orange
Table Size :
1.83*0.76M
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power :
Diesel,Battery
Machinery Test Report :
Provided
Platform Rotation :
360°
Power Source :
Diesel or Electric
Product Name :
Articulated Boom Lift
Safety Features :
Emergency Stop, Overload Protection, Fall Arrest System
Description

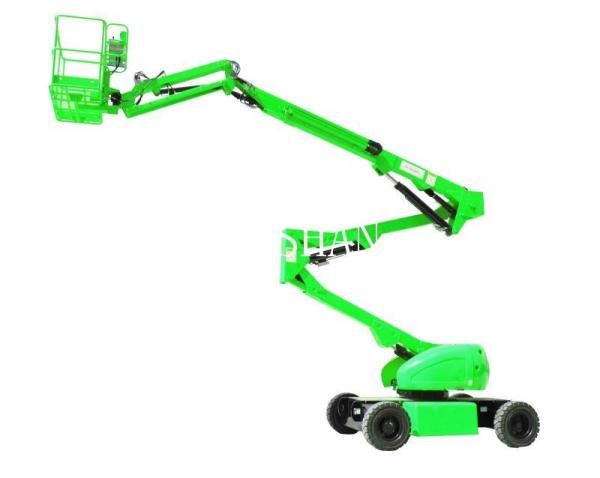

Gtbzz 12m 14m 16m Telescopic Boom Portable Articulated Arm Boom Manlift

Articulated arm boom manlifts are versatile pieces of equipment that can be used in various industries and applications. In airports, they are commonly used for aircraft maintenance and repair. In petroleum warehouses, they are used for maintenance and inspection of storage tanks and pipelines. In building maintenance, they are used for tasks such as window cleaning, painting, and repairing HVAC systems. The articulated boom provides greater flexibility and maneuverability, allowing operators to work around obstacles and in confined spaces. Additionally, the lift is mounted on a mobile platform, allowing it to be easily moved from one location to another. Overall, articulated arm boom manlifts are a valuable tool for any industry that requires access to high and hard-to-reach areas for maintenance or construction work.

Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

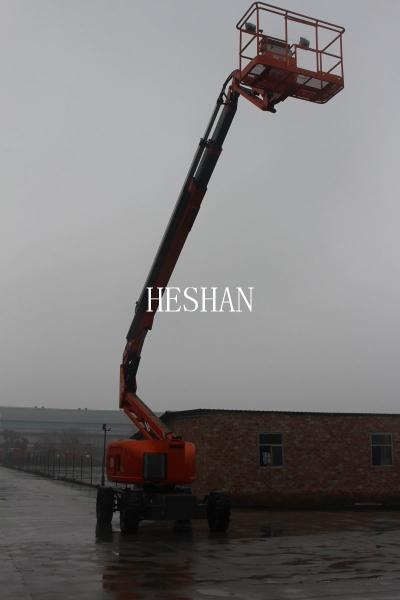

Gtbzz 12m 14m 16m Telescopic Boom Portable Articulated Arm Boom Manlift

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

Looking for the ultimate in aerial work platforms? Our engine-powered boom lifts, or cherry pickers, are the perfect solution. With their hydraulic boom and platform, you can raise and lower people with ease. And with both articulating and telescopic boom lifts available, you can choose the right machine for your specific needs.

Application Scenario: Facility Maintenance
For facility maintenance teams, the Articulated Boom lift is an essential asset that streamlines operations. Whether it's changing light fixtures, performing HVAC maintenance, or conducting routine inspections, this equipment offers precise control and articulating capabilities. It allows technicians to reach challenging areas with ease, ensuring smooth facility operation and upkeep.
Electrical Work
When it comes to electrical work, the Articulated Boom lift is the go-to solution for electricians. It provides secure and efficient access to elevated areas during electrical installations and repairs. With its stable platform and precise positioning, it facilitates proper electrical system installation, maintenance, and troubleshooting at different heights.
