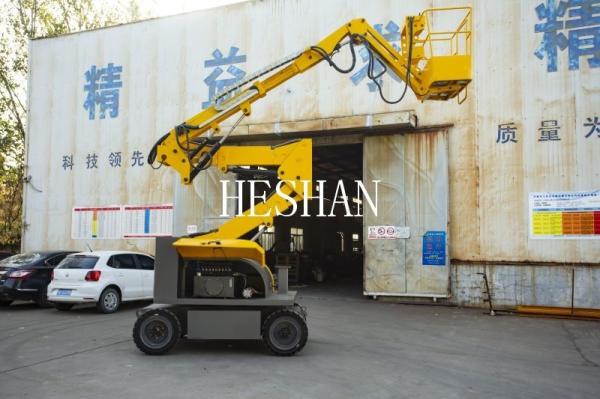

Electric Aerial Work Platform Used for All Terrain Work Platform Cherry Picker
Electric Aerial Work Platform Used for All Terrain Work Platform Cherry Picker
Electric Aerial Work Platform Used for All Terrain Work Platform Cherry Picker
Electric Aerial Work Platform Used for All Terrain Work Platform Cherry Picker
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Max. Working height :
Up-and-over height up to 60'
Power supply :
Diesel-powered,Battery powered
Load Capacity :
230kg
Color :
Blue, Red, Yellow,Orange
Table Size :
1.83*0.76M
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power :
Diesel,Battery
Machinery Test Report :
Provided
Controls :
Joystick/Platform Mounted
Drive Speed :
Up to 4.5km/h
Gradeability :
Up to 40%
Height :
Up to 40m
Description

Electric Aerial Work Platform Used for All Terrain Work Platform Cherry Picker

Self-propelled basket work platform cherry pickers offer several safety advantages when working at height. Firstly, their stable base and advanced safety features, such as outriggers and interlocks, provide greater stability and reduce the risk of tip-overs. Secondly, the basket provides a secure platform for operators to work from, reducing the risk of falls and other accidents. Thirdly, their hydraulic systems provide smooth and precise movement, allowing operators to work with greater precision and control. Additionally, self-propelled basket work platform cherry pickers can be operated by a single operator, reducing the risk of accidents associated with manual labor. Overall, the safety advantages of self-propelled basket work platform cherry pickers make them a valuable tool for any industry that requires access to high and hard-to-reach areas.
Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

Electric Aerial Work Platform Used for All Terrain Work Platform Cherry Picker

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

Are you in the market for a top-of-the-line cherry picker for your outdoor work needs? Our engine-powered boom lifts, commonly referred to as cherry pickers, are designed with hydraulic boom and platform technology to provide superior reach and power. With a variety of boom lift specifications available, you can customize your equipment to meet the unique needs of your job. Whether you need an articulating boom lift for jobs that require reaching up and over objects or a telescopic boom lift for exceptional reach and capacity, we have the perfect solution for your aerial work needs.

Application Scenario: Low to Medium Heights (10-20 meters)
Articulated Boom lifts are highly versatile and suitable for a range of applications in the 10-20 meter height range. With their compact design and precise maneuverability, they excel in tasks such as indoor maintenance, construction projects, and facility management. These lifts offer enhanced accessibility and reach, allowing operators to navigate tight spaces and obstacles with ease while ensuring efficient and safe operations.
Application Scenario: Medium to High Heights (20-40 meters)
When it comes to medium to high height applications, typically ranging from 20 to 40 meters, Articulated Boom lifts provide optimal performance. Whether it's working on tall buildings, infrastructure maintenance, or tree trimming, these lifts offer the necessary outreach and stability. Their articulating capabilities enable operators to maneuver around obstacles and reach elevated areas with ease, ensuring productivity and safety at challenging heights.
