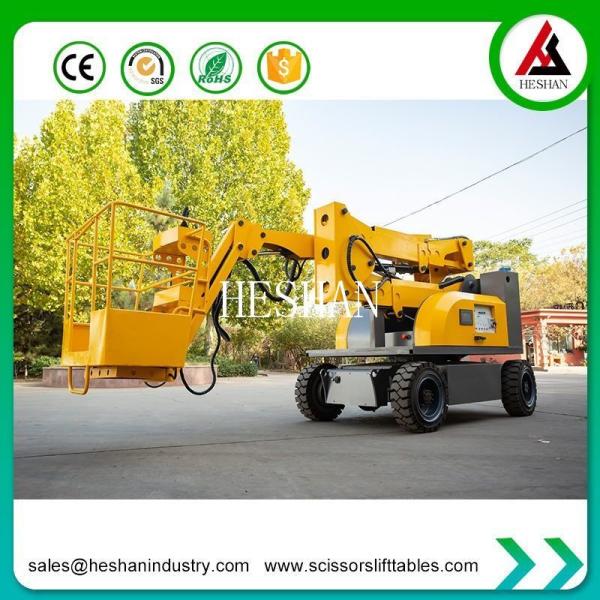

China New 20m Electric Ariel Working Platform Electric Boom Lift
China New 20m Electric Ariel Working Platform Electric Boom Lift
China New 20m Electric Ariel Working Platform Electric Boom Lift
China New 20m Electric Ariel Working Platform Electric Boom Lift
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Max. Working height :
Up-and-over height up to 60'
Power supply :
Diesel-powered,Battery powered
Load Capacity :
230kg
Color :
Blue, Red, Yellow,Orange
Table Size :
1.83*0.76M
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power :
Diesel,Battery
Machinery Test Report :
Provided
Accessories :
Basket/Tool Tray/Lifting Hook
Controls :
Joystick/Pedal
Drive System :
4WD
Height :
Up to 40m
Description

China New 20m Electric Ariel Working Platform Electric Boom Lift

Electric Boom Lift is a versatile piece of equipment that can be used in various industries and applications. It is commonly used in construction, building maintenance, and industrial applications for tasks such as painting, window cleaning, and equipment maintenance. Additionally, the electric-powered lift provides clean and quiet operation, making it suitable for use in noise-sensitive environments. The 20m height range offers access to high and hard-to-reach areas, and the articulated boom provides greater flexibility and maneuverability for working around obstacles and in confined spaces. Overall, the China New 20m Electric Ariel Working Platform Electric Boom Lift is a valuable tool for any industry that requires access to high-altitude areas for maintenance or construction work.
Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

China New 20m Electric Ariel Working Platform Electric Boom Lift

China New 20m Electric Ariel Working Platform Electric Boom Lift

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

For jobs that require reaching farther with more capacity, our telescopic boom lifts are the way to go. With their precise positioning and ultimate versatility, you can get right where you need to be as simply and efficiently as possible.

Enhanced Stability Control:
Safety and stability are paramount in any elevated work operation. Our Articulated Boom lift incorporates advanced stability control systems to ensure a secure working environment. With features like outriggers, automatic leveling, and tilt sensors, operators can confidently work at heights while maintaining stability and balance.
Compact Design, Big Performance:
Don't let its compact size fool you. Our Articulated Boom lift delivers big performance in a compact package. With its nimble maneuverability and compact dimensions, it can easily navigate tight spaces and congested job sites. Enjoy the convenience of accessing elevated areas in confined work environments without compromising on performance.
