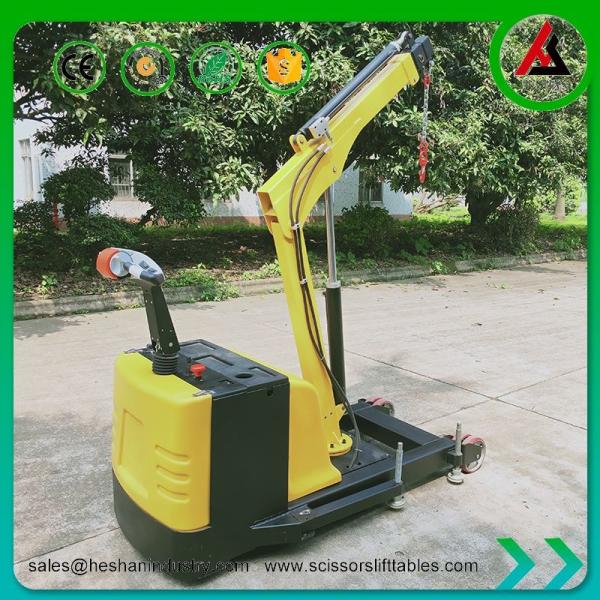

CE Mobile Electric Floor Crane 1 Ton Heavy Loads Battery Powered
CE Mobile Electric Floor Crane 1 Ton Heavy Loads Battery Powered
CE Mobile Electric Floor Crane 1 Ton Heavy Loads Battery Powered
CE Mobile Electric Floor Crane 1 Ton Heavy Loads Battery Powered
Specifications
Brand Name :
HESHAN
Model Number :
EPFC
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 2000~USD 5000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000 set per year
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
Industrial manufacturing,Logistics and warehousing,Shipping and port industry,Construction sites
Load Capacity :
1200kg
Lifting height :
3570mm
Power :
Battery
Color :
Black,Yellow
CE certification :
YES
Driven :
FUll AUTO electric
Move mode :
Electric
frequency :
50HZ
liftingHeight :
3m
liftingSpeed :
20m/min
material :
Steel
name :
Electric Floor Crane
Description
1 Ton Heavy Loads Electric Power Source Mobile Floor Cranes
This type of Electric Floor Crane is commonly used in manufacturing, construction, and warehouse environments, where heavy loads need to be lifted and moved over a wide area. The battery-powered operation makes it a flexible and efficient lifting solution that can be used in areas where electrical outlets may not be available.
The compact and mobile design of this Electric Floor Crane makes it easy to maneuver in tight spaces and narrow aisles. It is equipped with wheels or casters that allow it to be easily moved around the worksite, making it a versatile lifting solution for a variety of applications.
This type of crane is designed to be safe and reliable, with features such as overload protection and emergency stop buttons that ensure the safety of the operator and the load being lifted.
Specification:
Model Type EFC-25 EFC-25-AA EFC-CB-15 ESC900R
Electric rotation 240°
Drawing On following Page 2 On following Page 3 On following Page 4 On following Page 5
( Extended 2 stages) 1280+610+610mm 1280+610+610mm 1220+610+610mm 1280mm+610mm+610mm
Load Capacity 1200kg 1200kg(1280mm) 700kg(1220mm) 900kg(1280mm)
Load Capacity (stage 1) 600kg(1280~1890mm) 600kg(1280~1890mm) 400kg(1220~1830mm) 450kg(1280~1890mm)
Load Capacity (stage 2) 300kg(1890~2500mm) 300kg(1890~2500mm) 200kg(1890~2440mm) 250KG(1890~2500mm)
Max Lifting Height 3570mm 3540mm 3560mm 3180mm
Min Lifting Height 960mm 935mm 950mm 1410mm
Retracted size(W*L*H) 1920*760*1600mm 1865*1490*1570mm 2595*760*1580mm 2000*1854*1550mm
Arm Electric Rotation / / / 120°left/right
CE Mobile Electric Floor Crane 1 Ton Heavy Loads Battery Powered
The battery-operated crane is a popular option for those who need a crane that can be easily moved from one location to another. This type of crane is ideal for use in locations where electrical power is not readily available. Its compact design and lightweight construction make it easy to move, while its counterbalance design provides stability and helps prevent tipping, making it a safer and more efficient alternative to manual handling.
In conclusion, Electric Floor Cranes provide the versatility, efficiency, and safety needed for handling heavy loads in industrial and manufacturing environments. With a counterbalance design, electric power source, and battery-operated options, these cranes offer the mobility and flexibility you need to get the job done effectively. Whether you need a permanent solution or a cost-effective rental option, Electric Floor Cranes are an ideal solution for your material handling needs.
