Electric Mobile Pickup Electric Floor Crane 1 Ton For Warehouse
Electric Mobile Pickup Electric Floor Crane 1 Ton For Warehouse
Electric Mobile Pickup Electric Floor Crane 1 Ton For Warehouse
Electric Mobile Pickup Electric Floor Crane 1 Ton For Warehouse
Specifications
Brand Name :
HESHAN
Model Number :
EPFC
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 2000~USD 5000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000 set per year
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
Industrial manufacturing,Logistics and warehousing,Shipping and port industry,Construction sites
Load Capacity :
1200kg
Lifting height :
3570mm
Power :
Battery
Color :
Black,Yellow
CE certification :
YES
Driven :
FUll AUTO electric
Move mode :
Electric
Operation Temperature :
-20℃~+50℃
Power Supply :
220V
Product Name :
Electric Floor Crane
Protection Level :
IP54
Description

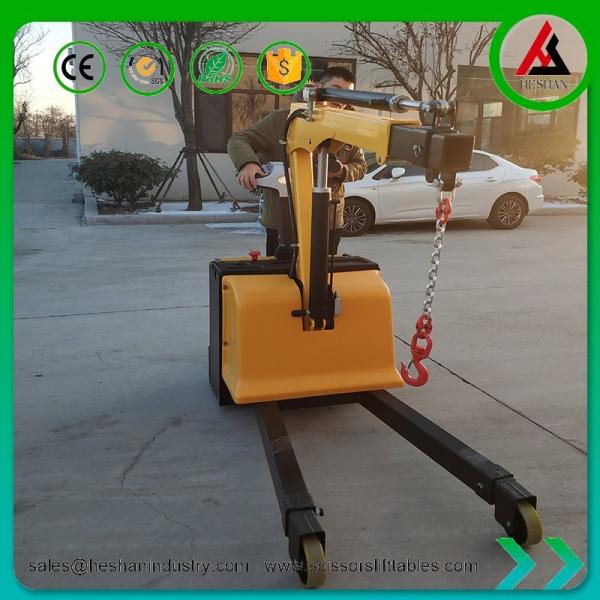

Mobile Warehouse Pickup Electric Floor Crane 1 Ton
This type of crane is designed to be mobile, allowing it to move around the worksite and lift heavy loads with ease. It is operated using an electric motor that powers the lifting mechanism, and it can be controlled using a wired or wireless remote control for safe and precise operation.
The Electric Mobile Pickup Electric Floor Crane is typically mounted on wheels or casters, allowing it to be moved easily from one location to another. This makes it a flexible and efficient lifting solution for lifting heavy loads in different areas of a worksite.
This type of crane typically has a load capacity of up to several tons, making it suitable for lifting a wide range of heavy objects, including machinery, equipment, and large components. It can also be equipped with different types of lifting attachments, such as hooks or slings, to accommodate different types of loads.
Specification:
Model Type EFC-25 EFC-25-AA EFC-CB-15 ESC900R
Electric rotation 240°
Drawing On following Page 2 On following Page 3 On following Page 4 On following Page 5
( Extended 2 stages) 1280+610+610mm 1280+610+610mm 1220+610+610mm 1280mm+610mm+610mm
Load Capacity 1200kg 1200kg(1280mm) 700kg(1220mm) 900kg(1280mm)
Load Capacity (stage 1) 600kg(1280~1890mm) 600kg(1280~1890mm) 400kg(1220~1830mm) 450kg(1280~1890mm)
Load Capacity (stage 2) 300kg(1890~2500mm) 300kg(1890~2500mm) 200kg(1890~2440mm) 250KG(1890~2500mm)
Max Lifting Height 3570mm 3540mm 3560mm 3180mm
Min Lifting Height 960mm 935mm 950mm 1410mm
Retracted size(W*L*H) 1920*760*1600mm 1865*1490*1570mm 2595*760*1580mm 2000*1854*1550mm
Arm Electric Rotation / / / 120°left/right
Electric Mobile Pickup Electric Floor Crane 1 Ton For Warehouse

In the shipping and port industry, Electric Floor Crane is typically used for loading and unloading containers and bulk cargo, as well as moving cargo on the dock. Its powerful lifting capacity and mobility make it an essential tool for handling heavy loads in this industry.

In construction sites, Electric Floor Crane is mainly used for handling construction materials such as concrete, steel bars, and timber. Its versatility and maneuverability make it an ideal equipment for lifting and moving heavy materials in tight and challenging spaces.
