EFC-25 Adjustable Electric Powered Floor Crane Load 1200kg For Workshop
EFC-25 Adjustable Electric Powered Floor Crane Load 1200kg For Workshop
EFC-25 Adjustable Electric Powered Floor Crane Load 1200kg For Workshop
EFC-25 Adjustable Electric Powered Floor Crane Load 1200kg For Workshop
Specifications
Brand Name :
HESHAN
Model Number :
EPFC
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 2000~USD 5000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000 set per year
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
Industrial manufacturing,Logistics and warehousing,Shipping and port industry,Construction sites
Load Capacity :
1200kg
Lifting height :
3570mm
Power :
Battery
Color :
Black,Yellow
CE certification :
YES
Driven :
FUll AUTO electric
Move mode :
Electric
Safety Device :
Overload Protection
Travelling Speed :
20m/min
Weight :
450kg
Wheel Diameter :
φ180mm
Wheel Material :
Nylon
Product Name :
Electric Floor Crane
Protection Level :
IP54
Description

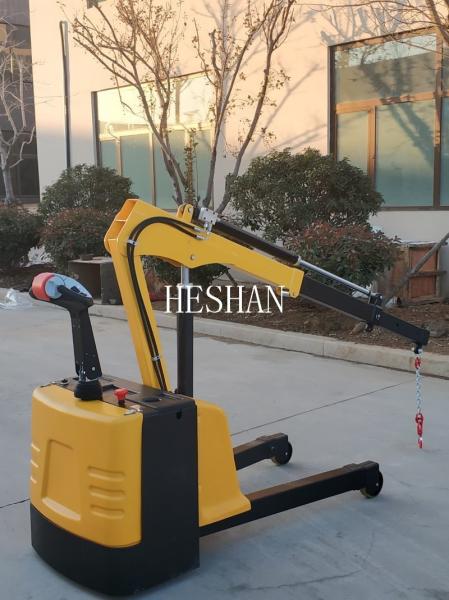

EFC-25 Adjustable Electric Powered Floor Crane Load 1200kg For Workshop
An Adjustable Electric Powered Floor Crane is a versatile and powerful lifting device designed to lift and move heavy loads with ease. This type of crane is typically floor-mounted and can be easily moved around the worksite using wheels or casters.
The Adjustable Electric Powered Floor Crane is operated using an electric motor that powers the lifting mechanism. It can be controlled using a wired or wireless remote control, allowing the operator to move the crane and lift the load from a safe distance.
One of the key features of this type of crane is its adjustable height and reach. This allows it to be used in a range of different settings and to lift loads from different angles. The adjustable height and reach also make it easier to maneuver the crane in tight spaces and narrow aisles.
The Electric Powered Floor Crane is typically equipped with different types of lifting attachments, such as hooks, slings, or magnets, to accommodate different types of loads. It can also be equipped with safety features such as overload protection and emergency stop buttons to ensure the safety of the operator and the load being lifted.
Specification:
Model Type EFC-25 EFC-25-AA EFC-CB-15 ESC900R
Electric rotation 240°
Drawing On following Page 2 On following Page 3 On following Page 4 On following Page 5
( Extended 2 stages) 1280+610+610mm 1280+610+610mm 1220+610+610mm 1280mm+610mm+610mm
Load Capacity 1200kg 1200kg(1280mm) 700kg(1220mm) 900kg(1280mm)
Load Capacity (stage 1) 600kg(1280~1890mm) 600kg(1280~1890mm) 400kg(1220~1830mm) 450kg(1280~1890mm)
Load Capacity (stage 2) 300kg(1890~2500mm) 300kg(1890~2500mm) 200kg(1890~2440mm) 250KG(1890~2500mm)
Max Lifting Height 3570mm 3540mm 3560mm 3180mm
Min Lifting Height 960mm 935mm 950mm 1410mm
Retracted size(W*L*H) 1920*760*1600mm 1865*1490*1570mm 2595*760*1580mm 2000*1854*1550mm
Arm Electric Rotation / / / 120°left/right
EFC-25 Adjustable Electric Powered Floor Crane Load 1200kg For WorkshopEFC-25 Adjustable Electric Powered Floor Crane Load 1200kg For Workshop
