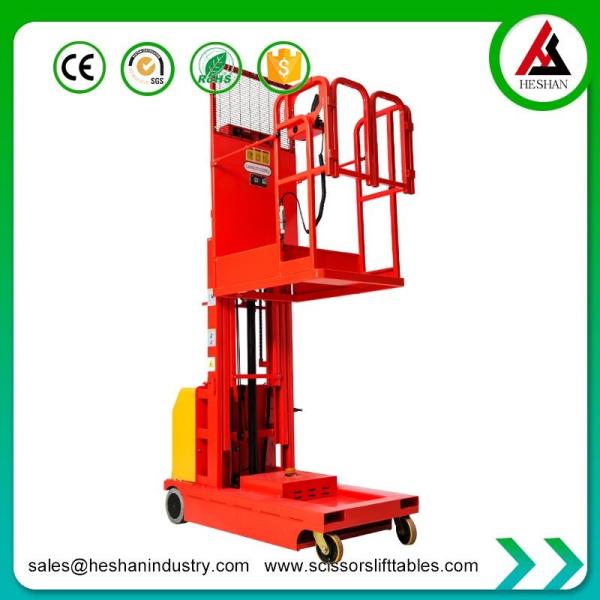

Low Level Electric Man Up Order Picker Truck 200kg Loading Capacity
Low Level Electric Man Up Order Picker Truck 200kg Loading Capacity
Low Level Electric Man Up Order Picker Truck 200kg Loading Capacity
Low Level Electric Man Up Order Picker Truck 200kg Loading Capacity
Specifications
Brand Name :
HESHAN
Model Number :
OP
Certification :
CE,ISO,SGS,ROHS,CE, GS
Place of Origin :
China
MOQ :
1 set
Price :
USD 2000~USD 5000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000 set per year
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Product name :
Electric Forklift, Electric order picker, DYT Series order picker, Full electric low level order picker with 2500kg capacity, mobile order picker
Rated loading capacity :
200kg
Type :
Order picker
After-sales service provided :
Free spare parts, Online support
Max. lifting height :
6.5M
Warranty :
1 Year
Application :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops
Color :
Yellow, Red and Black, Red, Blue, Customized
Power souce :
Electric Motor
Platform size :
600*640mm
Optional Features :
Customized color and logo
Product Name :
Electric Order Picker
Safety Features :
Safety sensors and emergency stop button
Steering System :
Power-assisted
Description
Man-Up Electric Picker Truck With Low Levell
The Low Level Electric Man Up Order Picker is a highly versatile piece of equipment that plays a critical role in the warehousing, supermarket and factory industries. With its ability to quickly and safely access items stored at low levels, this order picker can significantly increase the speed and accuracy of order picking and inventory management tasks.
It's also designed with safety features such as non-slip platforms and guardrails, ensuring the safety of operators while they work. The compact design of the equipment allows it to work in narrow aisles and tight spaces, maximizing storage capacity in the warehouse.
Specification:
Model Type OP3-2.7 OP3-3.3 OP3-4.0 OP3-4.5
Max.Platform Height mm 2700 3300 4000 4500
Max. Working Height mm 4700 3500 4200 4700
Max.Machine Height mm 4120 5000 5400 6000
Ground Clearance mm 40
Rated Capacity kg 300
Platform Size mm 600*640
Max.Drive Speed (platform Stowed) km/h 4
Max.Drive Speed (platform Elevated) km/h 1.6
Min.turning Radius mm 1500
Max.Climbing Capacity % 15~20
Driving Wheel Size mm 230*80
Caster Size mm 6
Driving Motor v/kw 2*24/0.4
Lifting Motor v/kw 24/1.6
Anerold battery v/Ah 2*12/150
Charger v/A 24/15
Overall Length mm 1530 1620
Overall Width mm 700 700
Overall Height mm 1830 2130 1840 2000
Overall Net Weight kg 430 450 660 680
Low Level Electric Man Up Order Picker Truck 200kg Loading CapacityLow Level Electric Man Up Order Picker Truck 200kg Loading Capacity
One of the key advantages of using an electric order picker is increased productivity and efficiency. By eliminating the need for workers to climb up and down ladders or use forklifts to reach items, the order picking process is much faster and more efficient. In addition, the elevated operator platform provides a clear view of the surrounding area, reducing the risk of accidents and increasing safety in the workplace.
In conclusion, if you're looking for a material handling solution that will improve the speed and accuracy of your order picking process, an Order Picker may be the right choice for your operation. With its versatility, maneuverability, and safety features, it is no wonder why these machines have become such a popular choice in the warehouse and distribution industry.
Our order picker is available in a range of heights, allowing operators to reach items that are located on high shelves and storage racks.
The order picker is equipped with safety features such as a stability control system, anti-slip platform, and load capacity warning, ensuring that operators can work safely and efficiently.
Our order picker is designed to be energy-efficient, reducing operational costs and minimizing environmental impact. The equipment's low energy consumption and long battery life make it an eco-friendly choice for any business.
