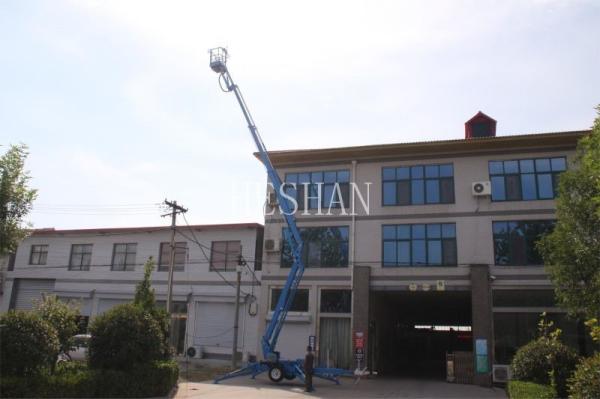

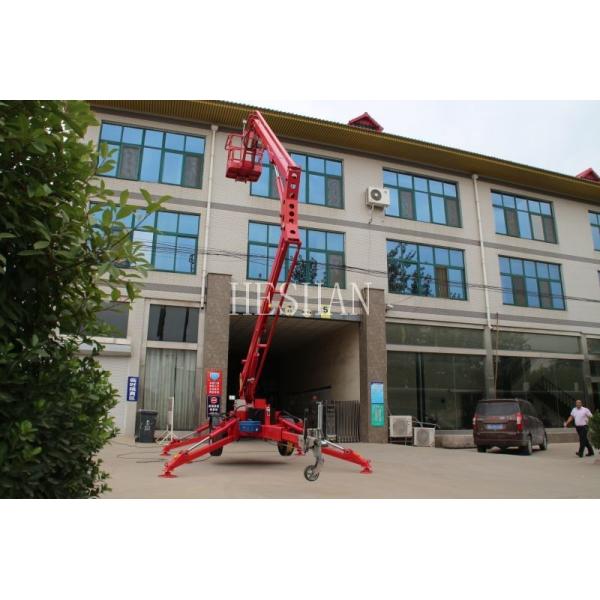

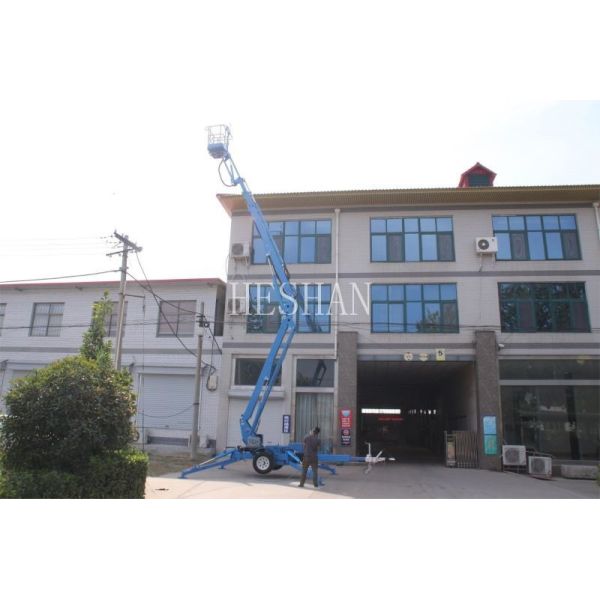

Towable Articulated Boom Lift Industrial Aerial Cherry Picker 10m 12m 14m 16m 19m
Towable Articulated Boom Lift Industrial Aerial Cherry Picker 10m 12m 14m 16m 19m
Towable Articulated Boom Lift Industrial Aerial Cherry Picker 10m 12m 14m 16m 19m
Towable Articulated Boom Lift Industrial Aerial Cherry Picker 10m 12m 14m 16m 19m
Specifications
Brand Name :
HESHAN
Model Number :
CP
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Max. Working height :
Up-and-over height up to 60'
Power supply :
Diesel-powered,Battery powered
Load Capacity :
200kg
Color :
Blue, Red, Yellow,Orange
Table Size :
0.9*0.7M
Lifting height :
8m,10m,12m,14m,16m,19m,22m
Rotation Angle :
360 degree
Lift Mechanism :
Articulated Lift
Weight :
1600kg
Controls :
Joystick/Pedal
Drive Speed :
Up to 4.5km/h
Gradeability :
Up to 45%
Description

Towable Aerial Cherry Picker Articulated Lifter Boom Lift For Industrial

Articulated Lifter Boom Lift benefit of boom lift access platforms is their versatility. They can be used for a variety of construction tasks, such as painting, cleaning, and repairing, as well as for installation of building elements, such as HVAC systems, lighting, and signage. This makes them a valuable tool for construction companies looking to increase their efficiency and productivity, while also ensuring the safety of their workers.
Specification:
Model Type CP-10A CP-12A CP-14A CP-16A CP-18A CP-20A
Lifting height 10M 12M 14M 16M 18M 20M
Working height 12M 14M 16M 18M 20M 22M
Load capacity 200KG
Platform size 0.9*0.7M
Working radius 5.5M 6.5M 8.5M 10.5M 11M 11M
Net Weight 1855KG 2050KG 2500KG 2800KG 2800KG 3500KG
Overall Size( L*W*H) 5.2*1.7*2.1M 6.2*1.7*2.1M 5.6*1.7*2.1M 5.7*1.7*2.2M 6.5*1.8*2.3M 5.8*1.9*2.3M
Supporting Legs Stride Distance(Horizontal) 3.0 M 3.6 M 3.6 M 3.9 M 3.9 M 3.9 M
Supporting Legs Stride Distance (Vertical) 4.7 M 4.7 M 4.7 M 4.9 M 4.9 M 4.9 M
Wind Resistance Level ≦5

Towable Articulated Boom Lift Industrial Aerial Cherry Picker 10m 12m 14m 16m 19mTowable Articulated Boom Lift Industrial Aerial Cherry Picker 10m 12m 14m 16m 19m

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

If you're in the market for a cherry picker machine, you'll be pleased to know that there are plenty of options available. These machines are designed to provide a stable and safe platform for workers to perform tasks at height.
One of the key benefits of a cherry picker machine is its ability to provide a long reach and a wide range of motion. This makes it ideal for tasks such as painting, maintenance, and more. Plus, because it's mounted on a trailer, it can be easily set up and used on a variety of surfaces.
If you need something even more versatile, a towable manlift for sale might be the perfect solution. These machines are designed to provide mobility and flexibility, making them ideal for a wide range of tasks. And if you need something that's easy to maneuver, a spider lift could be just what you need.
No matter what type of aerial work platform you choose, it's important to choose a machine that's reliable, efficient, and safe. With the right machine, you can tackle any job with confidence and get the results you need to succeed.

Adaptable to Various Terrain:
No matter the terrain, our Cherry picker adapts to ensure stable and secure operation. With its robust construction and rugged tires, it can navigate uneven surfaces, rough terrains, and even gradients with ease. Enjoy the flexibility of working on different ground conditions without compromising safety or performance.
Versatile Attachment Options:
Expand the functionality of your Cherry picker with our versatile attachment options. Whether you need a material handler, work platform, or specialized tool holder, our Cherry picker can accommodate a range of attachments to suit your specific application. Customize your setup to maximize productivity and versatility on the job.
