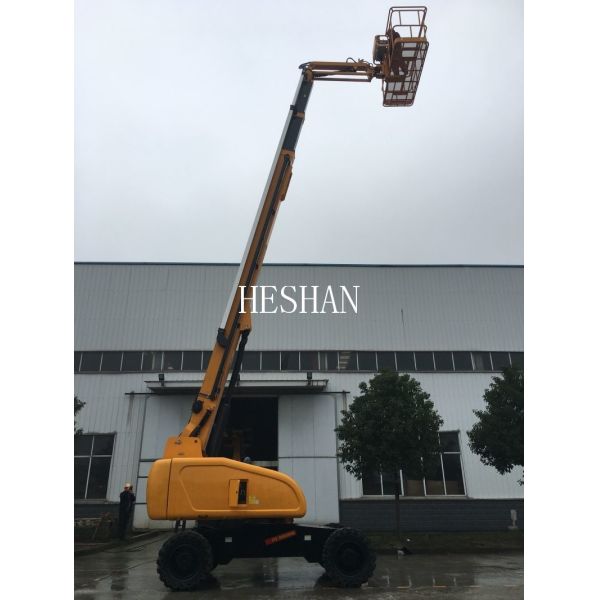

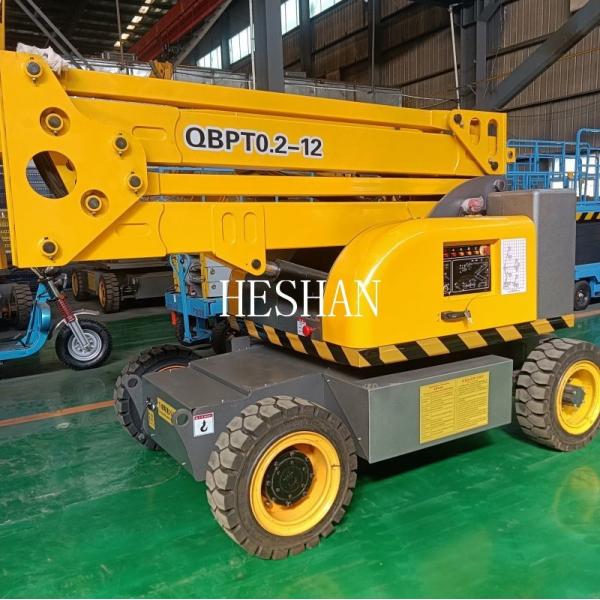

Aerial Articulated Boom Lift Self Propelled Electric Hydraulic Cherry Picker
Aerial Articulated Boom Lift Self Propelled Electric Hydraulic Cherry Picker
Aerial Articulated Boom Lift Self Propelled Electric Hydraulic Cherry Picker
Aerial Articulated Boom Lift Self Propelled Electric Hydraulic Cherry Picker
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Max. Working height :
Up-and-over height up to 60'
Power supply :
Diesel-powered,Battery powered
Load Capacity :
230kg
Color :
Blue, Red, Yellow,Orange
Table Size :
1.83*0.76M
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power :
Diesel,Battery
Machinery Test Report :
Provided
Controls :
Joystick, Foot Pedal
Tire Type :
Pneumatic
Warranty :
1 year
Weight :
Up to 5,000 lbs
Description

16m Aerial Self Propelled Articulated Boom Lift Electric Hydraulic Cherry Picker

Articulated Boom Lift is an aerial work platform, is a type of equipment that is widely used in various industries such as construction, maintenance, and warehouse operations. It allows workers to reach high heights safely and efficiently. The maximum working height of an electric boom lift can range from 40 to 135 feet, making it an ideal solution for tasks that require elevated access.
It has two power options, a diesel version and an electric version,One of the key features of an electric boom lift is its eco-friendly power source, as it operates on electricity instead of gasoline. This not only reduces emissions and noise pollution, but also makes it easier to use indoors or in enclosed spaces. Another advantage is that electric boom lifts are highly maneuverable and have a compact design, allowing them to navigate tight spaces and narrow aisles with ease.
In conclusion, an electric boom lift is a versatile and efficient tool that offers numerous benefits over traditional scaffolding or ladders. Whether you're working on a construction site, maintenance project, or simply need to reach high shelves in a warehouse, an electric boom lift can help you get the job done safely and effectively.
Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

Aerial Articulated Boom Lift Self Propelled Electric Hydraulic Cherry PickerAerial Articulated Boom Lift Self Propelled Electric Hydraulic Cherry Picker

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Aerial Articulated Boom Lift Self Propelled Electric Hydraulic Cherry Picker

Touch display fault code, easy maintenance.

For all your outdoor aerial work needs, look no further than our engine-powered boom lifts, also known as cherry pickers. With superior hydraulic boom and platform technology, our boom lifts offer unparalleled reach and power. Choose from a variety of boom lift specifications, including both articulating and telescopic options, to customize your equipment for your specific job. Our telescopic boom lifts provide exceptional reach and capacity, while our articulating boom lifts are ideal for reaching up and over obstacles. Trust our boom lifts for the reliable and efficient solution to your aerial work needs.

Aerial Articulated Boom Lift Self Propelled Electric Hydraulic Cherry Picker

Operator Safety Training
Prioritizing operator safety, comprehensive training programs are essential for Articulated Boom lift operators. These programs cover equipment operation, emergency procedures, and fall protection measures. By ensuring operators are well-trained, companies promote a safety-conscious culture and minimize the risk of accidents.
Fall Protection Systems
Articulated Boom lifts incorporate integrated fall protection systems to protect operators working at heights. These systems include harnesses, guardrails, and safety interlocks on the platform. By utilizing these measures, operators can confidently perform tasks while minimizing the risk of falls and injuries.
