Heavy Duty Crossbelt Electro-magnet RCDY Series
Heavy Duty Crossbelt Electro-magnet RCDY Series
Specifications
Place of Origin :
Hunan, China (Mainland)
Brand Name :
SHENGANG MAGNET
Model Number :
RCDY-10(MC23-11075L)
Condition :
New
After-sales Service Provided :
Engineers available to service machinery overseas
Product Name :
Heavy Duty Crossbelt Electro-magnet RCDY Series
Type :
Electromagnetic Type
Color :
Red
Voltage :
DC-220
Power :
4.3kw
Duty Cycle :
TD-100%
Belt Width :
1000mm
Weight :
2050kg
Standard Erection Height :
260mm
Application :
to remove magnetic tramp iron from rare thick material bed and corns
Supply Ability :
70 Piece/Pieces per Month
Packaging Details :
standard export package(Heavy Duty Crossbelt Electro-magnet RCDY Series)
Port :
Shanghai/Shenzhen/Guangzhou
MOQ :
1 Piece/Pieces
Price :
Negotiable
Description

Heavy Duty Crossbelt Electro-magnet RCDY Series

Brief Introduction:

RCDY Series is designed for long term operation shift provided with adjustable hook in its suspending system to adjust erection and installation height conveniently. It produces almost the same magnetic field along its width direction( in size B).

Application:

It is suitable for removing the ferromagnetic materials from thinner bed and lighter pile proportion of the materials as grain, wood shaving, biogases, glass scraps, shear raw materials, chemical material, etc.

Features:

  • Long term working
  • Suspending with hooks (height is adjustable)
  • Equal magnetic field in the direction of width
  • Clean by hand

Technical Data :

model

International

Standard

model

Standard

Erection T(mm)

Conveyer belt width

(mm)

Overall dimension

(mm)

Rated voltage

(v)

Cold state

Consumption

Power

(kw)

Weight

(kg)

Corollary control

panel

(for single separator)

length

A

Width

B

height

H

MC23-5035L

RCDY-4

180

400

500

350

880

110

1.02

268

SSTM-1.5D-D

MC23-7045L

RCDY-6

200

600

700

450

1000

110

1.88

508

SSTM-3.1 D-D

MC23-9060L

RCDY-8

220

800

900

600

1100

110

3.1

1150

SSTM-3.1 D-D

MC23-11075L

RCDY-10

260

1000

1100

750

1300

220

4.3

2050

SSTM-6.2 D-D

MC23-130140L

RCDY-12

360

1200

1300

1400

1500

220

6.8

4200

SSTM-9.3 D-D

MC23-150110L

RCDY-14

380

1400

1500

1100

1700

220

7

4600

SSTM-9.3 D-D

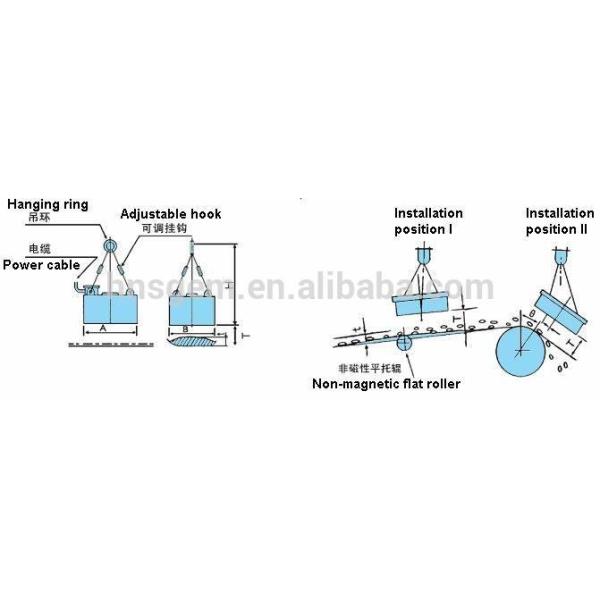

Overall Dimension Drawing:

Heavy Duty Crossbelt Electro-magnet RCDY Series

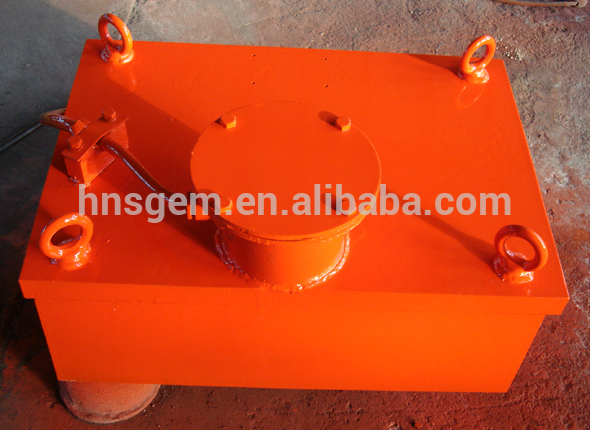

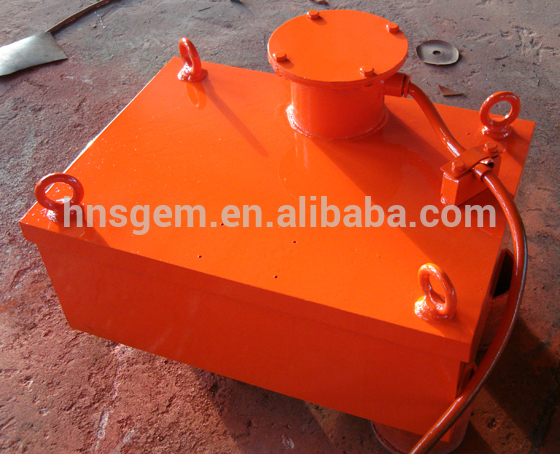

Product Photo:

Heavy Duty Crossbelt Electro-magnet RCDY Series

Heavy Duty Crossbelt Electro-magnet RCDY Series

*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Heavy Duty Crossbelt Electro-magnet RCDY Series

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Heavy Duty Crossbelt Electro-magnet RCDY Series

*Magnetic Seprator Series:

--application for separating the magnetic material from non-magneic material in metallurgical ,mining,power,seaport,ceramic industry,etc.

Heavy Duty Crossbelt Electro-magnet RCDY Series

Heavy Duty Crossbelt Electro-magnet RCDY SeriesHeavy Duty Crossbelt Electro-magnet RCDY Series

Heavy Duty Crossbelt Electro-magnet RCDY Series

(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)
