Rubber Motorized Cable Reel Collector Slip Spring Carbon Brush Bracket
Rubber Motorized Cable Reel Collector Slip Spring Carbon Brush Bracket
Specifications
Brand Name :
SHENGANG
Model Number :
JQD-80-I
Certification :
SGS,CE,ISO,BV
Place of Origin :
Hunan, China (Mainland)
MOQ :
1 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Piece/Pieces per Month 150m torque electric motor cable reel
Delivery Time :
10 days after confirmed the order
Packaging Details :
standard export package(150m torque electric motor cable reel)
Product Name :
100m Motorized Cable Reel Drum
Color :
Blue/Red
Cable Length :
80m
Phase Number/Number of Conductors :
4 Phase
Application :
Industrial Cable Reel for Large Mobile Electrical Apparatus
Material :
Q235 Steel
Type :
Torque Electric Motor Type
Matched Cable Model :
YC3*16+1*6 Sq mm
Weight :
80kg
Port :
Shanghai/Shenzhen/Guangzhou
Description

Auto Retractable Motor Cable Reel Drum for Rubber Power Cable

Description:
Motorized mangetic couple cable reel JQD series are feastured with not only synchronization of the magnetic coupler, but also the harmonization of power.Cable reel and separate mangetic coupler with small size & weight, easy-installation. It is suitable for cable deploying and retracting vertically long distance as well as horizontally synchronously, large used in traveling equipment such as liftig magnet, electric grab, electric flat car and etc.
Features:
-- Adopt magnetic coupler as the synchronous differential mechanism.
-- Widely used for cables deploying and retracting of different traveling equipment synchronously.
-- Long vertical deploying and retracting distance, Max. 150m.
-- Controlling model of cable reel: The motor works when retracting, while stops when deploying.
-- Simple structure, small weight & size, easy-installation and long-life.

Technical Data:

JQC-I Slip Ring Built-in type
ModelD1D2HMass(kg)
JQC-60-I35055029070
JQC-80-I35065035080
JQC-120-I40075039090
JQC-II Slip Ring Built-out type
ModelD1D2WMass(kg)
JQC-100-II4001200190120
JQC-150-II4501300190150
JQC-200-II5301400250170
JQC-250-II5301500250180
JQC-300-II5301500300190

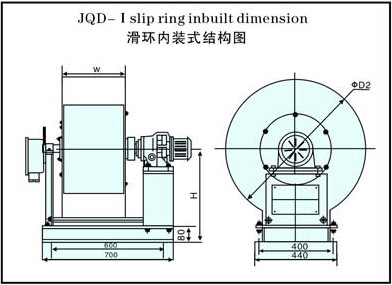

Overall Dimension Drawing:

Rubber Motorized Cable Reel Collector Slip Spring Carbon Brush Bracket

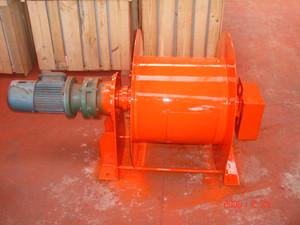

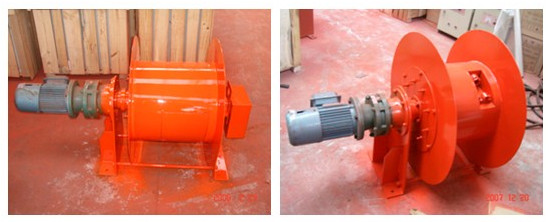

Physical Product Photo:
Rubber Motorized Cable Reel Collector Slip Spring Carbon Brush Bracket

Cable Reel Application:

Rubber Motorized Cable Reel Collector Slip Spring Carbon Brush Bracket

Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..


Rubber Motorized Cable Reel Collector Slip Spring Carbon Brush Bracket
FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.Do you have special requirement about the power types?
spring type / motor powered/hysteresis?

2.What is the cable specification?
cable core number * cross section, coil length of cable, electric current, work voltage?

3. What kind of working site will the cable reel be applied with?

4. What kind of installation patterns you prefer: Vertical coiling or Horizontal coiling?

5. To use flat cable or round cable?

Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!

Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.

Our factory also pass the SGS audit per year with certification issued.

We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!

We also have our own brand as "SHENGANG"
Rubber Motorized Cable Reel Collector Slip Spring Carbon Brush Bracket
Rubber Motorized Cable Reel Collector Slip Spring Carbon Brush Bracket
(fixed iron frame with five-plywoodboard packing to keep crane cable reels with a safety and long-distance transportation and no need fumigation when clear custom )

Quick Response:

We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.

Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
