Electrical Cable Reel Drum for Medium Voltage Power Cables

SPRING TYPE CABLE REEL

Brief Introduction :

We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.

Retractable Electric Cable Reel JTB Series

Features:

• Using spiral springs as power without electric energy consumption to keep reliable in operation
• Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
• Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
• Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service, over hanging type which can coil up much longer cables.

Benifits:

• Easy installation and start of operation
• Corrosion and water proof
• Silver brush would prevent and reduce the noise by conductors friction

Technical Data:

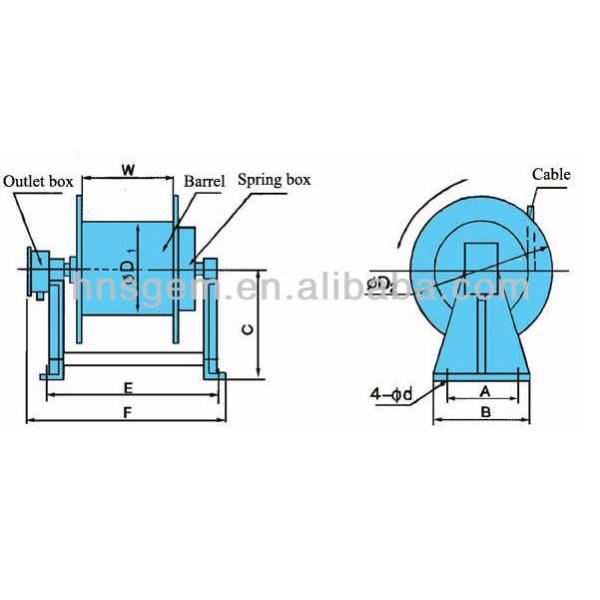

Overall Dimension Drawing:

About Enquiry:

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.Do you have special requirement about the power types? spring type / motor powered/hysteresis?

2.What is the cable specification (core number*cross section , coil length of cable, electric current)?

3. What kind of mobile equipment will the cable reel be applied with? (lifting magnet, crane or others)

4. What kind of installation patterns you prefer? vertical coiling or horizontal coiling?

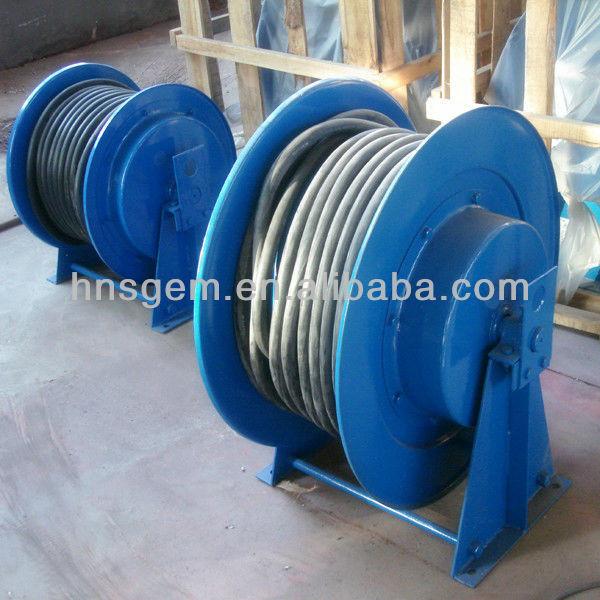

Physical Product Photo :

Standard Export Package for Cable Reel:

(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)

Quick Response:

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.

Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.
