Description:

1. JT Series spring type cable reel is designed by our factory specially. It is a kind of automatic mechanical device which is driven by the spiral springs and using a spring energy storage automatic coiling cable.

2. It is suitable for all kinds of situations where the mobile cable power supply is needed, such as lifting magnet, electromotion flat car, all kinds of crane, hydraulic pressure grab bucket etc. It has the characteristics of easy power-supply, reliable operation etc.

Structures and Features:

-- Using spiral springs as power without electric energy consumption to keep reliable in operation;
-- Using collector slip ring carbon brush bracket to transfer the electric energy steadily and continuously;
-- Equipped with reversible unit/guide pulley to avoid the reel counter-rotating to break the springs;
-- Power supply easily, safety and reliability in operation.
-- Ways of coiling cable: Mid-feed(with guide pulley) or End-feed.

Model Description: JTA85-30-4

"J"------ Cable Reel Series
"T"------ Spring Driven Type
"A"------ Vertical Coiling
"85"------ Maximum Current (A)
"30"------ Cable Length (m)
"4"------Core Number of the Cable

Technical data:

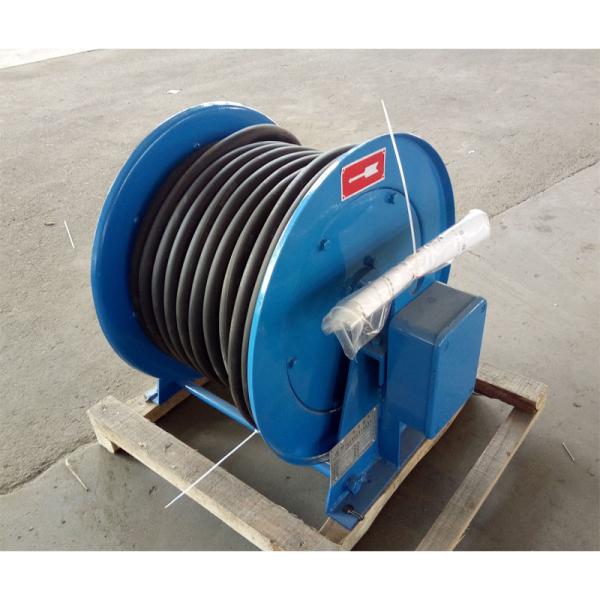

Overall Dimension and product Pictures:

Installation Pattern:

Cable Reel Application:

Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Customers Visit:

Package:

The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.

FAQ:

Q:Why customers choose us?
A:We are a professional cable reel products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.

Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.

Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.

Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.

About Enquiry:

To help you get the best cable reel for your application, we should have the following information:

1. Do you have special requirement about the power types? Spring type / Motor powered type
2. What is the cable specification?
Cable core number × Cross section,Cable outer diameter,coil length of cable?
3. What kind of mobile equipment will the cable reel be applied with?
Lifting electromagnet, all kinds of crane or other apparatus.
4.Do you prefer FOB or CIF price? Kindly inform us destination port.
