Mitsubishi PLC Forward Out Hydraulic Metal Compactor 18.5kW 1000-1200KG/H
Mitsubishi PLC Forward Out Hydraulic Metal Compactor 18.5kW 1000-1200KG/H
Mitsubishi PLC Forward Out Hydraulic Metal Compactor 18.5kW 1000-1200KG/H
Mitsubishi PLC Forward Out Hydraulic Metal Compactor 18.5kW 1000-1200KG/H
Mitsubishi PLC Forward Out Hydraulic Metal Compactor 18.5kW 1000-1200KG/H
Mitsubishi PLC Forward Out Hydraulic Metal Compactor 18.5kW 1000-1200KG/H
Specifications
Brand Name :
WANSHIDA
Model Number :
Y83Q-135B
Certification :
CE and ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 sets/month
Delivery Time :
25 days
Packaging Details :
5000KGS, Seaworthy packing
Press force :
135ton
Press room size :
1300x600x600mm
Bale size :
(50-300)×600×240mm
Motor :
18.5kW
Capacity :
1000-1200KG/h
Max. thickness can be press :
3mm
Product Name :
Scrap Metal Baler
PLC brand :
Mitsubishi
Description

Forward out Hydraulic Metal Compactor Y83Q-135B 18.5kW Produce by WANSHIDA

1. Product Details:

Our Y83Q-135 Forward out Aluminum scrap metal baler pushes the bale out forwardly. It is mainly applied in metal smelting in small and medium scale, as well as waste metal processing and recycling.

Manipulated by hand, this machine specializes in processing the light and thin materials. Its compressed bale is applicable for small processing furnace in the steel plant. The bale is about 240mm high and its length is varied by different quantity of feeding materials.

2. Application:

Y83-135B hydraulic metal baler is suitable for the steel plants, recycling companies, ferrous & non-ferrous metal smelting industry to compress metal scrap(steel parings, waste steel, waste copper & aluminum, waste stainless steel, scrap from discarded automobiles) into acceptable furnace charges of cuboids, cylinders, octagons & other shapes, so as to reduce the cost of transportation & smelting, to speed up furnace charging.


3. Specifications:

Nominal force (kN) 1350
Dimension of compress room (L*W*H) (mm) 1300*600*600
Bale dimension (L*W*H)(mm) (50-300)*600*240
Bale density (kg/m3 ) >1800
Capacity (kg/h) 1800-2500
Single cycle time(s) <150
Power (kW) 18.5
Bale discharging and operation Forward-out, hand valve control


4. Quality: This machine apply to ISO9001: 2000 standard.


5. Service:
1) One year guarantee and lifelong maintenance.
2) Any problem, you can call us directly.

6. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive

7. Application::

Non Ferrous Metals
coppers
Aluminum Cans

Aluminum Windows
Scrap Aluminums
25 Liter Drums
Tin Cans

Steel Shavings
Aluminum Chips
Aluminum Sheets
Aluminum And Copper Wires

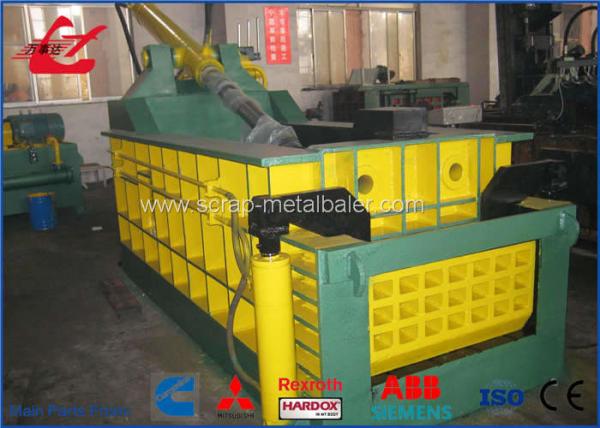

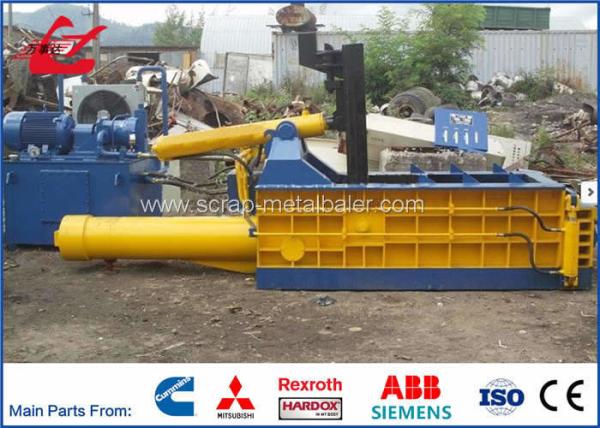

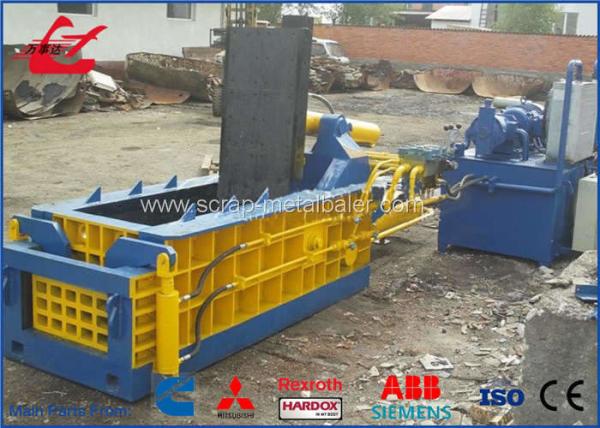

8. Photos:

Mitsubishi PLC Forward Out Hydraulic Metal Compactor 18.5kW 1000-1200KG/HMitsubishi PLC Forward Out Hydraulic Metal Compactor 18.5kW 1000-1200KG/H
