Ultra-High Speed Dimensional And Defects All-in-one Measurement Device
Ultra-High Speed Dimensional And Defects All-in-one Measurement Device
Ultra-High Speed Dimensional And Defects All-in-one Measurement Device
Ultra-High Speed Dimensional And Defects All-in-one Measurement Device
Ultra-High Speed Dimensional And Defects All-in-one Measurement Device
Ultra-High Speed Dimensional And Defects All-in-one Measurement Device
Specifications
Brand Name :
Screate DALA
Model Number :
TL-3000 Series
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, etc.
Delivery Time :
7 - 15 working Days
Packaging Details :
standard packing, as customer demands
Measurement data :
diameter, ovality, width ,thickness ,lumps and necks
Application :
round wire, flat wire, transparent wire, hose and bar etc.
Measurement :
0.03~120mm
Working power source :
24V ±10% 40VA
Communication :
WIFI,RS485 MODBUS RTU,CAN,PROFINET,PROFIBUS,ETHERNET IP
Description

Ultra-High Speed Dimensional And Defects All-in-one Measurement Device


Measurement Principle

When he object is caught by laser beam passed through lens, a bright and dark area will be formed on CCD,then the object dimension will be accurately calculated through software analysis and calculation.
Ultra-High Speed Dimensional And Defects All-in-one Measurement Device

Defect image display function, reducing the trouble some of finding defects

Featuring an incredibly short exposure time, F2010-k excels at capturing object images without any blur or shadow, ensuring precise measurement accuracy.

Ultra-High Speed Dimensional And Defects All-in-one Measurement Device

Applications

Ultra-High Speed Dimensional And Defects All-in-one Measurement Device

Technical Specification

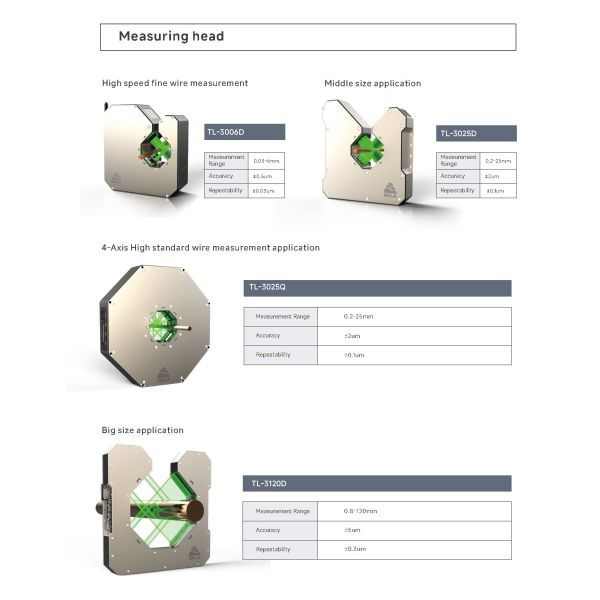

Model TL-3006D TL-3025D TL-3025Q TL-3120D
Axis 2-axis 2-axis 4-axis 2-axis
Measurement range 0.03~6mm 0.2~25mm 0.2~25mm 0.8~120mm
Repeatability ±0.03μm(1) ±0.1μm(2) ±0.1μm(2) ±0.3μm(3)
Accuracy ±0.5μm(4) ±2μm(5) ±2μm(5) ±5μm(6)
Sampling frequency 46KHz/Axis 46KHz/Axis 46KHz/Axis 20KHz/Axis
Size(L*W*H) 180*198*60mm 270*296*60mm 380*380*68mm 507*492*65mm
Application round wire, flat wire, transparent wire, hose and bar etc.
Measurement data diameter, ovality, width ,thickness ,lumps and necks
Power supply 24V ±5%,Max. 75W
Display LED
Communication interface

Standard:RS485 MODBUS RTU,CAN,WIFI

Option:PROFIBUS,PROFINET,EtherNet/IP,EtherCAT,etc.
Electrical port

Default:Digital output (relay), Digital input,Analog input encoder pulse input port.

Option: PI feedback control, Analog output(7)
Environmental adaptability Working Tem. 0~50℃
Working Env. 20~85%RH(No condensation)
Brightness incandescent light, fluorescent lamp 3000lx or less
Vibrating resistance 10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours
Impact resistance 10G/6ms
IP grade IP65
Data collection analysis DMS1000 measurement software system,DS14 ZT display and control system
Out-of-tolerance alar Support
Transparent mode Support

NOTE:

(1)Set average number of times to 1150 and measure the ±2σ value of the round standard rod of diameter 10mm at the measurement area center.

(2)For object diameter of 10mm, the measurement accuracy is ±2um when it moves in the center of 8*8mm；

(3)PI feedback control and analog out options shall be ordered at placing device order.

(4) Move φ1mm round rod in the measurement area of 2*2mm and conduct measurement error;

(5) Move φ10mm round rod in the measurement area of 8*8mm and conduct measurement error;

(6) Move φ40mm round rod in the measurement area of 40*40mm and conduct measurement error;

(7) Industrial communication module and PI feedback control module is installed before ex-factory,so notify the demand before placing an order.
