50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
Specifications
Brand Name :
Anping County Xinlu Wire Mesh Products Co.,Ltd
Model Number :
XL - Wedge Wire Screen Panel - 024
Certification :
Inside test report
Place of Origin :
Anping County, Hebei Province, China
MOQ :
1pcs
Price :
80-160usd/m2, Negotiable according to the specification
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300m2/month
Delivery Time :
6-8days
Packaging Details :
wood case, pallet
Product name :
Johnson Wedge Wire Static Screen Panel
Material :
ss316L
Profile wire size :
1x2mm, customized
Support rods :
2x3mm
width :
1m
Slot :
0.05mm
Frame :
customized
Usage :
bear filter
Type :
flat panel, sieve bend screen, Filter Elements, Filter Cylinder, Filter Disc, Flat screen, Wire Wrapped Well Screen Cylinders ,Wedge Wire Panels
Surface :
Acid washing
tag :
ss316L wedge wire screen panels , acid washing wedge wire screen panels , 0.05 slot wedge wire panels
Description

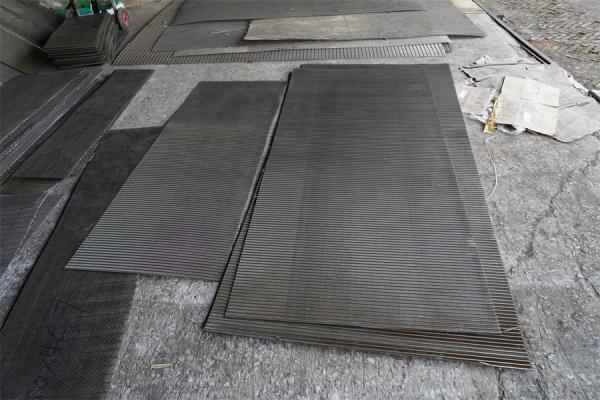

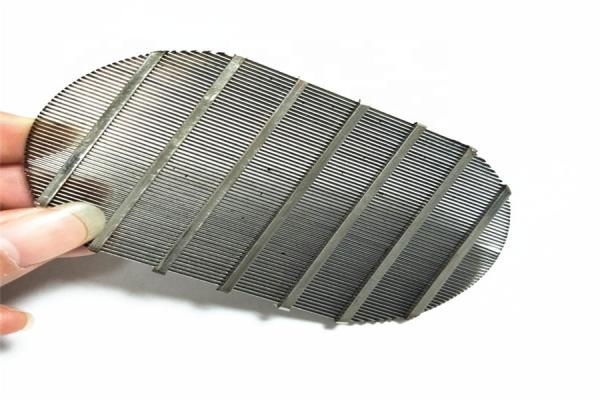

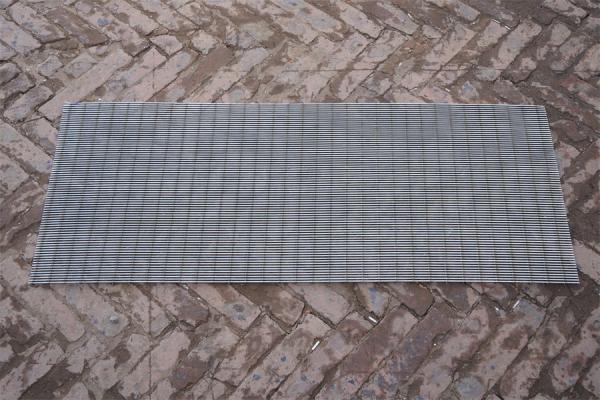

50 Micron Johnson SS316L Wedge Wire Static Screen Panels For Beer Filter

Wedge wire screen panel, flat v wire panel, Johnson screen plate, profile wire screen panel, seive bend screen, static screen, wedge wire grating, support grids

Wedge Wire Static Screen Panel Quick Details:

1. Material: ss316L

2. Slot/ gap / aperture: 0.05mm = 50micron

3. profile v wire: 1x2mm

4. support wire: 2x3mm

5. weight: approximately 8kg/m2

Wedge wire screen panels are manufactured by welding profile wires to support rods at an angle of 90 degrees. A precise slot is achieved by applying modern welding technology on profile wires and support rods. The result is a rigid screen construction capable of withstanding heavy loads with a great resistance.

Wedge Wire Screen Panel
Slot size (mm) 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request.
Material Stainless steel 205, 304, 304L, 316L ,321, Low carbon, Duplex stainless steel, etc.)
Length Upto 6 meters
Width customized
Frame 3x10mm, 5x20mm, customized
Other sizes available on request.

Advantage

Reduce energy consumption and increase water flow.

Reduce erosion of entry surfaces and increase well life.

Allow a uniform and efficient well development.

Reduce significantly potential pump damage and subsequent maintenance costs.

INNOVATIVE SOLUTIONS OF TECHNOLOGY ALLOW:
+ to control quality of welding.
+ to use various profile wires in one screen.
+ to design various slot sizes in one screen
+ to design various support rods in one screen
+ to design various distances between supports in one screen
+ to gain superior flatness of sieves
(no corrugation of working wires between support rods)
+ Slot: ≥ 0.025 mm
+ Maximum size: 3500 × 4000 mm

Profile Wire of Wedge Wire Screen Panel

Profile Wire Width Height Material
10SR 0.75mm 1.5mm 304 316 316L,etc
12SR 1.0mm 2.0mm 304 316 316L,etc
18SR 1.5mm 2.9mm 304 316 316L,etc

​

Support Wire of Wedge Wire Screen Panel

Profile Wire Width Height Material
Q22 2.0mm 2.3mm 304 316 316L,etc
Q25 2.0mm 3.0mm 304 316 316L,etc

50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter

WEDGE WIRE SCREEN PANEL STRUCTURE
TECHNICAL PARAMETERS
Surface profile: The v-shaped profile helps reduce the risk of screen plugging associated with particles becoming lodged between wires, while providing self-cleaning action and increasing backwashing efficiency.
Support profile: The support profile of wedge wire screen can be triangle wires, flat bars and wedge wires to provide strong

Wedge Wire ScreenPanel BENEFITS
Flat surface
Excellent filtering performance
Accurate distance between supporting profiles
Welded production process for solid and strong structure
Good mechanical properties
High strength
High load capacity
Corrosion and rust resistance
Temperature resistance
Chemical stability

50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter

50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter

50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter

50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter

Custom Wedge Wire Screen Solutions To Meet Your Specific Filteration Demands
wedge wire screen products are designed to provide solutions for a wide range of markets across the world.
We have many years of experience in every field of application. Whether you fit one of our major industries or a smaller, niche market, we have the manufacturing expertise and flexibility to provide quality materials for diverse and demanding applications

50 Micron Johnson SS316L Static Wedge Wire Screen Panel For Beer Filter
