SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant
Specifications
Brand Name :
Anping County Xinlu Wire Mesh Products Co.,Ltd
Model Number :
XL - Water Filter Nozzles - 40
Certification :
CO, FORM E
Place of Origin :
Anping County, Hebei Province, China
MOQ :
4pcs
Price :
Negotiable according to the specification
Payment Terms :
T/T
Supply Ability :
1000pcs/20days
Delivery Time :
8-10days
Packaging Details :
wood case
Name :
stainless steel wedge wire johnson water filter nozzle
Material :
SS316L, 304, 321, Duplex stainless steel, Hastelloy
Diameter :
45mm, or customized
filter height L1 :
25-80mm
Slot :
0.2mm
Over Length :
90-130mm
Wedge Wire :
profile wire: 1.5x2mm, support wire:1.8x2.5mm
End Cap :
with Bulb or flat
End Connection :
G3/4", BSP, M24
Accessories :
One stainless steel nuts, One rubber gaskets, one stainless gasket
Weight :
0.2-0.5kg/pcs
Application :
Filters,Water treatment
Type :
filter nozzle
Used :
Water Input Device, Water Distributor And Resin Trans
flow Rate :
0.5 Ton, 1 Ton
High light tag :
45mm wedge wire water filter nozzles ; slot 0.25mm water filter nozzles ; M24 Johnson strainer nozzle
Description

Sugar Mill Strainer Screen Filter Nozzle Of Water And Waste Water Treatmetn Plant

Water Filter Nozzle's other called:

Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.

Stainless Steel Wedge Wire Johnson Water Filer Nozzle Product Description:

Product Name Johnson Water Filter Nozzle
Material Stainless Steel
Grade 304
Slot size 0.3mm
Diameter 45mm
Screen Lenth 50 - 55 mm
Total Length 115 - 110 mm
Thread Size 1 -1/4 " , 32 mm
Nutsert 1 PCS, 2 PCS
Gasket 1 PCS steel gasket,1 PCS rubber mat


Characteristic:

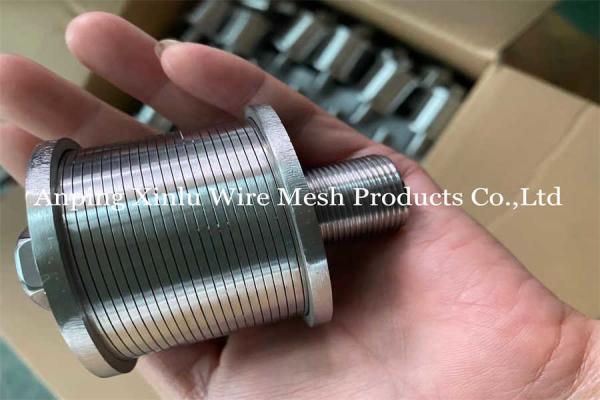

The water screen nozzle is welded with Johnson well screen, thread pipe and steel panel through special welding process. The Johnson well screen is the profile wedge wire screen ,the wire and the support rod is V shape , so the screen filter surface outside is smaller than inside, so that the screen nozzle is not easy to jam. The thread pipe is made by international standard.1 “,1 1/4 “, 2 1/4 “ and so on.

Advantages:

Strong and durable, with long service life.
The gap is even, no leakage of resin, no running material.
High opening rate can meet the requirement of large flow.
The structure is varied and meet different design requirements.

Use:

Water screen nozzle is American technology.water treatment, chemical,

Characteristic stainless steel water filter nozzle:


Stainless steel v / wedge - shaped wire water filter nozzle, usually with high quality stainless steel 304, 316L and other materials to ensure strong product structure and product bearing capacity.

SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant

Model Ton Slot Opening Size Dimensions Flow area with 0.2mm slot opening (mm2)
D H(L1) L M
FY-XL-DT-45-A 0.5 0.2-0.5 45 25 90 25 280
FY-XL-DT-45-B 0.2-0.5 45 35 100 25 380
FY-XL-DT-45-C 0.2-0.5 45 45 110 25 550
FY-XL-DT-45-D 0.2-0.5 45 35 55 25 380
FY-XL-DT-45-E 0.2-0.5 45 45 65 25 550
FY-XL-DT-53-A 1.0 0.2-0.5 53 35 100 25 450
FY-XL-DT-53-B 0.2-0.5 53 45 110 25 580
FY-XL-DT-53-C 1.5 0.2-0.5 53 55 120 32 700
FY-XL-DT-57-A 2.0 0.2-0.5 57 35 100 32 530
FY-XL-DT-57-B 0.2-0.5 57 45 110 32 680
FY-XL-DT-57-C 0.2-0.5 57 55 120 32 830
FY-XL-DT-70-A 3.0 0.2-0.5 70 40 105 32 650
FY-XL-DT-70-B 5.0 0.2-0.5 70 55 115 32 810

Note: Our Nozzles are most commonly made with 304 or 316L stainless steel.
You can choose a rubber gasket, lockable nut on the nozzle.
Fitting can be NPT thread, M20 Threaded or Rings

OEM service:

Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.

2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.

3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.

4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.

5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.

SS316L Screen Johnson Water Filter Nozzles For Sugar Mill PlantSS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant

SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant

SS316L Screen Johnson Water Filter Nozzles For Sugar Mill Plant

Why choose us ?

1. We are the professional manufacturer.

2. We can give you the best quality products with competitive price.

3. Professional sales team can give you feedback within 24 hours.

4. We offer 12 months excellent after-sale service.

5. We offer customized service.

6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.

High Light Tags: oem 0.25mm stainless steel filter nozzles ; 1Tons water filter nozzles ; 316l 53mm stainless steel filter nozzles
