Specifications
Brand Name :
Anping XinLu Wire Mesh Products Co.,Ltd
Model Number :
XL- Sand Control Screens - 030
Certification :
ISO
Place of Origin :
Anping County, Hebei Province, China
MOQ :
4pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800pcs / 15days
Delivery Time :
5-7days
Packaging Details :
Air bubble film, wooden, pallet; plastic film ,340 pcs per 20GP container
Filter Name :
Johnson Sand Control Screen
Material :
ss304
long :
1000-3000mm
Outdiameter :
30-650mm
V Wire :
3*4.6mm Vee shaped
Support rod : :
3.2*6mm Vee shaped
Surface treatment :
Electrolytic polishing , Pickling and polishing
Usage :
Water well filter
End Joint :
Male female threaded
Feature :
Corrosion Resistance
Welded type :
v wire wrapped welded
tag :
SS304 Sand Control Screens ; 1.0mm Slot Sand Control Screens ; female threaded Sand Control Screens
Description

SS 304 Johnson Sand Control Screen For Infilteration Gallery At Intake Well

SS 304 Johnson Sand Control Screen For Infilteration Gallery At Intake Well

Xinlu Wedge Wire Screen Company products are : Johnson Sand Control Screen, Johnson screeen, Water well screen, Rod based wire wrapped screen, Wedge wire screen pipe, Reverse wedge wire screen, Screen nozzle, Water and gas strainer, Sieve bend screen, Arc screen ,Wound Screen,Sand control screen is also called Water wire screen, wedge wire screen,wedge wire filter screen,Johnson screen, wire wrapped screen, wound screen, johnson wire screen, johnson well screen, johnson screen pipe, johnson screen tube, johnson filter screen, oil well screen, continuous slot screen. etc.

Johnson Sand Control Screen For Infilteration Gallery At Intake WellSize:

Materials : AISI 304

Diameter:219mm

Slot:1.0mm

Wrap wire:3x4.6mm Vee wire

Support rod:3.2x6mm Vee wire

Ends:Male/female threaded

Johnson Sand Control Screen Wire Size Details:

  • Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
  • Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.

Johnson Sand Control Screen Wire SizeSpecification:

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tensile

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

(Width x height)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.2x3.5mm ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5 2.2x3.5mm ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.2x3.5mm ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2x6.0mm ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3x3.5mm ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0x5.0mm ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2x6.0mm ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.2x3.5mm ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0x4.6mm ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2x6.0mm ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0x5.0mm ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8 3.0x5.0mm ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5 3.0x5.0mm ø4.0MM×54

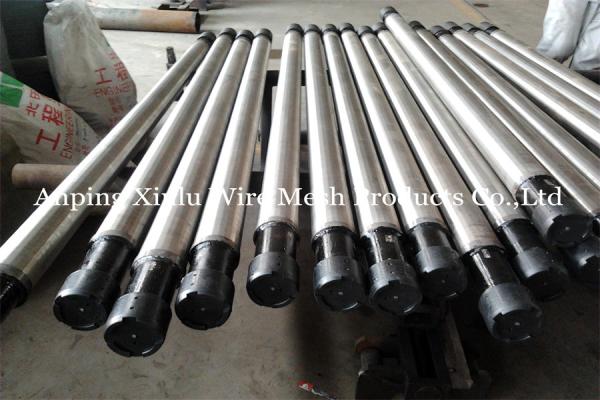

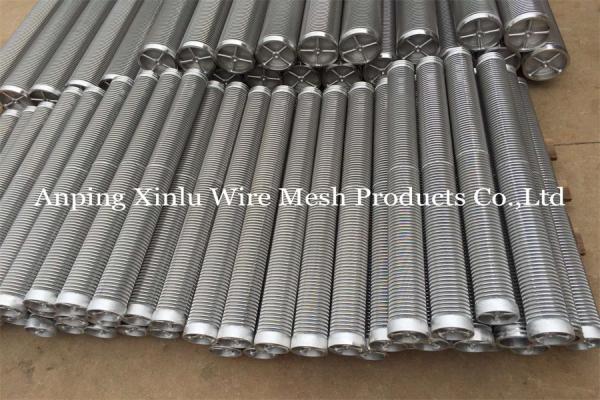

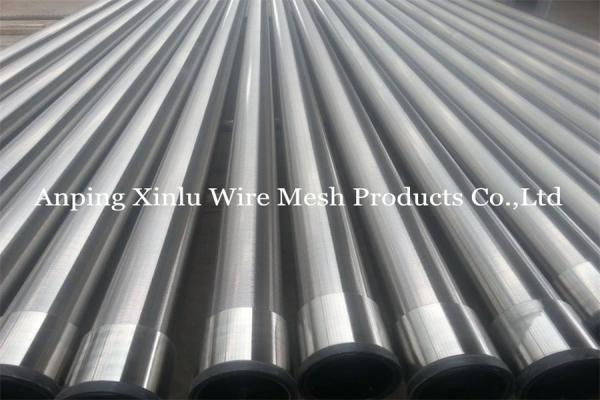

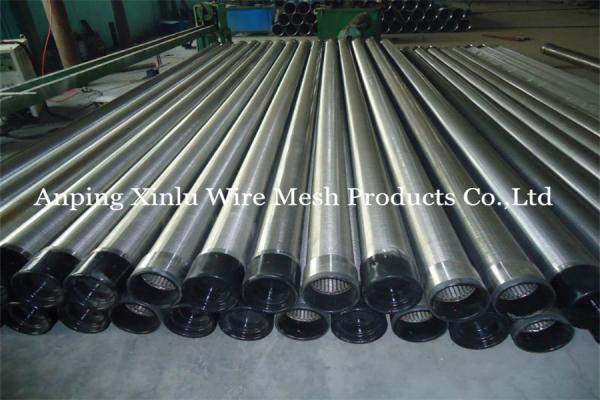

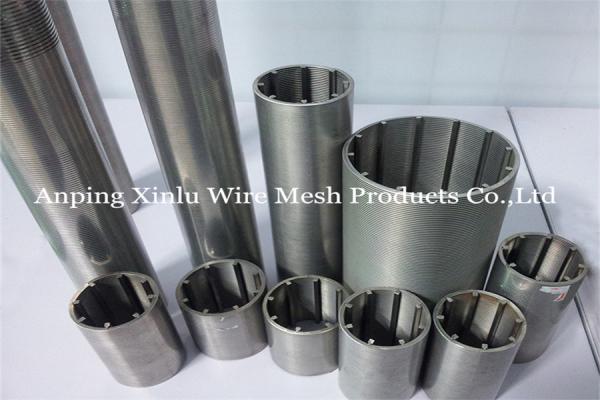

Johnson Sand Control Screen Wire Size Photos and Package:

SS 304 Johnson Sand Control Screens For Infilteration Gallery Intake WellSS 304 Johnson Sand Control Screens For Infilteration Gallery Intake WellSS 304 Johnson Sand Control Screens For Infilteration Gallery Intake WellSS 304 Johnson Sand Control Screens For Infilteration Gallery Intake Well

SS 304 Johnson Sand Control Screens For Infilteration Gallery Intake Well

SS 304 Johnson Sand Control Screens For Infilteration Gallery Intake Well

SS 304 Johnson Sand Control Screens For Infilteration Gallery Intake Well

FAQ

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q:To quote,what’s information needed?

A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.

Q: How long is your delivery time?

A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.

Q: Could you provide free sample?

A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.

Q: What is your terms of payment?

A: 30% T/T as deposit,the balance before shipment.

Q:How to confirm the quality about your products?

A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.

Q: How do you make our business long-term and good relationship?

A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.

Product Tags: SS304 Sand Control Screens ; 1.0mm Slot Sand Control Screens ; female threaded Sand Control Screens
