Specifications
Brand Name :
Anping XinLu Wire Mesh Products Co.,Ltd
Model Number :
XL- V Wire Screen Pipe - 035
Certification :
ISO
Place of Origin :
Anping County, Hebei Province, China
MOQ :
4pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800pcs / 15days
Delivery Time :
5-7days
Packaging Details :
wooden, pallet
Filter Name :
Johnson V Wire Water Well Screen Pipe
Material :
stainless steel 316L
long :
2900mm
Diameter :
4-1/2" (114.3mm)
V Wire :
2.2x3.5mm
Round Support rod : :
ø3.8mm
Surface :
Electrolytic polishing, pickling polishing
Usage :
In water well
End Joint :
Bevel welded rings
Feature :
Corrosion Resistance
Welded type :
Full welded
tag :
4-1/2" v wire wrapped pipe ; corrosion resistance v wire wrapped screen pipe ; corrosion resistance well screen pipe
Description

4-1/2" Slot 40 V Wire Wrapped Pipe , Well Screen Pipe Corrosion Resistance

4-1/2" Johnson V Wire Wrapped Water Wire Screens For Sand Control

Water wire screen,also called wedge wire screen pipe,wedge wire filter screen,Johnson screen pipe, johnon wire screen, johnson screen tube, johnson filter tube, wedge wire strainer pipe, wire wrapped screen, wound screen, slotted screen.


Water wire screens are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.

Specifications of Johnson V Wire Water Wire Screen Pipe:

  • Material: stainless steel wire or galvanized wire.
  • Surface profile: triangle wire.
  • Support profile: triangle wire, round bar and wedge wire.
  • Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
  • Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
  • Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.

Johnson V Wire Water Wire Screen Pipe Advantages:


1. Its uniform filter slots and high precision ensure the effective retention of filter medium.
2. Water wire screen has a larger circulation area compared with other screens.
3. The tiny gaps between wedge wires form a smooth wedge-shaped cross section, which makes sure no dead ends, excellent resistance to block and easy to backwash (blow wash).
4. Water wire screen has high mechanical strength and can withstand high pressure drop.
5. Water wire screen is made of superior stainless steel wires (Such as: AISI 304 and 316L) AND low carbon galvanized with strong corrosion resistance and high temperature resistance performances and can totally adapt to various harsh environment.
6. Water wire screen adapts to different forms of fluid direction with high strength, large flow and high pressure resistance performance.
7. Water wire screen maintains stable filtration accuracy and can be reused repeatedly and work reliably.


Johnson V Wire Water Wire Screen Pipe Information:

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.2x3.5 (Widthxheight) ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5

2.2x3.5

(WxH)

 ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8

2.2x3.5

(W x H)

 ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8

2.2x3.5

(W x H)

 ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45

3.2x6.0

(W x H)

 ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9

2.3x3.5

(W x H)

 ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2

3.0x5.0

(W x H)

 ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46

3.2x6.0

(W x H)

 ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9

2.2x3.5

(W x H)

 ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5

3.0x4.6

(W x H)

 ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48

3.2x6.0

(W x H)

 ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2

3.0x5.0

(W x H)

 ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8

3.0x5.0

(W x H)

 ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5

3.0x5.0

(W x H)

 ø4.0MM×54

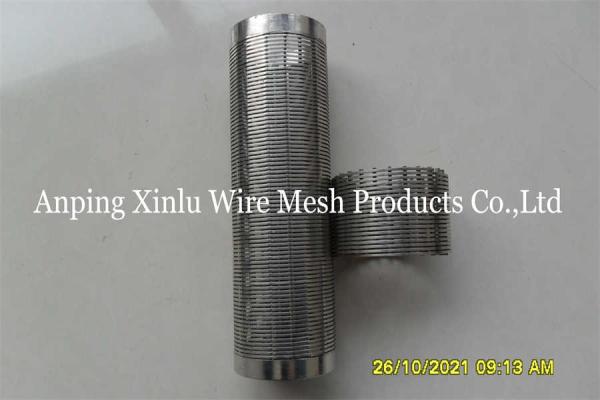

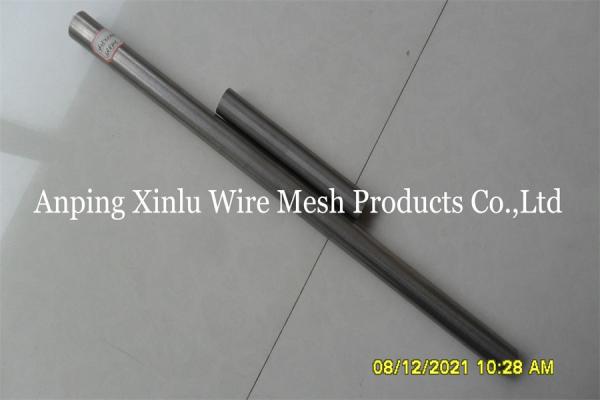

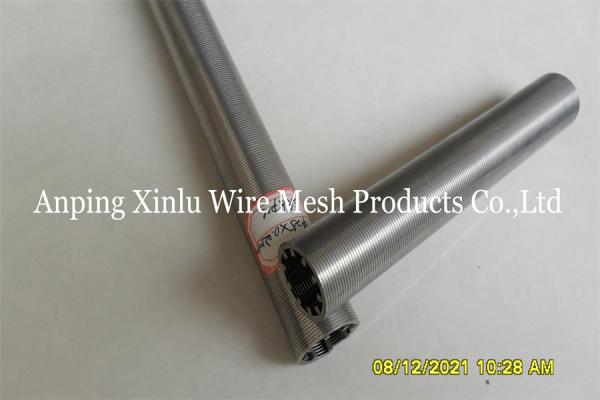

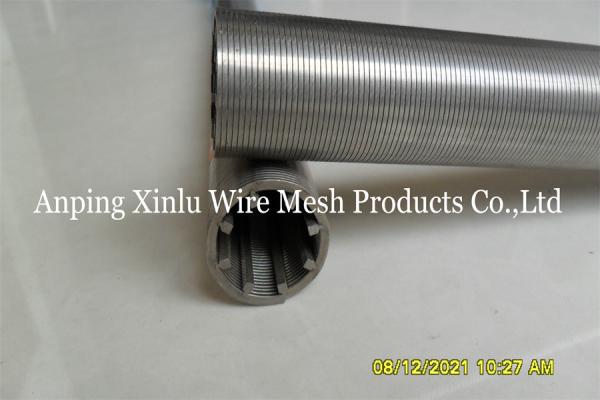

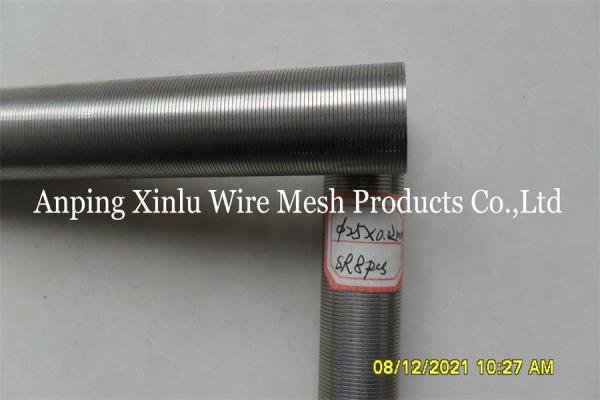

Johnson V Wire Water Wire Screen Pipe Pictures:

4-1/24-1/24-1/24-1/2

Johnson V Wire Water Wire Screen Pipe Package4-1/2

4-1/2

4-1/2

4-1/2

Product Tags: 4-1/2" v wire wrapped pipe ; corrosion resistance v wire wrapped screen pipe ; corrosion resistance well screen pipe
