Specifications
Brand Name :
Anping XinLu Wire Mesh Products Co.,Ltd
Model Number :
XL- V Wire Screen Pipe - 032
Certification :
ISO
Place of Origin :
Anping County, Hebei Province, China
MOQ :
4pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
800pcs / 15days
Delivery Time :
5-7days
Packaging Details :
wooden, pallet
Filter Name :
Johnson V Well Screen Pipe
Material :
stainless steel 304L, 304 316L 321
long :
normal 2.9m, 5.8m
OD :
6-5/8" (168mm)
v wire :
2.3x3.5mm
Usage :
In water or oil well
End connection :
Threaded
tag :
continuous slot johnson wire screen flow rate johnson wire screen downhole slotted johnson wire screen tube
Description

Stainless Steel 304 Drilling Water or Oil Well 6-5/8" Johnson V Wire Screen Pipe

V Wire Johnson Well Screen Pipe Introduction​:

V Wire Johnson Well Screen Pipe also be named Water well screen,Johnson screen,Wedge wire screen,Vee-Wire screen pipe,Rod based continuous slot Vee-wire screen tube,Wound screen,Water filter, Screen cylinders, slot wire screen tube , well screen , strainer screens,oil screen tube etc

V Wire Johnson Well Screen Pipe is made up of Vee-shaped wrapped wire and round rod in each intersection welded together.

Accurate slot and high filtration precision.

V Wire Johnson Well Screen Pipe Normal Sizes:

Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

 End connection
2", 3", 4", 5", 6",8", 9", 10", 12", 14", 16" 2900,5800 in usual 0.5, 0.63, 0.75,1.0 Welded rings, male/female threaded coupling,flange,closed up etc.

Explanation

 Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 29mm- ￠ 1300mm, the length from the 100mm-6000mm series screen pipe

V Wire Johnson Well Screen Pipe Advantages:


1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2.A V shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3.A uniform and efficient well development due to the continuous slot opening.

4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5.Ladder-like wire welded screens have the features of easy back washing, last long, safety and reliability as well as low comprehensive cost.


V Wire Johnson Well Screen Pipe Information:

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.2x3.5 (Widthxheight) ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5

2.2x3.5

(WxH)

 ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8

2.2x3.5

(W x H)

 ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8

2.2x3.5

(W x H)

 ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45

3.2x6.0

(W x H)

 ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9

2.3x3.5

(W x H)

 ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2

3.0x5.0

(W x H)

 ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46

3.2x6.0

(W x H)

 ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9

2.2x3.5

(W x H)

 ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5

3.0x4.6

(W x H)

 ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48

3.2x6.0

(W x H)

 ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2

3.0x5.0

(W x H)

 ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8

3.0x5.0

(W x H)

 ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5

3.0x5.0

(W x H)

 ø4.0MM×54

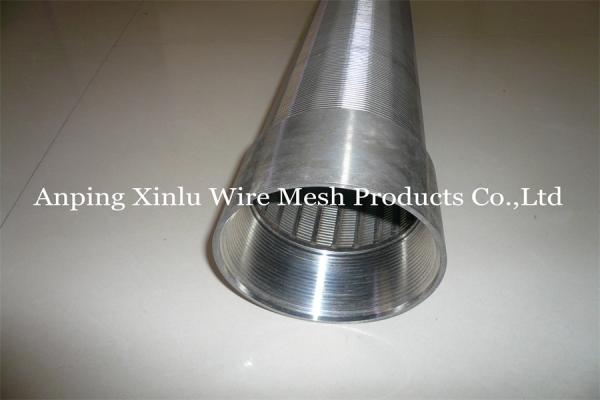

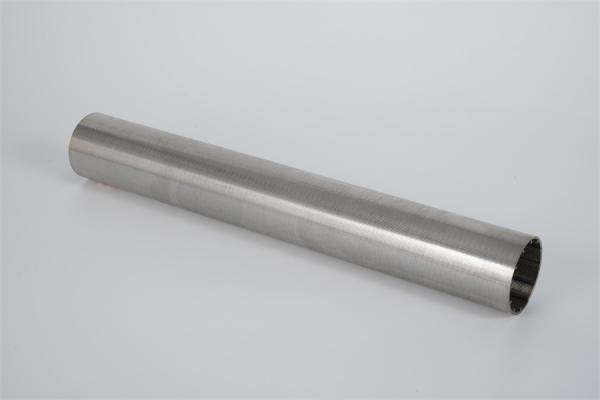

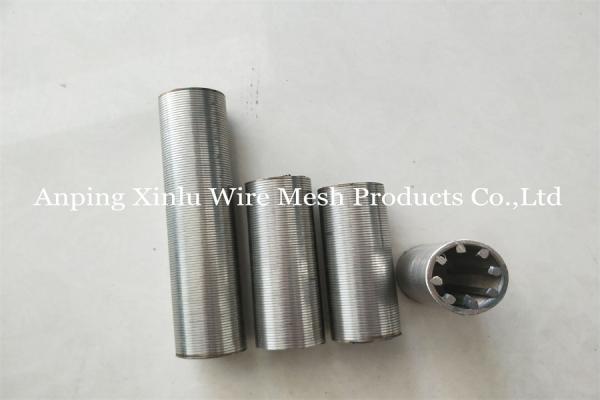

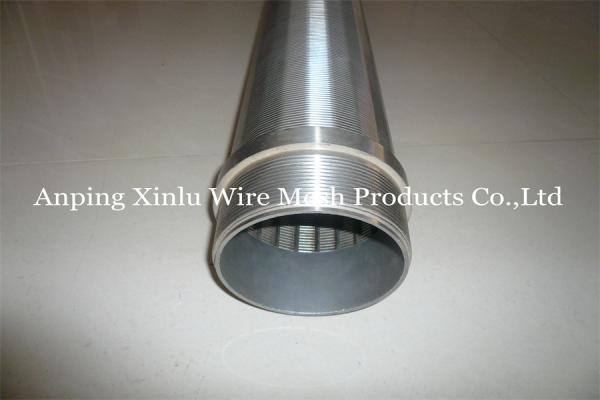

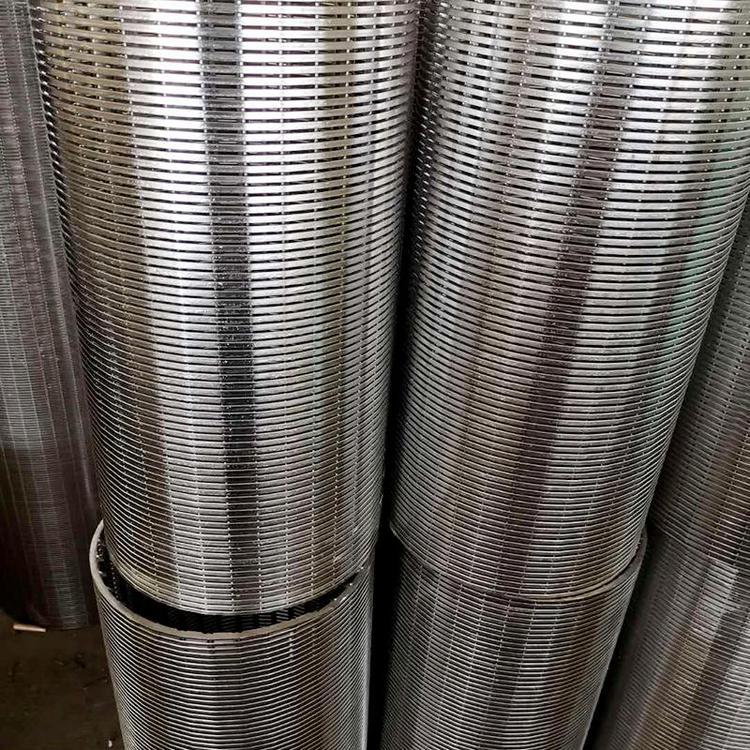

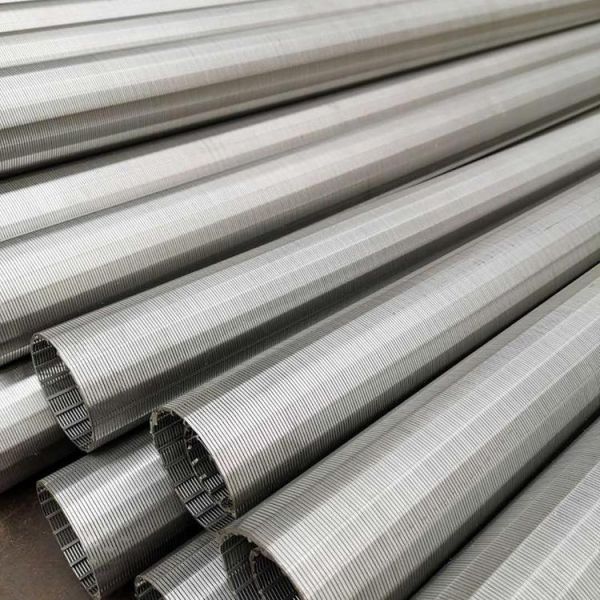

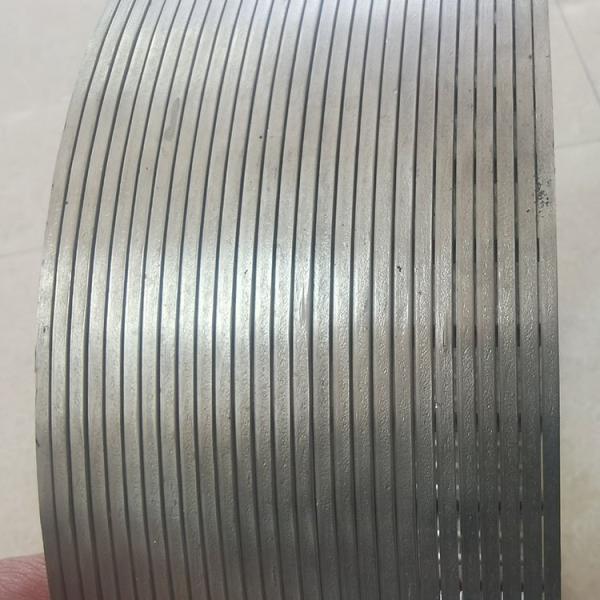

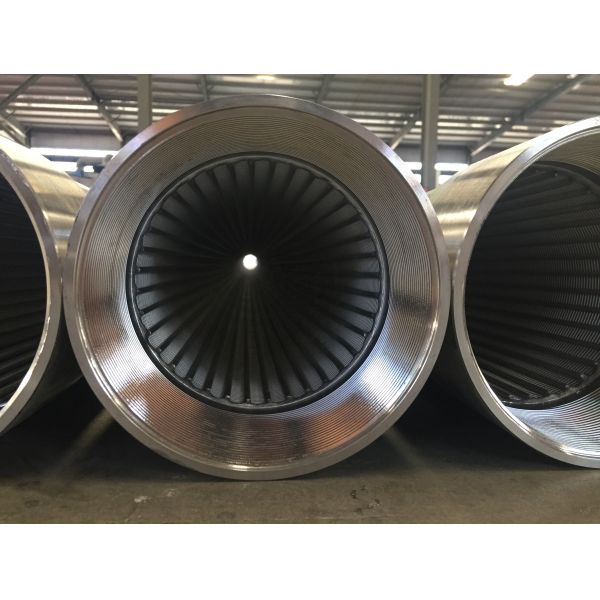

V Wire Johnson Well Screen Pipe Pictures:

Ss304 168mm Johnson V Wire Screen Pipe For Drilling Oil WellSs304 168mm Johnson V Wire Screen Pipe For Drilling Oil WellSs304 168mm Johnson V Wire Screen Pipe For Drilling Oil WellSs304 168mm Johnson V Wire Screen Pipe For Drilling Oil Well

Product Tags: ss304 johnson wire screen ; 6-5/8" johnson wire screen ; downhole slotted vee wire screen tube
