DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
Specifications
Brand Name :
Anping XinLu Wire Mesh Products Co.,Ltd
Model Number :
XL - V Wire Screen Pipe - 029
Certification :
CO
Place of Origin :
Anping County, Hebei Province, China
MOQ :
3pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100pcs / 15days
Delivery Time :
5-7days
Packaging Details :
wooden, pallet
Product Name :
DN200 Filter Slot 35-100Mesh Johnson Type Vee Wire Screen Pipe
Diameter :
200mm-219mm
welded style :
v wire / wedge wire wrapped full Welded
Material :
stainless steel 304, or 205, 304L, 316L ,321, Duplex stainless steel, etc.
V Wire Size :
#63, #93, #118, #121,#130
Apply for :
water well, oil well drilling, etc
End connection :
Wleded rings, Threaded Male and Female Coupling, API STC, BSP, G, NPT
Advantage :
Non-magnetic, Corrosion Resistance, Non-clogging,Easy Installation
Description

DN200 Filter Slot 35-100Mesh Johnson Type Vee Wire Screen Pipe

stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.

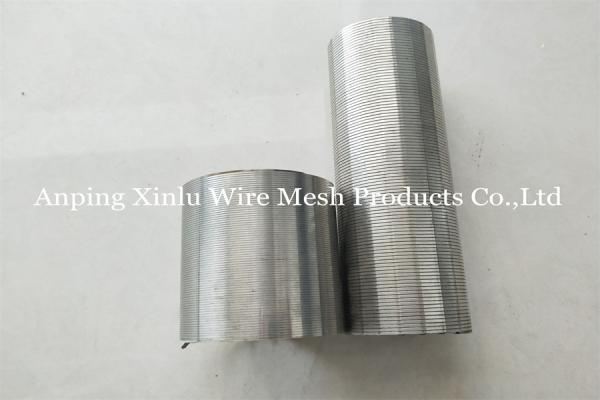

Johnson Type V wire screens

Johnson Type Screen mostly refers to V - Wire Water Well Screen.

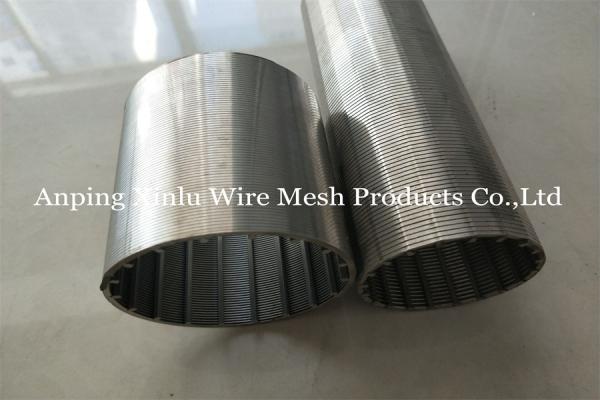

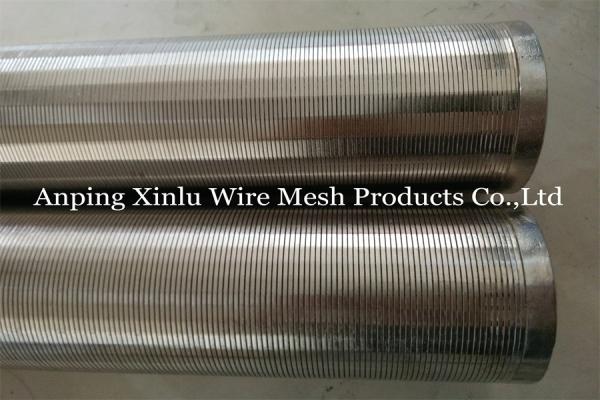

Johnson Type screen is manufactured with V-shaped profile wire which is spirally wound
around a cage of longitudinal support rods.
Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.
This spacing gives passage for water to enter.
The entire process is completed on fully computerized machines.

Typical Specifications:
Diameter Available:
1.5", 2", 3", 4", 6", 8", 10", 12", 14"

Slot (mm):
0.15,0.25, 0.50, 0.75,1.00,1.50,2.00,3.00

Lengths
6 Mts. & 3 Mts.

Material

Low Carbon Galvanized Steel ( LCG ) and Stainless Steel ( SS-304 )

DN200 Filter Slot 35-100Mesh Johnson Type Vee Wire Screen Pipe Specification:

Slot size (mm) 0.03,0.10, 0.15, 0.20, 0.25, 0.30…… 800mm also achieved upon request.
Material Stainless steel 205, 304, 304L, 316L ,321, Low carbon, Duplex stainless steel, etc.)
Length Upto 6 meters
Diameter 24-2000mm

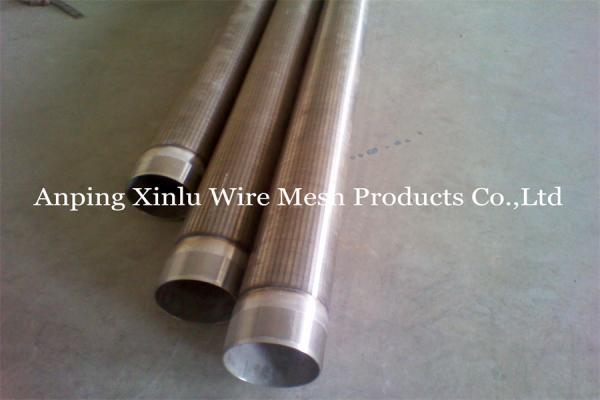

Screen ends Plain beveled ends, male/female threaded, flange, close up.
Other sizes available on request.

Advantage

Reduce energy consumption and increase water flow.

Reduce erosion of entry surfaces and increase well life.

Allow a uniform and efficient well development.

Reduce significantly potential pump damage and subsequent maintenance costs.

OEM service:


We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet

---------------------------------------------------------------------------------------------------------------

Anping XinLu wire mesh products co.,ltd, it is a manufacturer and exporter of wedge wire screen products.

-----------------------------------------------------------------------------------------------------------------------------------------------

FAQ

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: To quote,what’s information needed?

A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.

Q: How long is your delivery time?

A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.

Q: Could you provide free sample?

A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.

Q: What is your terms of payment?

A: 30% T/T as deposit,the balance before shipment.

Q: How to confirm the quality about your products?

A: During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.

Q: How do you make our business long-term and good relationship?

A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.

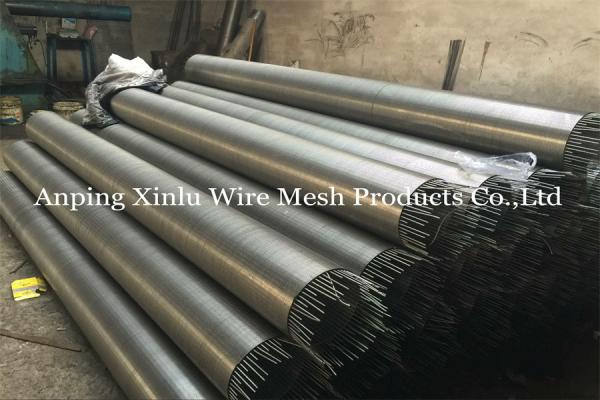

V / Wedge Wire Screen Pipe Production Process

DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe

DN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen PipeDN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen PipeDN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen PipeDN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen PipeDN200 Filter Slot 35-100 Mesh Johnson Type Vee Wire Screen Pipe
