Specifications
Brand Name :
Anping County Xinlu Wire Mesh Products Co.,Ltd
Model Number :
XL - Water Well Screen - 031
Certification :
CO
Place of Origin :
Anping County, Hebei Province, China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs/20days
Delivery Time :
3-5days
Packaging Details :
wood case, pallet,container
Another name :
Groundwater Stainless Steel 304 Water Well Johnson Screen Tube Slots 0.06"
stainless steel :
type ss304
End joints :
threaded male and female
Filter type :
screen pipe, screen tube, filter element, strainer pipe
Surface treatment :
polishing
advantage :
Anti Corrosion, easy cleaning, Easy Installation
Weave style :
V wire or Wedge Wire Wrapped
Well Deep :
50-600m
Description

Groundwater Stainless Steel 304 Water Pump Johnson Screen Tube Slots 0.06" For Deep Well

wedge wire screens, v shaped wire welded stainless steel water well screens, low carbon galvanized water well screen, Johnson screen tube, johnson screen pipe, johnson well screen, johnson wire screen, johnson filter screen, johnson v wire screens,v wire slot tube, wire wrapped screen pipe, oil well screens, dewatering well screen, perfect roundness screen tube, profile wire screen pipe, reverse rolled screen tube, spiral screen tube, screen cylinders, rod based continous slot screens, sand conrol well screen, wire wound screen pipe, stainless steel filter elements, wedge wire roll screen, stainless steel strainer pipe

Water Wire screen pipe is also be named dewatering screen pipe, Stainless Steel Filter screen, V Wire Screen, Johnson type screen tube, Wound screen tube, Wire wrapped screen pipe, Wedge wire screen pipe, Sand Control Slotted screen.

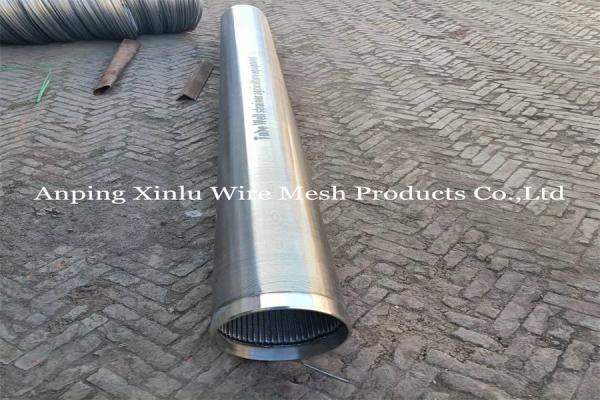

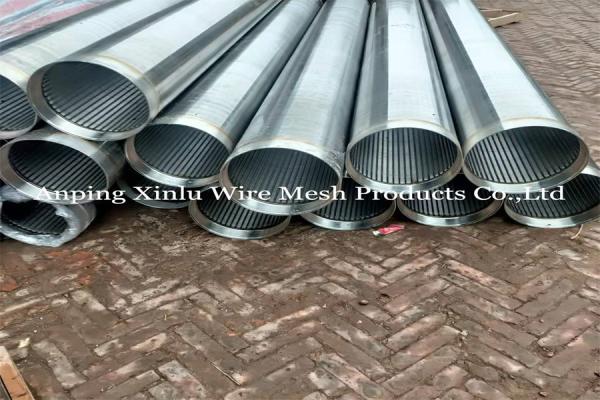

Water Well screen is a perfect combination of V-shaped profile wire and V-shaped rod or round support rod. The wire is welded onto the rod at each intersection point.

It is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.

Specifications of water well johnson screen tube

Common Specifications of Stainless Steel Wedge Wire Water Well Screens
Size (inch) O.D. (mm) Slot Size (mm) Length (m) Collapse Strength (Bar) Tensile Weight (ton) Wrap Wire (width × Height) (mm) Support Rods (mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.3 × 3.5 3.8 mm / 22
4-1/2 114.3 1.0 2.9 ＞28 11.5 2.3 × 3.5 3.8 mm / 22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3 × 3.5 3.8 mm / 32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3 × 3.5 3.8 mm / 32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2 × 6.0 6.0 mm*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3 × 3.5 3.8 mm / 48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0 × 5.0 4.0 mm / 48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2 × 6.0 5.0 mm / 48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3 × 3.5 4.9 mm / 55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0 × 5.0 4.9 mm / 55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2 × 6.0 5.0 mm / 55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0 × 5.0 4.0 mm / 50
14 355.6 1.0 2.9 ＞80 37.8 3.0 × 5.0 4.0 mm / 59
Notes:
  • The wedge wire water well screen is commonly made of stainless steel materials.
  • The length can be made up to 12 m.

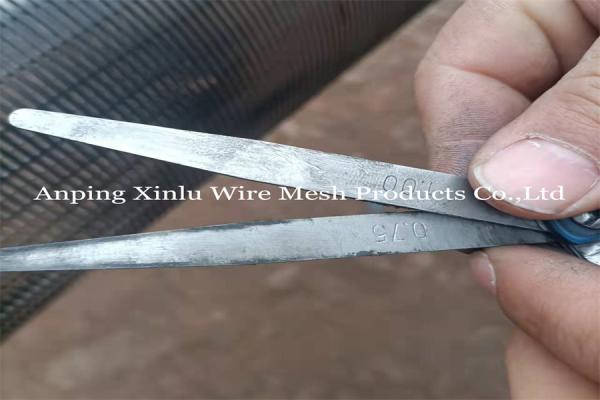

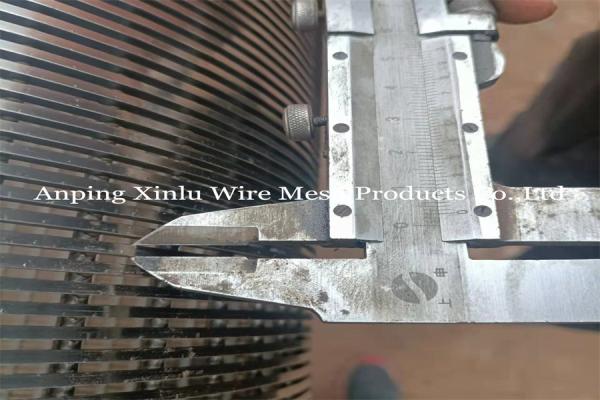

  • Slot size may be 0.1 mm to 3.0 mm.

Product Advantages of Water Well Johnson Screen Pipe:

1. Anti-Corrosion Sand Control Johnson Well Screen Pipe With Threaded for Groundwater

2. Selling point: High Strength, Anti-Corrosion, Easy Installation, Anti-Pressure, Rust resistant

3. Surface treatment: Pickling and polishing, Bright

4. Diameter: 2-1/2", 3", 4-1/2", 4-3/4", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14", 16",18", 20"

5. Slot size: 0.1mm, 0.2mm, 0.3mm, 0.4mm,0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be others.

6. Length: 1m, 2m, 3m,10ft, 4m, 5m, 5.85m, 20ft (2.9m/2.95m, or 5.8m / 5.85mto fit container)

7. End connection: Plain beveled ends for butt welding, male/female threaded,Flange, Closed Up etc.

8. Material: Low Carbon, Low Carbon Galvanized steel (LCG),Stainless Steel( 304,etc.), Duplex Stainless Steel, 904L etc.

9. Well deep: v / wedge wire: 2.5x4mm Well deep: 200-300m,

v / wedge wire: 3x4.6mm Well deep: 350-450m

v / wedge wire: 3.3x6.5mm Well deep: 500-650m

Applications: Water Well Johnson Screen tube

High strength continuous slot stainless steel water well screen are widely used in water well for efficient water filtration and sand control. It can also be used in the oil and gas wells.

Specifications for your reference:

outside diameter Sewing Standard length Specifications of filter wire Specifications of support wire

4'' ,6'' ,8'',

10'',12''

and etc.

 0.1-35mm 50-6000mm

2.2x3.0mm,

2.3x3.5mm,

2.5x4.0mm,

3.0x4.6mm,

3.0x5.0mm

3.8mm/22pieces,

3.8mm/32pieces,

3.8mm/48pieces,

3.8mm/50pieces,

3.9mm/61pieces

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.

Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
