Npt Thread Water Strianer Filter Stainless Steel Screen Nozzle

Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, header and hub laterals & hub radial laterals, water input device, water distributor, resign trans,etc.

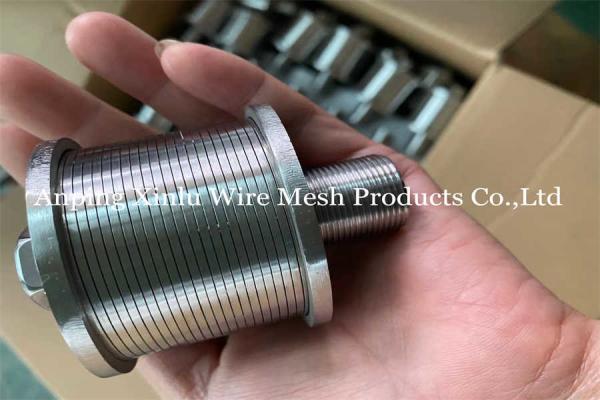

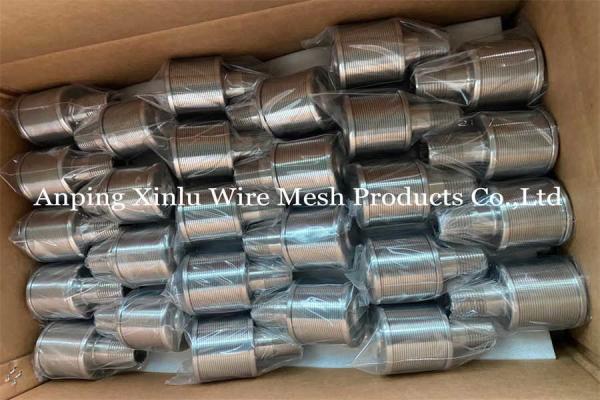

Npt Thread Water Strianer Filter Stainless Steel Screen Nozzle is an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That’s because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.

NPT Threaded Wedge Wire Screen Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Feature of NPT Threaded water screen nozzles
1. We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2. The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities
3. After work for a period of time, the filter can be back flush.It can use for many times.

Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle Types:

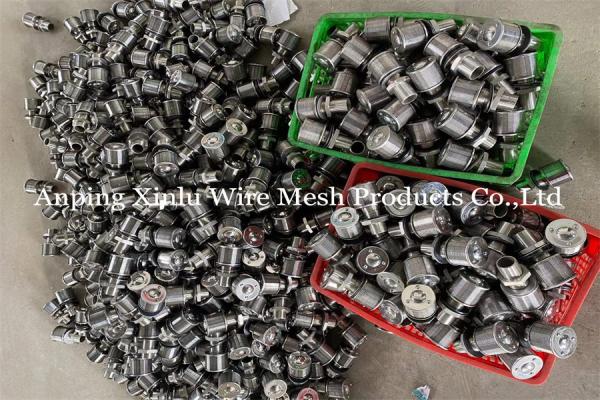

1. Single head filter nozzle
2. Double head filter nozzle

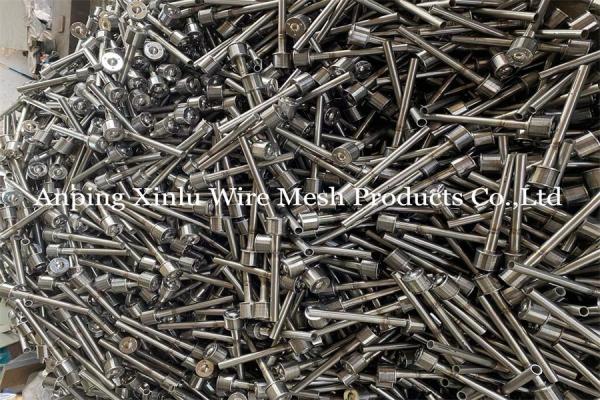

3. Long handle filter nozzle
4. Double flow filter nozzle
5. Flatwater filter nozzle, etc.

Water Filer Nozzle, Wedge Wire Screen Nozzle, Johnson Strainer Nozzle

Material: Stainless steel 304, 316, 316L, 321, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment), and other materials to ensure strong product structure and product bearing capacity.

Wire size: 1.50mm 1.80mm 2.00mm 2.5mm 3.00mm(or as your need)

Slot size: 0.04" - 0.3"

Diameter: 1" - 16"

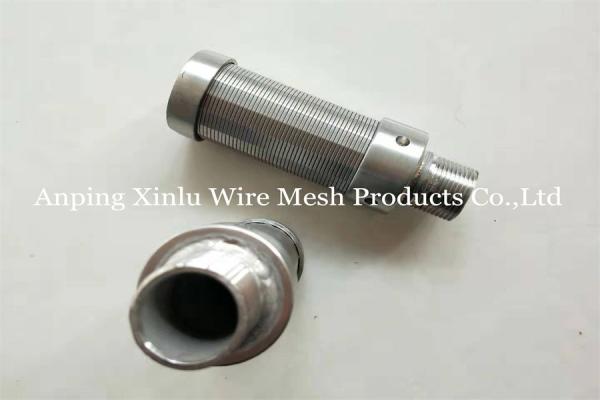

Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets

Application: Water distributor, tank, power plant, Water treatment, sand filter, water softening, desalination.

Available in a variety of standard designs or can be customer designed to meet your requirement.

Note: All the length units are in millimeter.

Note:1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.

2. Available in customer design for perforated plate.
3. D: Filter outdiameter, L1: Filter Length, L: Overalength, M:threaded size

4. We can produce according to clients requirements.
Material: 304,321,316,316L,904L ,HastalloyB and C, ets

Advantage of our Stainless Steel 904L Wedge Wire Filter Nozzle For Water Treatment

Optimum structural strength for heavy loads
Minimal plugging and blinding
High pressure/pulsating pressure capability
Corrosive application suitability
Thermal resistance
Long-life — almost endless cleanability
Sterile application/food industry suitability
Low-pressure drop
High flow rate
We can supply all kinds of filter nozzles, and the material and size can be customed. We can design according to the actual application.

OEM service:

Please tell us the specification you need, Then we will help you to process the high quality products.
1. Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.

2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual.

3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, can be according to customer needs.

4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc.

5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, and by customers' request.
