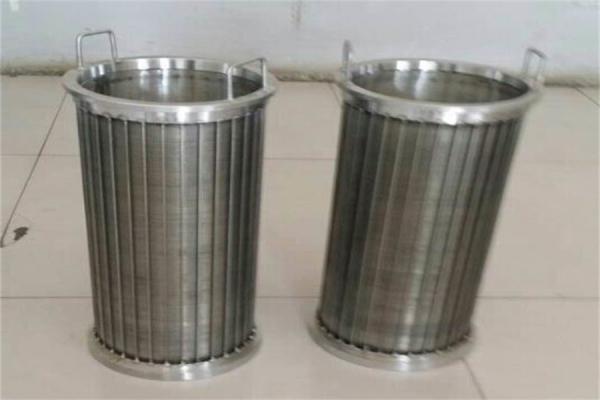

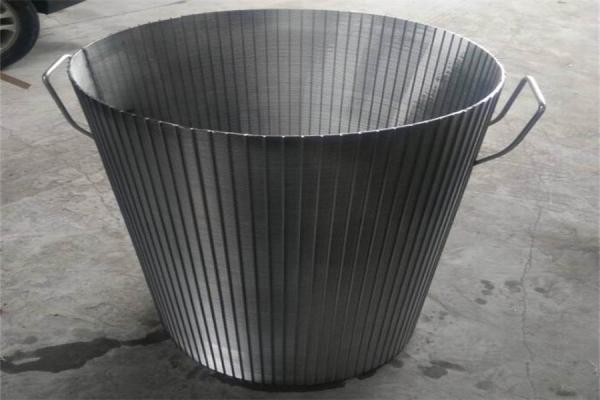

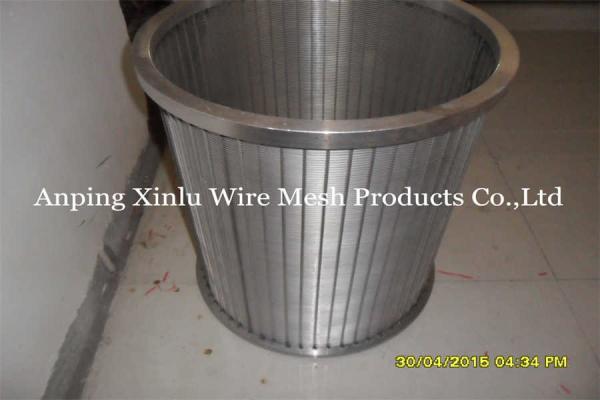

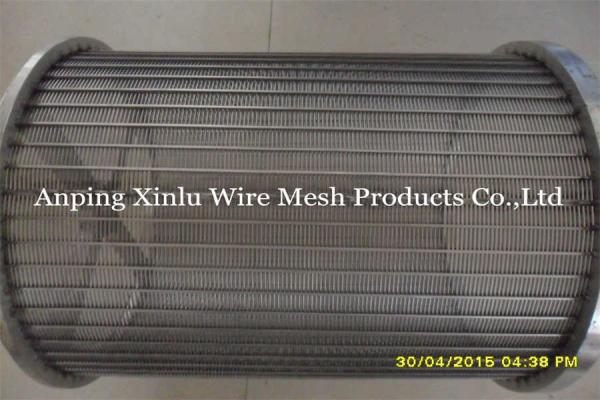

520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder
Specifications
Brand Name :
Anping County Xinlu Wire Mesh Products Co.,Ltd
Model Number :
XL - Rotary Screen Drum - 04
Place of Origin :
Anping County, Hebei Province, China
MOQ :
1pcs
Price :
Negotiable according to the specification
Payment Terms :
T/T
Supply Ability :
300m2/month
Delivery Time :
6-8days
Packaging Details :
wood case, pallet
Category :
SS 316L Wedge Wire Sieve Filters / Rotating Drum Screen for separator
Material :
stainless steel 304L, 304 316L wedge wire 316
Application :
Swater-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical
Type :
Rotary Screen Drum, Filter Cylinder, Filter Elements, Mine Sieving Mesh, Wedge wire screen strainer, filter basket, v wire cylinder screen
OD :
520mm
Slot :
0.75-2mm
End connection :
filange
tag :
Wedge wire rotary drum screen,Wedge wire rotary screen,rotary drum screen,drum screen,
Description
SS Wedge Wire Wedge Wire Mesh Screen Cylinder For Water Treatment
Category: Wedge Wire Pipe & Cylinder
Material: stainless steel 304,304L,316,316L,321 or as per your request.
Properties: wedge wire screen cylinder
Application: water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical
Rotary Screen Drum is successfully used in the separation of solids and liquids in municipal waste water treatment and industrial process water treatment. Aokai produces two kinds of slot openings, internal axial slot openings and external radial slot openings to suit specific application. The rotary drum with internal slot openings retains solids inside the drum, while with external slot openings keeps sticky solids outside the drum. We provide various wedge wires, support rods, and slot openings for custom orders.
Two Filter Types:
1. From outside to inside (FOTI):
the liquid flowing outside to inside. Due to the section of wrap wire is trapezoidal, so the slot outside is small and slot inside is big, to ensure good filtering and washing.
2. From inside to outside(FITO):
the liquid flow from inside to outside, It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire ,facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.
Applications of Wedge Wire Rotary Drum Screen
Wedge wire screen drums are widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.
Details of Wedge wire rotary drum screen
Wedge wire rotary drum screens are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.
Features of Wedge Wire Rotary Drum Screen
The rotary screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Wire Size Of Rotary Drum Screen Basket

PROFILE WIRE
WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----

520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder

520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder

520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder

520mm OD Wedge Wire Screen Mesh SS304 SS321 Stainless Steel Mesh Cylinder

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.

Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

---------------------------------------------------------------------------------------------------------------

Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson type screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainless steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod based continuous slot screens, header and hub laterals & hub radial laterals etc.
