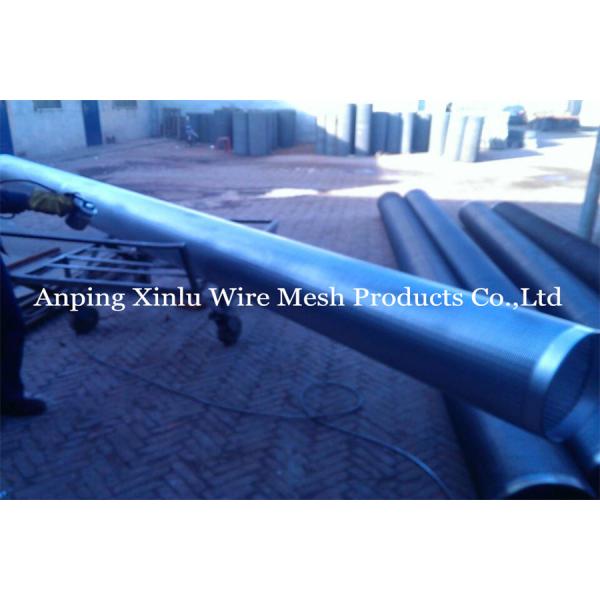

14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
14 Inch Wire Wrapped Screens Q195 Low Carbon Galvanized Water Well Screens
Specifications
Brand Name :
Anping XinLu Wire Mesh Products Co.,Ltd
Model Number :
XL - Wire Wrapped Screens - 018
Place of Origin :
Anping County, Hebei Province, China
MOQ :
4pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs / month
Delivery Time :
3-5days
Packaging Details :
carton, wooden case, pallet
Certification :
CO
Name :
Q195 14" Low Carbon Galvanized Wire Wrapped Screen, Water Well Screen Tube
Diameter :
14"
Application :
Deep Wells, For sand control in water well, Water Filtering Industry, dewatering screen, waste treatment, motor filter, pump filter
Technique :
v wire or wedge wire wrapped
Length :
2.95m, 5.85m
Advantage :
Rust resistant, smooth surface, Easy Installation,
Surface :
Galvanized
Connection :
Welded rings/Plain beveled ends; Male/female threaded coupling: API STC, PT NPT, BSP, G; Flange ; Closed up, Open ends etc.
Description

Q195 14" Low Carbon Galvanized Wire Wrapped Screen, Water Well Screen Tube

Name: Johnson screen, Water wire screen, Water well screen, Wire warpped screen,Wedge wire screen, Johnson well screen, Johnson wire screen, Johnson screen tube, Johnson screen pipe, Johnson filter tube, Screen pipe, Screen tube, Dewatering well screen tube, stainless steel strainer pipe, oil well screen, changeable filter element, Motor Filter, Pump Filter, stainless steel filter candle, Header lateral Pipe, wedge wire strainer, perfect round screen tube, Slotted tube, Wound screen, Continuous slot screen fiter, Sand control screen,Wedge wire screen pipe, Rotary fiter drum, Oil screen. water wire screen,wound screen.

Q195 14" Low Carbon Galvanized Wire Wrapped Screen for Water Wells

Product Overview:

Anping County Xinlu Wire Mesh Products Co., Ltd is proud to offer our Q195 14" Low Carbon Galvanized Wire Wrapped Screen, designed for water well applications. Known for its robust construction and functionality, this screen is ideal for various filtration needs.

Product Details:

Specification Description
Name Johnson Screen, Water Well Screen, Wedge Wire Screen, and more
Material Low Carbon Galvanized: Q195/Q235, Stainless Steel 205, 304, 316, 304L, 316L, 321
Outer Diameter (O.D.) 3-1/2", 4-1/2", 6-5/8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", and customizable
Slot 0.1mm to 1.5mm, with a discrepancy of +/- 0.05mm
Length 50mm to 6000mm, typically 2950mm or 5850mm to fit containers
End Connection Welded rings, plain beveled ends, threaded couplings (API STC, PT NPT, BSP, G), flanges, closed or open ends
Flow Type FOTI: External circumferential wire with internal support rods; FITO: Inverted wire with internal support rods, or internal axial wire with external support rods

Features & Benefits:

  • Continuous Slot Design: Enhances water flow and prevents clogging.
  • High Open Area: Reduces water level and energy consumption, minimizing sand entry and pump wear.
  • High Strength: Made from stainless steel and welded at high temperatures for superior strength and longevity.

V-Wire Wrapped Screen Pipe Wire Specification


SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 >22 10.2 2.2x3.0 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3x3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.5x4.0 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3x3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.05x6.0 6.0MM/32
8-5/8 219.1 1.0 5.8 >34 21.9 2.5x4.0 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0x4.6 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.05x6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.5x4.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0x4.6 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.05x6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0x4.6 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0x4.6 4.0MM/59

　PROFILE WIRE
　WIDTH(mm) 1.00 1.50 1.50 2.00 2.30 2.50 3.00 3.05
　HEIGHT(mm) 2.00 2.00 2.50 3.80 3.50 4.00 4.60 6.35

　SUPPORT ROD
ROUND
　WIDTH(mm) 1.80 2.00 2.50 3.00 3.00 Ø2.5--Ø6mm
　HEIGHT(mm) 2.50 3.00 4.00 4.60 6.00 ----

Applications:

  • Suitable for heavy oil, sand oil, light oil, and various water injection projects.
  • Ideal for horizontal, vertical, and deviated oil and gas wells.

Customization:

We specialize in custom well screens tailored to your specifications, including diameter, slot opening size, length, and percentage of open area.

Quality Assurance:

  • Each production process is monitored by dedicated quality control personnel.
  • Professional engineers ensure adherence to quality standards.

Frequently Asked Questions:

Q1: Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?
A: 3-5 days for sample preparation, 15-25 working days for mass production.

Q3: Do you have any MOQ limit for the order?
A: Low MOQ, with 3pcs available for sample checking.

Q4: How do you ship the goods and how long does it take to arrive?
A: We offer various shipping options including airline, sea shipping, and rail transportation. Express shipping via EMS, DHL, UPS, FedEx, or TNT takes 5-7 days.

Q5: How to proceed an order?
A: Share your specifications or application, receive a quote, confirm and place a deposit for a formal order, and we will arrange production.

Q6: Is it OK to print my logo on the product?
A: Yes, please inform us before production for logo printing.
