Specifications
Brand Name :
R&K
Model Number :
R-39T
Certification :
MSDS,ROSH,SGS,ISO 9001
Place of Origin :
HEBEI ,CHINA
MOQ :
100 METERS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal,T/A,Credit Card
Supply Ability :
100,000 meter per months
Delivery Time :
5-8 work days
Packaging Details :
plastic bag inside,and the carton box and woven bag or stretch film outside.
Product name :
Polyester Filter Mesh Screen Roll
Material :
100% polyester mono filament yarn
Mesh count :
100 mesh per inch (39 T per cm)
Thread diameter :
55 micron
Roll width :
41'' 45'' 65'' 74'' 90'',max width 144''
Roll length :
40-100 mesh,big roll 1000-2000 meters
Place of origin :
HEBEI,CHINA
MOQ :
100 METERS
Description

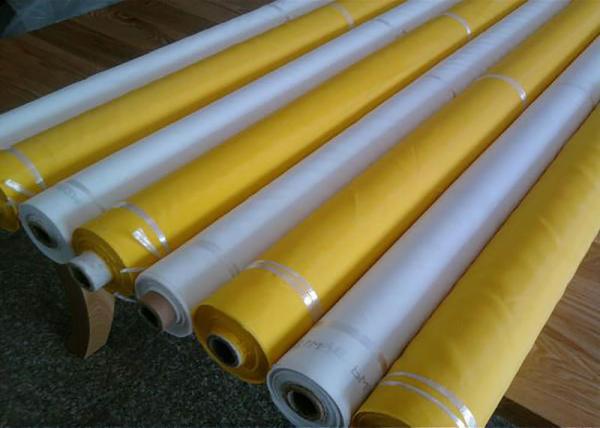

Polyester Filter Mesh Screen Roll 100 Mesh 39 T 55 micron Plain And Twill Weave

Details of the polyester filter mesh:

Reking wire mesh always use the high quality to meet our client request, we have about 150sets machine to produce this kind of mesh, we use the advanced weaving looms and high quality imported and domestic raw material.

below is the details about this mesh:

Material: 100% polyester mono filament yarn

Certification:FDA,MSDS,ROSH,SGS,ISO 9001

Mesh count: 39T/100 mesh

Thread diameter: 55 micron

Color: white is popular,other color is for particular purpose.

Aperture size: 20 micron - 800 micron

We can produce the mesh from 10T - 180T, the popular specification are 43T-80/ 54T-64/64T-55/90T-48/100T-40/120T-31/140T-34/150T-31/180T-27.

Advantages:

Economical cost

High temperature resistance and strong waterproof

Have accurate and standard mesh to ensure the uniformity.

Specification of the polyester filter mesh:

Mesh Count Diameter (Mesh/cm µm) Mesh Count (Mesh/inch) Weave Aperture (µm) Thread Diameter (µm) Opening (%) Thickness (µm) Thickness Tollerance (+/- µm) Theoretical Ink (cm3/m2) Weight (g/m2
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 2:2 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 2:2 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70PW(HD) 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 2:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-31PW(S) 420 1:1 23 31 15 48 2 7 36

PW:(Plain Weave);TW:(Twill Weave); S T HD:(thickness of Mesh)

Standard Color: white and yellow, other colors on request.
