Specifications
Brand Name :
R&K
Model Number :
J834
Certification :
SGS， ISO 9001
Place of Origin :
Hebei , China
MOQ :
50 Meter/Meters Thermal Screen Printing Mesh
Price :
negotiation
Payment Terms :
L/C,T/T,Paypal, Western Union,Trade Assurance.
Supply Ability :
15000 Meter/Meters per Week for monofilament screen printing mesh
Delivery Time :
3-10 days
Packaging Details :
in cartons,plastic film packaging or as customer's request
Material :
100% polyester Monofilament
Brand name :
R&K
Roll width :
1M-3.9M
Length :
50m / 100m / 200m / 500m / 1000 m / 1500meters
Monofilament :
yes
Mesh Count :
33-420 mesh/inch
Description

Monofilament Screen Silk Printing Mesh Roll 77T 55 Micron Yellow Color 145 Inch

Monofilament screen printing mesh details information:

Monofilament screen printing mesh is the carrier of the directly plate making and printing.Polyester printing mesh are widly used in ceramic print,glass print,textile print,graphic print, it is plain weave mesh,twill weave is not available on the printing industry.

Material: 100% monofilament polyester

Mesh count:30 mesh per inch to 460 mesh per inch

Roll width: 50m / 100m / 300m / 500m / 1000m / 1500m

Color: white,yellow,red,orange.

Quality:With high quality domestic and imported raw material,advanced weaving looms and test instruments.

Monofilament screen printing mesh application:

  1. Printing mesh for glass : Direct screen printing on articles for pharmacy glass appliance names,measuring marks.Prints the glass decoration on household appliance,such as microweaves oven doors and creamics hot plates/stove tops.
  2. Printing mesh for textile: Polyester mesh can transfer thick ink deposits and creat special effects to make it to be optimal process to print high quality commercial garment.


Monofilament screen printing mesh specification:

Mesh Count Diameter (Mesh/cm um) Mesh Count (Mesh/inch) Weave Aperture (um) Thread Diameter (um) Opening (%) Thickness (um) Thickness Tollerance (+/- um) Theoretical Ink (cm3/m2) Weight (g/m2) Tension value(N/CM)
165-31PW(S) 420 1:1 23 31 15 48 2 7 36 25-26
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42 30-31
150-31PW(S) 380 1:1 32 31 23 49 3 11 32 24-25
140-34TW(T) 355 2:1 33 34 21 56 3 12 41 27-28
140-34PW(T) 355 1:1 31 34 20 53 3 10 39 26-28
140-31PW(S) 355 1:1 36 31 26 48 2 12 30 22-24
130-34PW(T) 330 1:1 40 34 27 55 3 15 37 27-28
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44 33-35
120-34PW(T) 305 1:1 45 34 30 55 3 16 35 25-26
120-31PW(S) 305 1:1 49 31 35 49 3 17 26 20-23
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40 30-32
100-40PW(T) 255 1:1 58 40 33 63 3 21 37 26-27
90-48PW(T) 230 1:1 56 48 25 78 4 19 50 34-35
80-48PW(T) 200 1:1 72 48 33 74 4 25 56 34-35
77-55PW(T) 195 1:1 67 55 27 88 4 24 55 37-38
77-48PW(S) 195 1:1 77 48 35 80 4 28 42 34-35
72-55PW(T) 182 1:1 85 55 30 90 5 27 51 33-34
72-48PW(S) 182 1:1 90 48 36 78 5 33 39 32-33
68-64PW(T) 175 1:1 78 64 28 105 5 30 65 39-40
68-55PW(S) 175 1:1 85 55 34 85 4 28 48 33-34
64-64PW(T) 160 1:1 85 64 30 115 6 34 61 34-35
64-55PW(S) 160 1:1 98 55 38 98 5 36 48 33-34
61-64PW(T) 155 1:1 90 64 31 101 5 30 58 35-36
54-70PW(HD) 137 1:1 109 70 35 116 6 40 62 39-40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51 33-34
53-55PW(S) 135 1:1 133 55 50 86 6 42 40 26-27
53-45PW(S) 135 2:2 143 45*2 57 79 7 41 46 26-27
48-70PW(T) 122 1:1 133 70 41 115 6 47 55 34-35
47-55PW(S) 120 1:1 152 55 51 88 6 48 34 26-27
43-80PW(T) 110 1:1 149 80 41 130 7 53 64 43-44
40-80PW(T) 103 1:1 166 80 44 133 7 59 60 41-42
39-55PW(S) 100 1:1 177 55 56 88 6 55 30 39-40
36-90PW(T) 92 1:1 183 90 44 150 8 65 68 36-39
32-100PW(T) 81 1:1 212 100 45 165 8 73 75 35-37
32-64PW(S) 81 1:1 248 64 63 95 6 56 32 26-28
32-55PW(S) 81 1:1 257 55 67 103 6 67 28 24-25
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125 /
24-100PW(T) 60 1:1 316 100 57 136 11 65 81 /
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121 /
21-80PW(S) 55 1:1 296 80 69 120 9 79 35 /
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60 /
PW:TW:SL；S,T,HD PW:(Plain Weave);TW:(Twill Weave); S,T,HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request.

Features For Thermal Screen Printing Mesh:

  1. Abrasion;
  2. No surface treatment;
  3. High tension;
  4. Low elongation;
  5. High tension treshold and braking point;
  6. Improved registration due to stable tension;
  7. Fast printing speeds;
  8. Fater tension stabilization;
  9. Improved fabric strength;
  10. Loss ternsion loss during the strengtching process.

Application of the thermal screen printing mesh:

FOR ceramic decorative printing industry,

Printing on glass,

image printing,

textile printing,

large post printing,

medical equipment printing,

CD/DVD,PCB ,

garment printing,

medical equipment printing,

membrane switches printing,

packing and plastic printing industry.

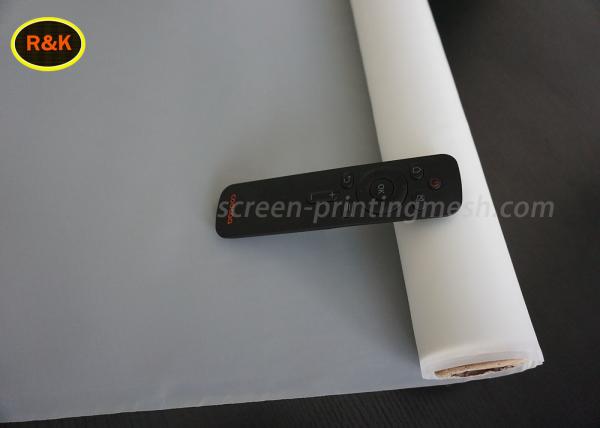

Photo of the thermal screen printing mesh:

145 Inch Monofilament Screen Printing Mesh With SGS / ISO 9001 Certificate

145 Inch Monofilament Screen Printing Mesh With SGS / ISO 9001 Certificate
