Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
Specifications
Brand Name :
R&K
Model Number :
Y1722
Certification :
ISO9001:2008,SGS
Place of Origin :
Hebei China
MOQ :
20pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Trade assurance,Credit card
Supply Ability :
10000untis per months. if we have in stock.
Delivery Time :
5days
Packaging Details :
stretch film with woven bag.the packing size depends on the frame size.you could estimate the carton size
Material :
Aluminum alloy
Product name :
Silk screen frame
Application :
Silk screen printing
Aluminum profile :
18mm×22mm×1.0/1.4mm 20mm×30mm×1.0/1.6mm 30mm×30mm×1.4mm 38mm×38mm×1.4mm
MOQ :
20 UNITS
Frame size :
18'' * 20'' / 20'' * 24'' / 23'' * 31'' / 25'' * 31 ''
Mesh specification :
43T-80 , 64T-55W , 72T-55W , 90T-48W , 100T-40W
Description

25'' & 31'' Various Type of the aluminum Alloy Silk Printing Screen Frame

Silk screen aluminum frame can meet clints various of demands,and it is welded for great mesh adhesive.All corners are completely sealed to prevent ink from leaking

Silk printing screen frame detail specfication:

  • 18'' * 20 '' * 35 mm * 35 mm * 1.2mm / 1.4mm, popular mesh count:43T-80W,54T-55W,72T-55W,80T-48W,100T-40W,100T-40Y,110T-40W,120T-34W,120T-34Y,140T-34Y.
  • 20'' * 24'' * 35 mm * 35 mm * 1.2mm / 1.4mm, popular mesh count:43T-80W,54T-55W,72T-55W,80T-48W,100T-40Y,110T-40Y,120T-34W,120T-34Y,140T-34Y.
  • 23'' * 31'' * 38 mm * 38mm * 1.4mm / 1.6mm,popular mesh count:43T-80W,54T-55W,72T-48Y,80T-48W,100T-40W,100T-40Y,110T-40W,120T-34W,120T-34Y,150T-31Y.
  • 25'' * 36'' *38 mm * 38mm * 1.6mm / 1.8mm,popular mesh count:43T-80W,54T-55W,72T-48Y,80T-48W,80T-48Y,90t-48Y,100T-40Y,110T-40Y,120T-34W,120T-34Y,140T-34Y.

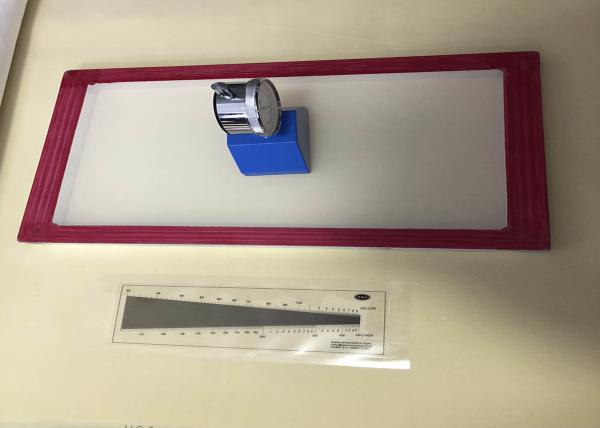

  • Suggestion tension, from 20N - 25 N, If you don't have the tool,we can provide you the tensionmeter for test. we have two kind of the material of the tool,domestic quality & imported quality.

Silk printing screen frame advantages & features:

  1. Envrionmental friendly ALU alloy have apssed the standard of European ROSH
  2. 100% monofilament DPP polyester mesh,which ensure a high quality and consistent printing process.
  3. The mesh rugular tension from 17N to 25N in t-shirt printing and other textile,garment printing ect application field.
  4. Every frame will be inspect before ship to our customer,we can guarantee our quality is better when you got it,our packing will be plywood case or the cardboard box.
  5. The tolerance of the overall size,we can control within +/- 0.5mm,and the surface flat we can control within +- 0.1mm.
  6. The frame is very durable in high tension printing,corrosion resistant,no deformation,high recycle value.The frame specification types depends on the perious of overprint and printing graphic.
  7. Usually we use the mesh with high tension,low elongation,low elasticity,good tension stability.
  8. Strong printing durability,corrosion resistant,no deformation,high recycle value.

Material

6063 Aluminum alloy
Standard size

18''×20'' , 20''×24'', 23''×31'' ,

other size we can customized for you
Aluminum profile

Rectangle type:

18mm×22mm×1.0/1.4mm

20mm×30mm×1.0/1.6mm

30mm×30mm×1.4mm

38mm×38mm×1.4mm

25mm×38mm×1.2/1.4/1.6/2.0mm

Grid type:

30mm×40mm×1.7/2.0mm

35mm×60mm×2.0mm

30mm×40mm×2.5mm

40mm×70mm×2.5mm

Heterotype:

25mm×25mm×1.0/1.2mm

30mm×30mm×1.0mm

25mm×40mm×1.0mm

25mm×41mm×1.2/1.4mm
Application

Aluminum frame are widely used in testile,glass, garment,ceramic printing,CD/DVD printing,advertising printing,plate printing and so on.

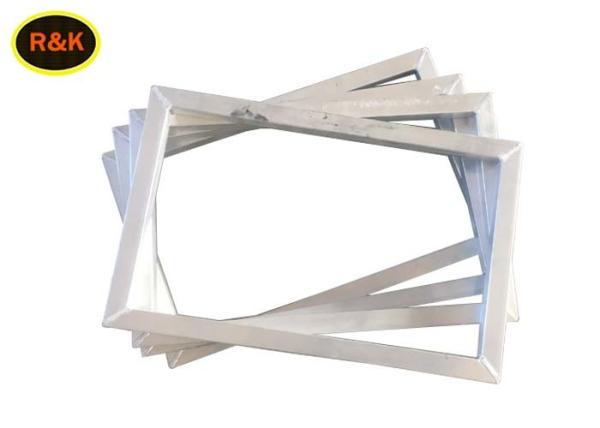

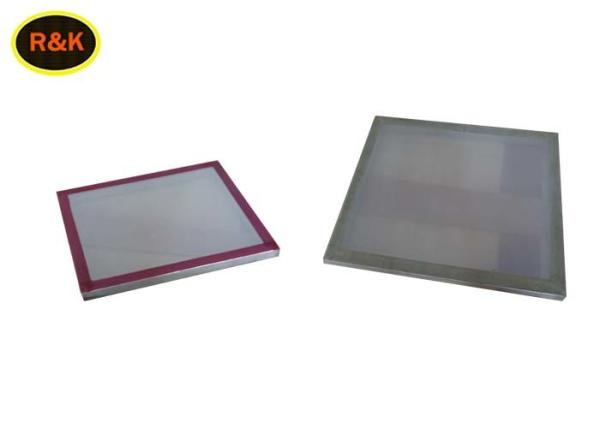

Photos For The Silk Printing Screen Frame:

Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''

Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''

Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''

Various Type Silk Screen Aluminum Frame Screen Door Aluminum Frame 25'' & 31''
