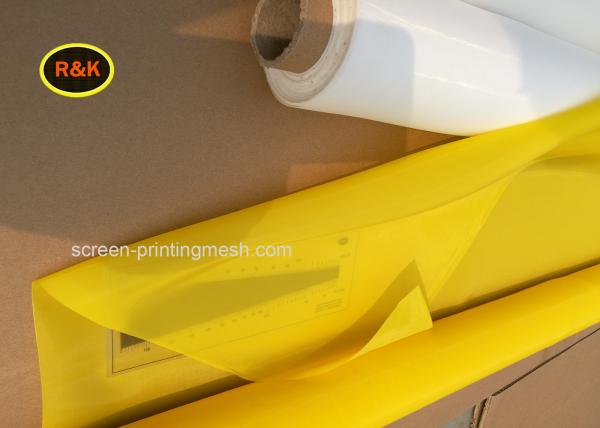

PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron
PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron
PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron
PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron
PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron
PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron
Specifications
Brand Name :
R&K
Model Number :
R&K-LSS354
Certification :
SGS,FDA,MSDS
Place of Origin :
Hebei ,China (Mainland)
MOQ :
100 meters
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypla,Trade asscurance,Credit Card
Supply Ability :
2000 meter per week
Delivery Time :
within 10-15days.
Packaging Details :
Poly bag inside and the carton box outside.
Material :
100% monofilament polyester
Aperture size :
40-42micron
Roll width :
Max width 3.05meter
Mesh Count :
195 mesh/inch (77T/ cm)
Weave style :
Plain weave
Monofilament :
Yes
Description

PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron

110 Screen Printing Mesh Description :

110 screen printing mesh is the best choose to printing textile,ceramic,glass,plstic,metal,screen printing plate, The cost is very cheaper for printing industry.

Bolting Fabric Yellow 110 Screen Printing Mesh Low Elasticity For PCB Printing is plain weave network for liquid crystal display.Hebei ruijin wire mesh co., LTD. Has been producing these products for 20 years.110mesh makes printing white and other thick ink easy.It is the ideal spot color printing because it holds less than 155 details and lays a thick layer of ink for maximum coverage.We registered R&K as pedals and registered intellectual property protection in major foreign sales areas.

Material 100% monofilament polyester
Roll width Max width 3.05meter
Mesh count 195 mesh/inch (77T/ cm)
Weave style Plain weave
Color white,yellow
Monofilament Yes

110 Screen Printing Mesh Specification

Mesh Count
Diameter
(Mesh/inch μm)		 Mesh
Count
(Mesh
/Inch)		 Weave Aperture
(μm)		 Thread
Diameter
(μm)		 Opening
(%)		 Thickness(μm) Thickness
Tollerance
(+/- μm)		 Theoretical
lnk(cm3/m2)		 Weight
(g/m2)
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42

110 Screen Printing Mesh Features:


1. Long working life;
2. Hard wear;
3. Three factories for manufacturing;
4. Imported weaving machines from Switzerland and Italy;

5. Low enlongation;

6. Acid resistant;

7. Improved fabric strength;

8. Fast printing speed;

9. Fast tension stabilization;

10. Less tension loss during the stretching process;

110 Screen Printing Mesh Applications:

Ceramic Printing

Glass Printing

Textile Printing

Electronic Comeponeents Printing

PCB printing

Solar Printing

Touch Printing

PCB Printing Screen Printing Screen Mesh Yellow Color 110 Polyester Mesh 40-42 Micron
