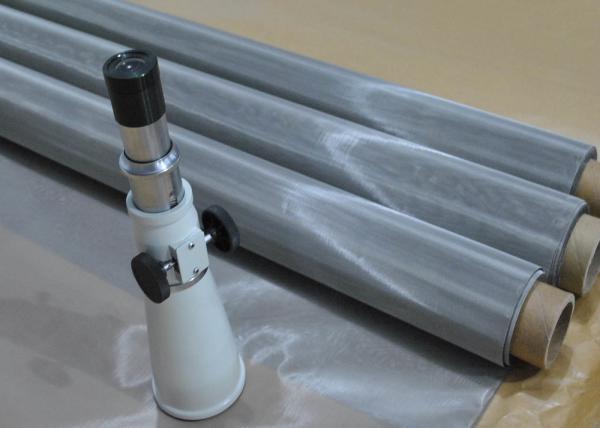

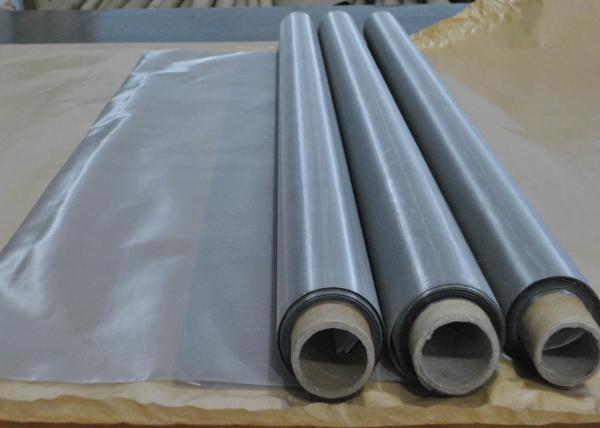

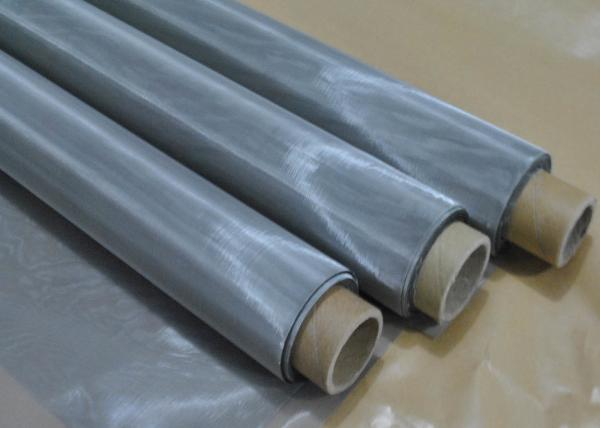

Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Good Sharpness Stainless Steel Screen Printing Mesh Ss Screen Printing Plain Weave
Specifications
Brand Name :
R&K
Model Number :
R&K-LLS
Certification :
FDA
Place of Origin :
Hebei , China
MOQ :
1 square meter
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability :
3000 square meter per month
Delivery Time :
in 5 days for goods in stock
Packaging Details :
waterproof paper inside,plywood case outside
Material :
SUS304N
Weave :
Plain weave
Color :
Primary Color
Width :
1m,1.22m
Sample :
Free.The freight should be paid by buyer
Features :
Good Heat-Melting Resistance
Description

Good Sharpness SUS 304N Stainless Steel Screen Printing Good Heat-Melting Resistance

Description of the Steel Screen Printing Mesh :

Material SUS304N
Weave Plain weave
Features Good Heat-Melting Resistance
Sample Free.The freight should be paid by buyer
Width 1m,1.22m

R&K supplies high quality surface smooth, bright, high hardness, high temperature resistance, deformation characteristics.We use imported precision cutting machine, can be divided into fine mesh, plain, twill weave.


Featuers of the Steel Screen Printing Mesh :

High-Flexibility

High Tension

Low Elongation

High-Corrosion Resistance

Non-electrostatic

Good Solvent Resistance

Plain Weave

SUS 304N

Good Solvent Resistance

Specification of the Steel Screen Printing Mesh :

Mesh/Inch Wire Diameter Aperture Open Area Weight (kg/Square meter)
Inch MM Inch MM
1*1 0.08 2.03 0.92 23.37 92 2
2*2 0.063 1.6 0.437 11.1 87.4 2.5
3*3 0.054 1.37 0.279 7.09 83.8 2.7
4*4 0.047 1.19 0.203 5.16 81.2 2.7
5*5 0.041 1.04 0.159 4.04 79.5 2.6
10*10 0.025 0.64 0.075 1.91 74.9 2
12*12 0.02 0.508 0.063 1.6 75.9 1.5
14*14 0.02 0.508 0.051 1.3 71.9 1.8
16*16 0.018 0.457 0.445 1.13 71.2 1.6
18*18 0.017 0.432 0.386 0.98 69.4 1.6
20*20 0.02 0.24 0.03 0.76 76 0.56
20*20 0.016 0.33 0.034 0.86 72.2 1.1
30*30 0.12 0.305 0.213 0.54 63.9 1.4
30*30 0.0094 0.24 0.243 0.62 72.1 0.84
40*40 0.01 0.254 0.015 0.38 59.9 1.3
50*50 0.0055 0.14 0.0145 0.368 72.4 0.48
60*60 0.0047 0.12 0.012 0.303 71.6 0.42
60*60 0.0059 0.15 0.0107 0.273 64.5 0.65
80*80 0.0055 0.14 0.0069 0.117 45.5 0.76
100*100 0.0045 0.114 0.0055 0.14 55.1 0.59
100*100 0.004 0.102 0.006 0.152 59.8 0.49
120*120 0.0028 0.07 0.0057 0.147 67.7 0.29
150*150 0.0024 0.06 0.0043 0.11 64.7 0.26
150*150 0.0028 0.07 0.0039 0.1 58.8 0.38
165*165 0.0019 0.05 0.0041 0.104 67.5 0.2
180*180 0.0019 0.05 0.0035 0.091 64.5 0.22
180*180 0.0024 0.06 0.0031 0.081 57.4 0.32
200*200 0.0019 0.05 0.003 0.077 60.6 0.24
200*200 0.0024 0.06 0.0026 0.067 52.7 0.35
250*250 0.0016 0.04 0.0024 0.0616 60.6 0.2
270*270 0.0016 0.04 0.0021 0.054 57.4 0.21
300*300 0.0016 0.04 0.0018 0.045 53.5 0.23

Application of the Steel Screen Printing Mesh :

  • Chemical filtering
  • .Food and beverage for food filtering
  • Mining,main use coarse mesh,such as crimped wire mesh
  • Chip Electrical components,
  • Plasma Display Panel(PDP) ECT.
  • Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh

  • Refining,mail use stainless steel fine mes

  • Healthcare

  • Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh

  • Acoustic,headphone net

  • Automotive

  • Security,PVC coated stainless steel mesh 11mesh.

  • Pharmaceutical: food grade stainless steel fine mesh

  • Quarry,advise carbon steel mesh

  • Electrical Cigarette:super thin stainless steel metal mesh fabric
