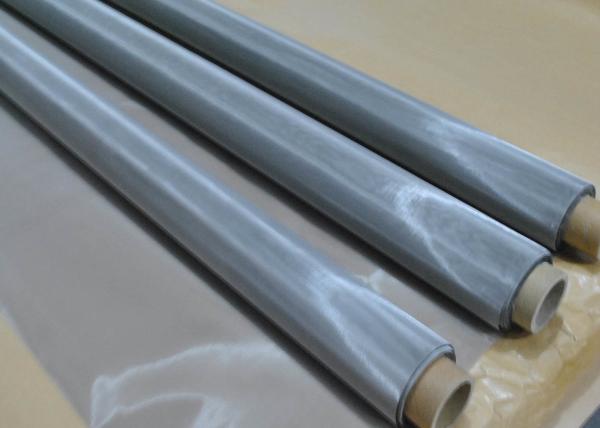

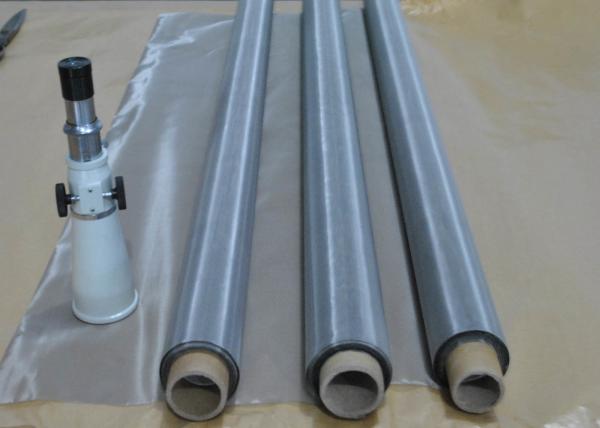

41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth
41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth
41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth
41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth
41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth
41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth
41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth
41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth
Specifications
Brand Name :
R&K
Model Number :
R&K-LLS54
Certification :
FDA
Place of Origin :
Hebei , China
MOQ :
1 square meter
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability :
3000 square meter per month
Delivery Time :
in 5 days for goods in stock
Packaging Details :
waterproof paper inside,plywood case outside
Material :
304HPS
Width :
1m,1.22m
Aperture size :
41-268micron
Color :
Primary Color
Wire diameter :
0.018-0.02mm
Features :
Good Solvent Resistance
Description

41-268 Micron Stainless Steel Mesh , Stainless Steel Wire Mesh Cloth

Description of the Steel Screen Printing Mesh :

Woven wire mesh is a kind of Dutch weaving net, which has more lines than the weft, and then forms a more complex grid surface.Reverse Dutch braid is widely used in plastic extruder.

Material 304HPS
Weave Plain weave
Features Good Solvent Resistance
Aperture size 41-268micron
Wire diameter 0.018-0.02mm
Width 1m,1.22m


Featuers of the Steel Screen Printing Mesh :

High-Flexibility:The wire mesh will not lose elasticity at extremely tension.

High tension.Much higher tension than common polyester mesh,and this property is very stable.

Low Elongation:Very small elongation of wire mesh at igh tension.

Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.

High-Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.

Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.

Specification of the Steel Screen Printing Mesh :

Specification Mesh/inch Wire Dia(μm) Open area Ratio(%) Apereture (μm) Apereture(μm) Calendered Thickness
(μm)		 Theoretical lnk(cm^/m^)
40*40*160 40 160 56 475 300-320 As order 179.1
60*60*120 60 120 51.3 303 230-245 As order 123.2
80*80*120 80 120 39 198 235-245 As order 92.9
80*80*90 80 90 52 228 175-180 As order 103
80*8*50 80 50 71 268 95-100 As order 78
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50
165*165*35 165 35 60 119 70-75 As order 48
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43
200*200*50 200 50 37 77 98-103 As order 42

Application of the Steel Screen Printing Mesh :

The stainless steel printing screen has many functions, such as making solar cells.pint board (PCB),chip electronic components,flat panel displays,liquid crystal display (LCD),plasma display panel (PDP), etc.
