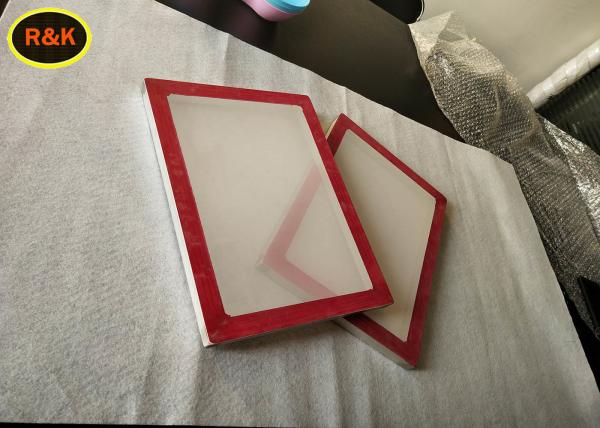

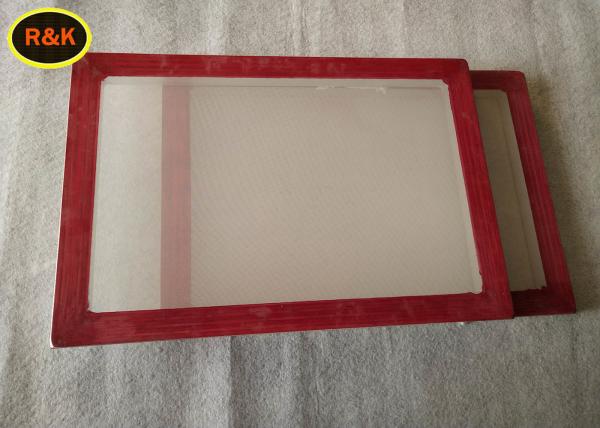

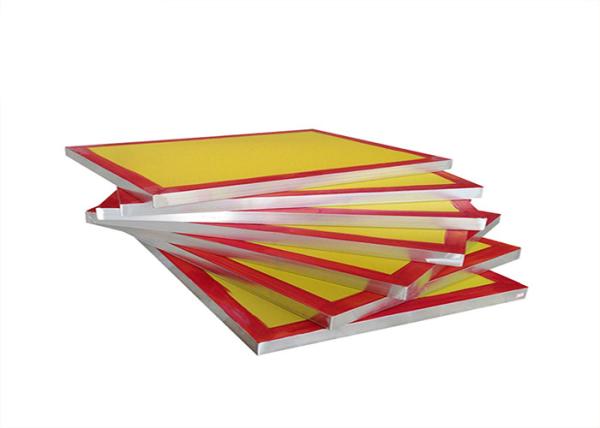

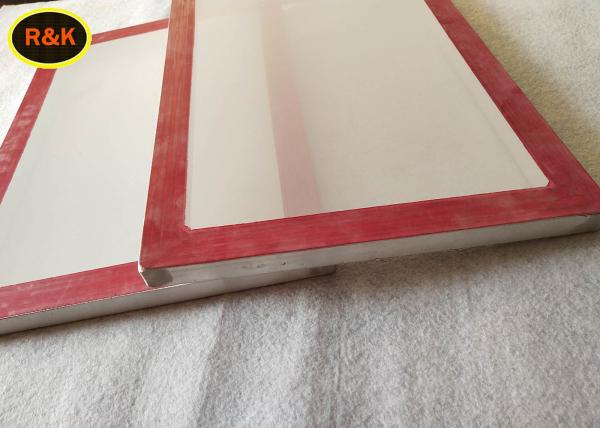

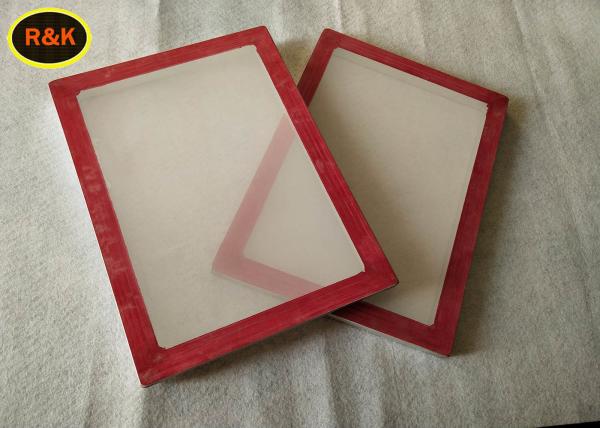

Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
Specifications
Brand Name :
R&K
Model Number :
R&K-sfdv181227
Certification :
ISO9001:2008,SGS
Place of Origin :
Hebei China
MOQ :
20pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Trade assurance,Credit card
Supply Ability :
10000untis per months. if we have in stock.
Delivery Time :
5days
Packaging Details :
stretch film with woven bag.
Material :
Aluminum,or stainless steel
Mesh Count :
180 mesh
Type :
Screen Printing Frame
Size :
30×20 cm
proximate material :
6063T5
Application :
Screen printing
Thickness :
2Cm
Weight :
0.3kg
Description

Aluminium Screen Printing Different Sizes Frames With Mesh For Silk Screen Printing

Description of The Silk Screen Aluminum Frame:

We Can make any size any thickness frame,the maximun size is 2m.
Process standard and requirement our aluminium screen frame is as below:
1. The four corners of the frame shall be welded to each other at 45 degrees. The welding seam shall be tight and even around, and there shall be no de-welding or leakage welding.

2. The four sides of the frame are straight;The four corners and the two adjacent edges are perpendicular;Upper and lower sides of the frame;The frames are parallel to each other.

3. Two sides of the frame are equal in length, and linear length deviation and diagonal length deviation shall meet the standard provisions.

4. The bottom plane of the frame is the sticky mesh surface, which should be sandblasted or mechanically polished to increase the fastness of the sticky mesh.
5. The outer surface of the mesh frame should be straight and smooth without obvious scratches and depressions;Net frame overall should be flat, regular, solid;The outer surface of the frame should be of uniform color and luster, and there should be no obvious rust spots.

6. The mesh frame shall be tested for accuracy and stiffness to clarify its tensile performance;The edge of the mesh box is subject to uniform tension, with the maximum deformation in the middle of the edge (bending inward), and the deformation should not be greater than 3/1000 of the length of the edge of the frame.
material aluminum alloy 6063T5
standard size 30×20 cm
Mesh Color yellow and white
Type Aluminum Frame
Surfac polishing
Mesh You can order frame with mesh also can order frame without mesh

Specification of The Silk Screen Aluminum Frame:

Internal dimensions(inch) External dimensions(inch) profile dimensions(mm)
18x20 21x23 25x38x1.2
20x24 23x27 25x38x1.4
23x31 26x34 25x38x1.6
25x36 28x39 25x38x2.0
36x36 39x39 25x38x2.0
30x40 33x43 30x40x2.0
48x72 53.5x77.5 40x70x2.5

Features of The Silk Screen Aluminum Frame:

1.Easy to clean
2. High strength and hardness
3. It is have long working life

4.Solvent resistance
5. Performance is stable
6. Water resistance,acid and alkali resistance

Application For Silk Screen Aluminum Frame:

It can be used for PCB printing;

It can be used for Textiles printing;

It can be used for Shoes printing;

It can be used for Glass printing;

It can be used for Packaging printing


Different Sizes Aluminium Screen Printing Frames With Mesh 2Cm ThicknessDifferent Sizes Aluminium Screen Printing Frames With Mesh 2Cm Thickness
