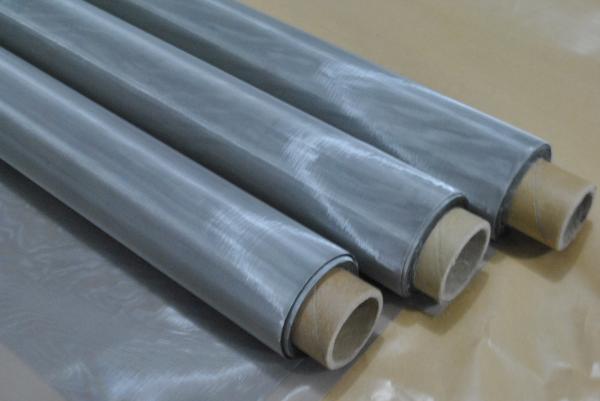

1.2 Meters Width FDA Stainless Steel Wire Mesh For Screen Printing
1.2 Meters Width FDA Stainless Steel Wire Mesh For Screen Printing
1.2 Meters Width FDA Stainless Steel Wire Mesh For Screen Printing
1.2 Meters Width FDA Stainless Steel Wire Mesh For Screen Printing
Specifications
Brand Name :
R&K
Model Number :
R&K-Stainless Steel Screen Mesh
Certification :
FDA / SGS / ISO:9001
Place of Origin :
Hebei, China(Mainland)
MOQ :
1 meter
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Meters per month
Delivery Time :
7~15 days
Packaging Details :
1 Roll/Small Box. 10 Small Boxes/Carton.
Material :
stainless steel
Weave type :
Plain
Monofilament style :
Yes
Elasticity :
Low
Mesh count :
18mesh-420mesh
Printing :
Stainless Steel Printing
Description

High Temperature Resistant Stainless Steel Screen Printing Mesh 1.2 Meters Width

Product Introduction

Screen printing refers to the use of screen as a plate base, and through the photosensitive plate making method, made with graphic screen printing plate. Screen Printing is generally divided into stainless steel printing mesh and polyester printing mesh

Material Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material)
Wire Diameter 0.015-1mm (we have our own wire drawing workshop for serve mesh production)
Mesh No 3-635 Mesh (' Mesh' means the numbers of hole in one inch line)
Weave type Plain Weave,Twilled weave,dutch weave
Roll Width 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request)
Roll Length 15m,30m,60m,100m,200m
Monofilament Yes

Procuct Feaures

Accurate in mesh size,high flow rate.

High efficient screeing,good stability,high opening rate,Low pressure loss.

flat surface,wear-resistant,good air permeability,firm in structure,easy to clean.

Product Application

1. Accurate mesh, good production reproducibility;

2. Good acid, alkali and corrosion resistance;

3. High strength, tensile force, toughness and wear resistance, long service life;

4. Unified structure, no curl, easy to use, uniform thickness, anti-static;

5. High temperature oxidation resistance, 304 stainless steel screen nominal temperature of 800 degrees Celsius,

6 normal temperature processing, that is, easy plastic processing, so that the use of stainless steel screen diversification;

7. High finish, no surface treatment, easy maintenance!

Product Specification

Specification Mesh/inch Wire Dia.(μm) Open area Ratio(%) Aperture(μm) Thickness(μm) Calendered Thickness(μm) Theoretical Ink(cm³/m²)
40*40*160 40 160 56.0 475 300-320 As order 179.1
60*60*120 60 120 51.3 303 230-245 As order 123.2
80*80*120 80 120 39.0 198 235-245 As order 92.9
80*80*90 80 90 52.0 228 175-180 As order 103.0
80*80*50 80 50 71.0 268 95-100 As order 78.0
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39.0 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50.0
165*165*35 165 35 60.0 119 70-75 As order 48.0
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42.0 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43.0
200*200*50 200 50 37.0 77 98-103 As order 42.0
230*230*35 230 35 46.7 75 72-76 50-67 37.0
250*250*40 250 40 36.8 62 86-86 50-80 34.0
250*250*30 250 30 49.7 72 64-68 40-58 30.0
250*250*35 250 35 43.0 67 76-78 57-70 32.0
270*270*35 270 35 39.4 59 76-80 58-70 30.0
300*300*30 300 30 41.7 55 66-68 40-59 28.0
325*325*30 325 30 38.0 48 66-68 45-60 24.0
325*325*28 325 28 41.2 50 63-64 40-56 26.4
325*325*23 325 23 49.8 55 49-53 37-41 25.4
350*350*25 350 25 43.0 48 52-54 41-50 18.7
400*400*23 400 23 40.7 41 50-54 35-48 19.0
400*400*18 400 18 51.3 46 36-40 28-30 20.0
500*500*18 500 18 41.7 33 36-40 23-29 15.3

1.2 Meters Width FDA Stainless Steel Wire Mesh For Screen Printing

1.2 Meters Width FDA Stainless Steel Wire Mesh For Screen Printing
