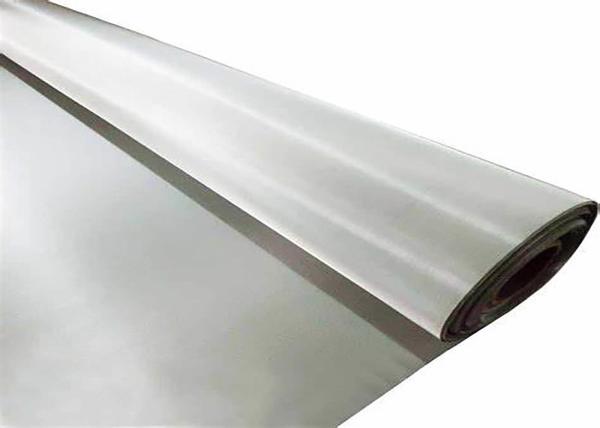

316 High Precision Plain Dutch Wire Cloth Filter , Wire Mesh For Fuel Filter
316 High Precision Plain Dutch Wire Cloth Filter , Wire Mesh For Fuel Filter
Specifications
Brand Name :
R&K
Model Number :
Dutch-07
Certification :
SGS
Place of Origin :
Hebei,China
MOQ :
1 squaremeter
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union，PayPal
Supply Ability :
1000 squaremeter per week
Delivery Time :
5-8 work days
Packaging Details :
Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Material :
Stainless steel wire mesh
Type :
dutch wire mesh
Hole shape :
Square shape
Application :
Screen
Technique :
Woven
Feature :
Fuel filter
Description

316 High Precision Plain Dutch Wire Cloth Filter , Wire Mesh For Fuel Filter

Description of stainless steel Dutch woven wire mesh

The Dutch wire mesh, one of the most popular thin mesh screens, has a mesh size of 1 x 1 to 500 x 500, a wire diameter of 0.025 mm to 2.03 mm (0.001 inch to 0.08 inch), and a hole diameter of 0.0254 mm to 23.37 mm ( 0.001 inch to 0.92 inch). As the wire diameter becomes smaller, the hole diameter becomes larger. Due to various woven mesh materials and wire mesh weaving patterns, the finished Dutch net has many types and finished woven net products. Therefore, it is a wide range of metal wire mesh products, which have a wide range of applications in the industrial, commercial and decorative fields.

Application of stainless steel Dutch wire mesh

Dutch wire mesh has endless applications in industry, commerce and decoration. Such as filters, sieves, separators, filters, baskets, gas diffusion, drying, car grill nets, vents, building and construction nets, craft paper, decorative nets, fan hoods, filtering liquids and gases, fireplace screens, food Dry, basic ventilation net, gutter protection net, high transparent net, hydraulic filter, insect net, lampshade, oil filter, pest control, safety, separation of fuel from water

Feature of the stainless steel Dutch wire mesh

The structure is stable and firm;
Excellent corrosion resistance, high temperature resistance and wear resistance;
Durable and long lasting;
Both weaving methods show a beautiful surface.

Parameters of stainless steel Dutch mesh

plain weave Dutch mesh
Number Mesh(warpxweft) Wire diameter Aperture Weight
(warpxweft) (um) (kg/m2)
32# 8 x 62 0.63mm x 0.45mm 300 5.42
40# 10 x 79 0.50mm x 0.355mm 250 3.16
48# 12 x 64 0.58mm x 0.40mm 280 2.9
55# 14 x 88 0.40mm x 0.30mm 180 2.54
76# 19 x 140 0.315mm x 0.20mm 140 1.88
80# 20 x 300 0.35mm x 0.20mm - 3.6
95# 24 x 110 0.355mm x 0.25mm 120 2.45
100# 25 x 140 0.28mm x 0.20mm 100 1.95
120# 30 x 150 0.25mm x 0.18mm 80 1.68
140# 35 x 175 0.224mm x 0.16mm 71 1.52
160# 40 x 200 0.20mm x 0.14mm 60 1.4
180# 45 x 250 0.16mm x 0.112mm 56 1.09
200# 50 x 250 0.14mm x 0.11mm 53 1.04
220# 55.5 x 280 0.14mm x 0.10mm 50 0.92
240# 65 x 330 0.11mm x 0.08mm 36 0.71
280#(1) 70 x 350 0.11mm x 0.08mm 35 0.72
280#(2) 70 x 385 0.11mm x 0.07mm 32 0.75
300# 78 x 700 0.11mm x 0.08mm 30 1.39
315#(1) 80 x 400 0.10mm x 0.065mm 40 0.62
315#(2) 80 x 600 0.10mm x 0.06mm - 0.74
315#(3) 80 x 800 0.15mm x 0.04mm - 0.77
320# 81 x 780 0.10mm x 0.07mm 30 1.22
354# 90 x 550 0.12mm x 0.05 - 0.667
Width:1m-1.6m
