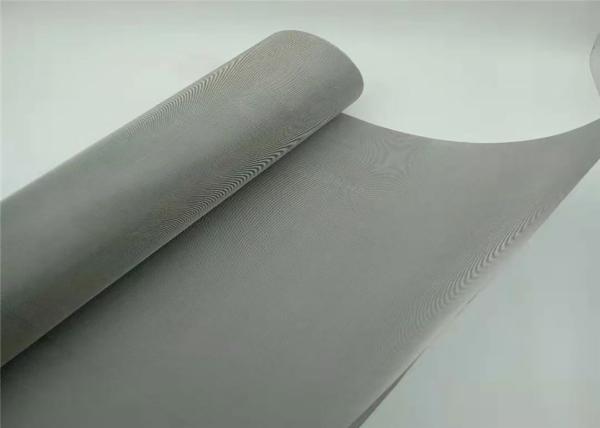

AISI 304 316 Stainless Steel Woven Wire Mesh High Temperature Resistance

Description of stainless steel wire mesh

The oil-water separation net is made of JLX series coalescing filter elements, FLX series separation filter elements, various diesel locomotive filter elements, hydraulic oil filter elements, oil and gas separation filter elements, precision filter elements; various air filter elements, fuel filter elements, oil filter elements, and spray recycling, environmental protection and purification The main raw material for other types of products.
The oil-water separation network is widely used in the filtration industry and can play a role of oil-water separation in various fuel, aviation kerosene, diesel, gasoline, lubricating oil, hydraulic oil and other pipeline systems, which can automatically drain water and allow oil to pass smoothly. Can remove free water and impurities in oil.

Specification of stainless steel wire mesh

Material: Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material)

Wire Diameter: 0.015-1mm (we have our own wire drawing workshop for serve mesh production)
Mesh No.:3-635 Mesh (' Mesh' means the numbers of hole in one inch line)
Weave type: Plain Weave,Twilled weave,dutch weave.
Roll Width: 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request)
Roll Length: 15m,30m,60m,100m,200m

Appication of stainless steel wire mesh

Mainly used in transformer oil, turbine oil, hydraulic oil, gasoline, diesel, etc. The advantage of PTFE green stainless steel mesh is that it is not easy to corrode and resist friction.

widely used in aerospace, petroleum, chemical industry
scientific research and transportation industries
electroplating industry for pickling mesh, printing mesh
battery industry and a variety of sophisticated filtration products.

Feature of stainless steel wire mesh

Product temperature resistance, acid resistance, alkali resistance.

Temperature resistance, acid resistance, alkali resistance.
The oil-water separation filter has a temperature resistance of 260 ° C, an acid resistance of 86%, and an alkali resistance of 90%.
Its function is to separate the water and oil in the oil. It has a small resistance to the oil and allows the oil to pass smoothly. It has a large resistance to the water. 10KG pressure water cannot pass through, so it plays the role of oil-water separation.
