80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry
80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry
80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry
80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry
80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry
80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry
Specifications
Brand Name :
R&K
Model Number :
SS-26
Certification :
SGS
Place of Origin :
Hebei
MOQ :
1 squaremeter
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union，PayPal
Supply Ability :
1000 squaremeter per week
Delivery Time :
5-8 workday
Packaging Details :
inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Material :
304 stainless steel
Usage :
Liquid filter / gas filter
Weave style :
Plain weave
Aperture :
0.1mm
Color :
Silver
Advantage :
Superior wire
Type :
Wire cloth
Hole shape :
Square hole
Description

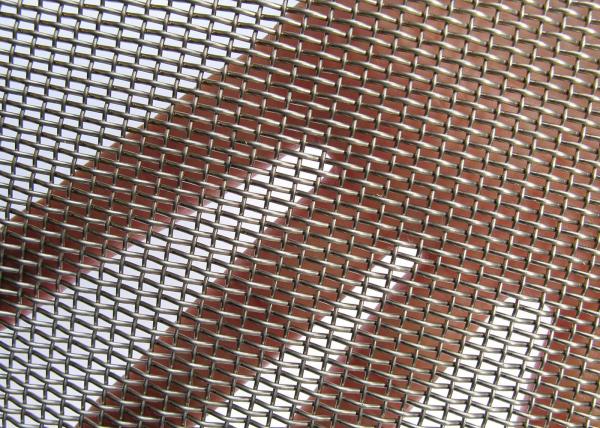

80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry

80 mesh stainless steel screen, one of the most popular thin mesh woven mesh, mesh size from 1×1 to 500×500, steel wire diameter can be 0.025mm to 2.03mm (0.001 inch to 0.08 inch), hole diameter can be 0.0254 mm up to 23.37 mm (0.001 inch to 0.92 inch). As the wire diameter becomes smaller, the hole diameter becomes larger. The 80 mesh stainless steel screen can provide a variety of raw materials, wire diameter, mesh number (aperture), weaving method, and can also be cut into special plates or types according to application and engineering requirements.


Various woven mesh materials and wire mesh weaving patterns make the 80 mesh stainless steel mesh made of various types and finished woven mesh products.


Therefore, it is a general-purpose wire mesh product with a wide range of applications in the industrial, commercial and decorative fields.

80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry

(Plain weave ) (Twill weave )

80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry

80 mesh stainless steel screen can provide a variety of raw materials, wire diameter, mesh (aperture), weaving method, can also be cut into special plates or types according to application and engineering requirements.

Package of the stainless steel wire mesh

A roll wrapped in kraft paper and then placed in a carton or tray;
Sheets are in a wooden box or tray.

80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry80 Mesh 0.025 MM Diameter Stainless Steel Wire Filter Mesh For Commercial Industry

Parameter of stainless steel mesh

mesh Wire Diameter Aperture Open Area Weight
Inch MM Inch MM (%) (kg /Square meter)
1x1 0.08 2.03 0.92 23.37 92 2
2X2 0.063 1.6 0.437 11.1 87.4 2.5
3X3 0.054 1.37 0.279 7.09 83.8 2.7
4X4 0.047 1.19 0.203 5.16 81.2 2.7
5X5 0.041 1.04 0.159 4.04 79.5 2.6
8X8 0.02 0.5 0.105 2.675 71 1
9X9 0.02 0.5 0.091 2.32 67.7 1.1
10X10 0.025 0.64 0.075 1.91 74.9 2
12X12 0.02 0.508 0.063 1.6 75.9 1.5
12X12 0.022 0.55 0.062 1.567 54.8 1.815
14X14 0.02 0.508 0.051 1.3 71.9 1.8
14X14 0.0177 0.45 0.054 1.36 75.14 1.417
16X16 0.016 0.4 0.047 1.188 55 1.28
16X16 0.018 0.457 0.0445 1.13 71.2 1.6
18X18 0.017 0.432 0.0386 0.98 69.4 1.6
20X20 0.02 0.24 0.03 0.76 76 0.56
20X20 0.016 0.33 0.034 0.86 72.2 1.1
20X20 0.014 0.35 0.036 0.92 52.5 1.225
20X20 0.016 0.4 0.034 0.87 46.9 1.6
20X20 0.0177 0.45 0.0322 0.82 41.7 2.025
22X22 0.012 0.3 0.034 0.854 54.76 0.99
24X24 0.014 0.35 0.028 0.708 44.77 1.47
30X30 0.014 0.35 0.0195 0.5 34.6 1.84
30X30 0.012 0.305 0.0213 0.54 63.9 1.4
30X30 0.0094 0.24 0.0243 0.62 72.1 0.84
35X35 0.0079 0.2 0.021 0.526 52.5 0.7
35X35 0.0098 0.25 0.0187 0.475 42.92 1.09
40X40 0.0079 0.2 0.017 0.435 46.9 0.8
40X40 0.01 0.254 0.015 0.38 59.9 1.3
40X40 0.014 0.35 0.011 0.285 20.14 2.45
50X50 0.0055 0.14 0.0145 0.368 72.4 0.48
50X50 0.0079 0.2 0.012 0.308 36.76 1
60X60 0.0047 0.12 0.012 0.303 71.6 0.42
60X60 0.0059 0.15 0.0107 0.273 64.5 0.65
60X60 0.007 0.18 0.0096 0.243 33 0.972
80X80 0.047 0.12 0.0078 0.1975 38.7 0.576
80X80 0.0055 0.14 0.0069 0.117 45.5 0.76
100X100 0.0039 0.1 0.006 0.154 36.76 0.5
100X100 0.0045 0.114 0.0055 0.14 55.1 0.59
100X100 0.004 0.102 0.006 0.152 59.8 0.49
120X120 0.0028 0.07 0.0057 0.147 67.7 0.29
120X120 0.003 0.08 0.0052 0.132 38.7 0.384
150X150 0.0024 0.06 0.0043 0.11 64.7 0.26
150X150 0.0028 0.07 0.0039 0.1 58.8 0.38
165X165 0.0019 0.05 0.0041 0.104 67.5 0.2
180X180 0.0019 0.05 0.0035 0.091 64.5 0.22
180X180 0.0024 0.06 0.0031 0.081 57.4 0.32
200X200 0.0019 0.05 0.003 0.077 60.6 0.24
200X200 0.0024 0.06 0.0026 0.067 52.7 0.35
250X250 0.0016 0.04 0.0024 0.0616 60.6 0.2
270X270 0.0016 0.04 0.0021 0.054 57.4 0.21
300X300 0.0016 0.04 0.0018 0.045 53.5 0.23
325X325 0.0014 0.035 0.0017 0.0432 55.3 0.2
400X400 0.0012 0.03 0.0013 0.0335 52.7 0.18
500X500 0.0009 0.025 0.001 0.0258 50.7 0.15
500X500 0.0012 0.03 0.0008 0.0208 16.76 0.225
635X635 0.0007 0.018 0.0008 0.022 55 0.1
