316 Marine Grade Corrosion Resistance 100 mesh Stainless Steel Woven Mesh
316 Marine Grade Corrosion Resistance 100 mesh Stainless Steel Woven Mesh
316 Marine Grade Corrosion Resistance 100 mesh Stainless Steel Woven Mesh
316 Marine Grade Corrosion Resistance 100 mesh Stainless Steel Woven Mesh
316 Marine Grade Corrosion Resistance 100 mesh Stainless Steel Woven Mesh
316 Marine Grade Corrosion Resistance 100 mesh Stainless Steel Woven Mesh
Specifications
Brand Name :
R&K
Model Number :
R&K-SS
Certification :
ISO9001:2008,SGS,FDA
Place of Origin :
Hebei,China
MOQ :
10 pieces
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Trade assurance.Credit card.
Supply Ability :
2000 square meter per month
Delivery Time :
5-8 work days
Packaging Details :
Packing by rolls or folded then plastic bags inside carton or other packages according to the customers' demand.
Material :
stainless steel 304
Weave type :
Plain/Twill/Dutch
Mesh count :
10-600
Type :
filter cylinder
Size :
as requirements
Application :
Filtration
Description

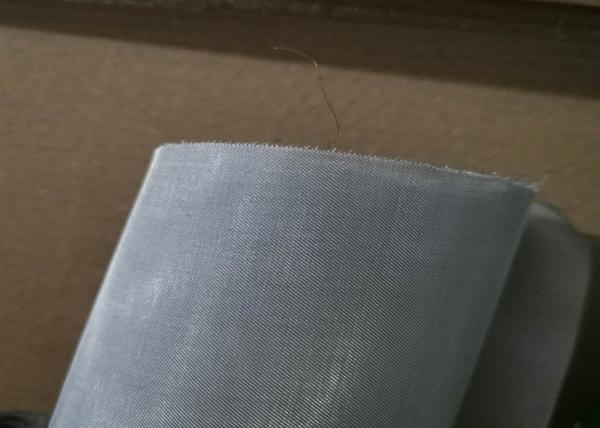

316 Marine Grade Corrosion Resistance 100 mesh Stainless Steel Woven Mesh

Stainless steel woven mesh can be used for a variety of applications, including filtration, ventilation, machine guards, and insect control. The woven 100 mesh is a very fine mesh with very small pores. Given that the material is very soft, the support of the frame may be required to increase rigidity.

The number of grids refers to the number of holes in the linear inches of the material, that is, if we place a ruler on the grid, our 100 grids will have 100 holes per linear inch.

This screen is only suitable for our higher quality grade 316 stainless steel (sometimes called marine grade). Grade 316 stainless steel contains molybdenum. The addition of molybdenum can enhance its corrosion resistance. If the material is to be used in salt water or coastal environments, molybdenum should be selected.

The price is generally calculated according to each volume. Usually a roll is 30 meters.

Advantages of stainless steel filters:

1. The filtering effect of the stainless steel filter is very stable, and it is not easy to deform during use.

2. The stainless steel filter screen is sturdy, the material is resistant to high pressure, and can withstand greater working intensity.

3. The stainless steel filter is easy to clean, especially suitable for backwashing.

4. The stainless steel filter screen can withstand high temperatures of about 480°C.

5. The stainless steel filter screen has corrosion resistance and wear resistance.

6. The stainless steel filter screen is easy to process, whether it is cutting, bending, stretching, welding and other processes can be completed well.

Application of stainless steel filters :

Our products can be used in a variety of different industries, not only for machinery, such as the spinneret and component filtration of various imported and domestic types of "chemical fiber spinning machine, leather and non-woven equipment, twin screw extruder" . And it can be used to make earphone nets, button batteries, and speakers.

Specification of the stainless steel mesh:

Mesh/Inch Wire Diameter Aperture Open Area Weight
(kg/Square
meter)
Inch MM Inch MM
1*1 0.08 2.03 0.92 23.37 92 2
2*2 0.063 1.6 0.437 11.1 87.4 2.5
3*3 0.054 1.37 0.279 7.09 83.8 2.7
4*4 0.047 1.19 0.203 5.16 81.2 2.7
5*5 0.041 1.04 0.159 4.04 79.5 2.6
10*10 0.025 0.64 0.075 1.91 74.9 2
12*12 0.02 0.508 0.063 1.6 75.9 1.5
14*14 0.02 0.508 0.051 1.3 71.9 1.8
16*16 0.018 0.457 0.445 1.13 71.2 1.6
18*18 0.017 0.432 0.386 0.98 69.4 1.6
20*20 0.02 0.24 0.03 0.76 76 0.56
20*20 0.016 0.33 0.034 0.86 72.2 1.1
30*30 0.12 0.305 0.213 0.54 63.9 1.4
30*30 0.0094 0.24 0.243 0.62 72.1 0.84
40*40 0.01 0.254 0.015 0.38 59.9 1.3
50*50 0.0055 0.14 0.0145 0.368 72.4 0.48
60*60 0.0047 0.12 0.012 0.303 71.6 0.42
60*60 0.0059 0.15 0.0107 0.273 64.5 0.65
80*80 0.0055 0.14 0.0069 0.117 45.5 0.76
100*100 0.0045 0.114 0.0055 0.14 55.1 0.59
100*100 0.004 0.102 0.006 0.152 59.8 0.49
120*120 0.0028 0.07 0.0057 0.147 67.7 0.29
150*150 0.0024 0.06 0.0043 0.11 64.7 0.26
150*150 0.0028 0.07 0.0039 0.1 58.8 0.38
165*165 0.0019 0.05 0.0041 0.104 67.5 0.2
180*180 0.0019 0.05 0.0035 0.091 64.5 0.22
180*180 0.0024 0.06 0.0031 0.081 57.4 0.32
200*200 0.0019 0.05 0.003 0.077 60.6 0.24
200*200 0.0024 0.06 0.0026 0.067 52.7 0.35
250*250 0.0016 0.04 0.0024 0.0616 60.6 0.2
270*270 0.0016 0.04 0.0021 0.054 57.4 0.21
300*300 0.0016 0.04 0.0018 0.045 53.5 0.23
325*325 0.0014 0.035 0.0017 0.0432 55.3 0.2
400*400 0.0012 0.03 0.0013 0.0335 52.7 0.18
500*500 0.0009 0.025 0.001 0.0258 50.7 0.15
635*635 0.0007 0.018 0.0008 0.022 55 0.1

316 Marine Grade Corrosion Resistance 100 mesh Stainless Steel Woven Mesh
