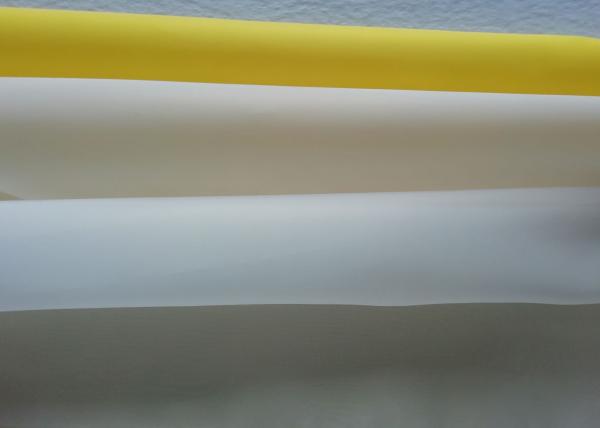

Plain Weave 90 Mesh 3.6M Width 100% Polyester Silk Screen Printing Mesh
Plain Weave 90 Mesh 3.6M Width 100% Polyester Silk Screen Printing Mesh
Plain Weave 90 Mesh 3.6M Width 100% Polyester Silk Screen Printing Mesh
Plain Weave 90 Mesh 3.6M Width 100% Polyester Silk Screen Printing Mesh
Plain Weave 90 Mesh 3.6M Width 100% Polyester Silk Screen Printing Mesh
Plain Weave 90 Mesh 3.6M Width 100% Polyester Silk Screen Printing Mesh
Specifications
Brand Name :
R&K
Model Number :
R&K-Polyester mesh
Certification :
MSDS,ROSH,SGS,ISO 9001
Place of Origin :
HEBEI ,CHINA
MOQ :
10 meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Meters per month
Delivery Time :
7~15 days
Packaging Details :
1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Monofilament style :
Yes
Elasticity :
Low
Material :
100% Polyester
Mesh count :
18mesh-420mesh
Color :
white,yellow
Width :
0.6M-3.6M
Description

Color Printing Plain Weave 90 Mesh Polyester Silk Screen Printing Mesh

Product Introduction

As a wide range of printing, screen printing can be divided into textile printing, plastic printing, metal printing, ceramic printing, glass printing, electronic product printing, lottery screen printing, electric decoration advertising board screen printing, etc. Metal advertising board screen printing, stainless steel screen printing, light reflector screen printing, screen transfer anodized aluminum, screen printing and lacquer screen printing, etc.

The most common weaving pattern in Plain screen printing mesh is called "plain weave" and will be designated on labels as "PW." It is a simple over-and-under weaving pattern. "Twill weave (TW)" is used to create thicker, sturdier screens and relies on complex patterns of weaving, which vary depending on the manufacturer. Twill weave mesh will be thicker than plain weave even if the mesh count is identical. The Screen Printing Technical Foundation compared the different weave's performance and found that twill weave transferred somewhat less ink than plain weave.

Product Application

Printing mesh for Textile Printing mesh for T-shirt/Garment
Printing mesh for Flatbed Textile
Printing mesh for High-end Textile
Printing mesh for Electronics Printing mesh for Printed Circult BoardsPrinting mesh for Membrane Switches
Printing mesh for Glass Pharmacy Glass Appliance Printing
Home Appliance Printing
Automotive Glass Printing
Glass Containers Printing
Printing mesh for Ceramics
Printing mesh for CDs/DVDs

Product Features

1 . Polyester printing screen has the characteristics of high tension threshold and breaking point

2 . Polyester printing screen belongs to high modulus, low elongation monofilament polyester yarn

3 . It is in minimal tension loss during stretching process

4 . Polyester printing mesh has the ability of good antistatic

5 . Polyester printing mesh does not have many cumbersome surface treatments

Product Specification

Mesh Count Diameter (Mesh/cm μm) Mesh Count(Mesh/inch) Aperture(μm) Thread Diameter(μm)
13-150PW(SL) 33 619 150
21-80PW(S) 55 296 80
21-150PW(SL) 55 326 150
24-100PW(T) 60 316 100
28-140PW(SL) 70 217 140
32-55PW(S) 81 257 55
32-64PW(S) 81 248 64
32-100PW(T) 81 212 100
36-90PW(T) 92 183 90
39-55PW(S) 100 177 55
40-80PW(T) 103 166 80
43-80PW(T) 110 149 80
47-45PW(S) 120 166 80
47-55PW(S) 120 152 55
48-70PW(T) 122 133 70
53-45PW(S) 135 143 45*2
53-55PW(S) 135 133 70
54-64PW(T) 137 115 64
54-70PW(HD) 137 109 70
61-64PW(T) 155 90 64
64-55PW(S) 160 98 55
64-64PW(T) 160 85 64
68-55PW(S) 175 85 55
68-64PW(T) 175 78 64
72-48PW(S) 182 90 48
72-55PW(T) 182 85 55

Plain Weave 90 Mesh 3.6M Width 100% Polyester Silk Screen Printing Mesh
