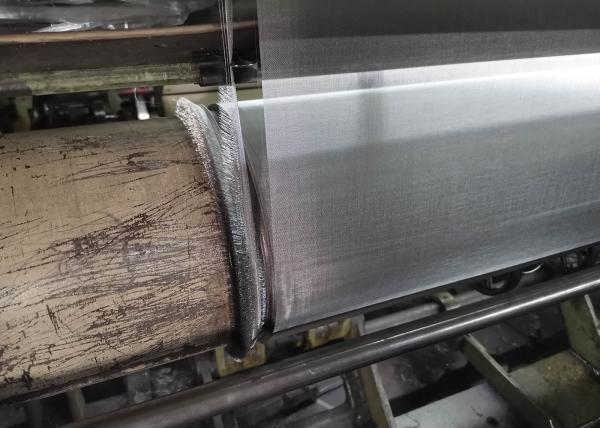

350 400 Mesh Stainless Steel Wire Screen Printing Mesh Roll Plain Weave
350 400 Mesh Stainless Steel Wire Screen Printing Mesh Roll Plain Weave
350 400 Mesh Stainless Steel Wire Screen Printing Mesh Roll Plain Weave
350 400 Mesh Stainless Steel Wire Screen Printing Mesh Roll Plain Weave
Specifications
Brand Name :
R&K
Model Number :
R&K-TH
Certification :
FDA
Place of Origin :
Hebei,China
MOQ :
50 meters
Price :
negotiation
Payment Terms :
L/C，T/T，Western Union，Paypal，Trade assurance
Supply Ability :
2000 square meter per month
Delivery Time :
Within 8 work days
Packaging Details :
Waterproof,woven bags inside,carton or plywood case outside.
Product name :
high quality 350 400 mesh screen printing stainless steel wire screen printing mesh roll
Color :
Silver
Application :
Kinds Filtration Industry
width :
1m,1.22m
Weave style :
Plain weave.
mesh count :
350,400 mesh
Description




high quality 350 400 mesh screen printing stainless steel wire screen printing mesh roll


Description of stainless steel screen mesh:

In the screen printing process, different grid sizes can be used for different applications. What is the mesh size? You may ask. Well, the mesh size is a measure of the intersecting polyester threads per square inch of screen (silk for centuries ago, so called "screen printing!"). For example, a 110 mesh screen will have 110 crossing lines per square inch. The higher the grid number, the finer the mesh.
The first factor to remember when choosing the grid size is the detail of the image. For example, if your image has high detail, the low-mesh screen simply cannot accommodate the detail. Thin lines or dots in the image will only fall into the holes in the grid, making you poorly express the appearance of the image. If your detail image is low and you use too many meshes, you will run into insufficient ink to cover your shirt.

MaterialSUS304,304L,316,316L
Hole ShapeSquare
Width1.0-1.5m
size per rollusually 1meter or 1.2meter wide,30meter per roll
wire diameterMin diameter is0.018mm
aperture sizeMin is 1Micron


Stainless steel filter wire mesh refers to stainless woven wire mesh used in filter liquid,gas and pulp.The opening can be square, rectangular or special opening.Normally,this kind of wire mesh has standard opening sizes,uniform opening, good permeability and high strength. The raw materials should be chosen according to different environments of applications.

Features of stainless steel wire mesh:

  • • Standard polyamide mesh
    • High wear resistance
    • High printing performance on 3D objects
    • Excellent ink flow


Application of stainless steel mesh roll :

stainless steel filter wire mesh is used in petroleum,chemical industry,chemical fiber, food
,medicine,fertilizer,paper-making,airspace.

Specification of the stainless steel mesh roll:

Mesh/inchWire diameter (inch)Aperture (inch)Open area
1*10.0800.92092.0
2*20.0630.43787.4
3*30.0540.27983.8
4*40.0470.20381.2
5*50.0410.15979.5
10*100.0240.07674.9
12*120.0200.06475.9
16*160.0180.04571.2
18*180.0160.039869.4
20*200.0090.04176.0
30*300.0120.038263.9
40*400.00980.01572.1
50*500.00790.012136.7
60*600.00470.01238.7
80*800.00470.010745.5
100*1000.00390.00659.8
150*1500.00240.004341.6
165*1650.00180.004350
180*1800.00190.003664.5
200*2000.00190.00360.6
250*2500.00120.002849.8
270*2700.00140.002360
300*3000.00120.002257
325*3250.00140.001755.3
400*4000.00120.001352.7
500*5000.00090.00150.7
635*6350.00070.000855.0

350 400 Mesh Stainless Steel Wire Screen Printing Mesh Roll Plain Weave350 400 Mesh Stainless Steel Wire Screen Printing Mesh Roll Plain Weave
