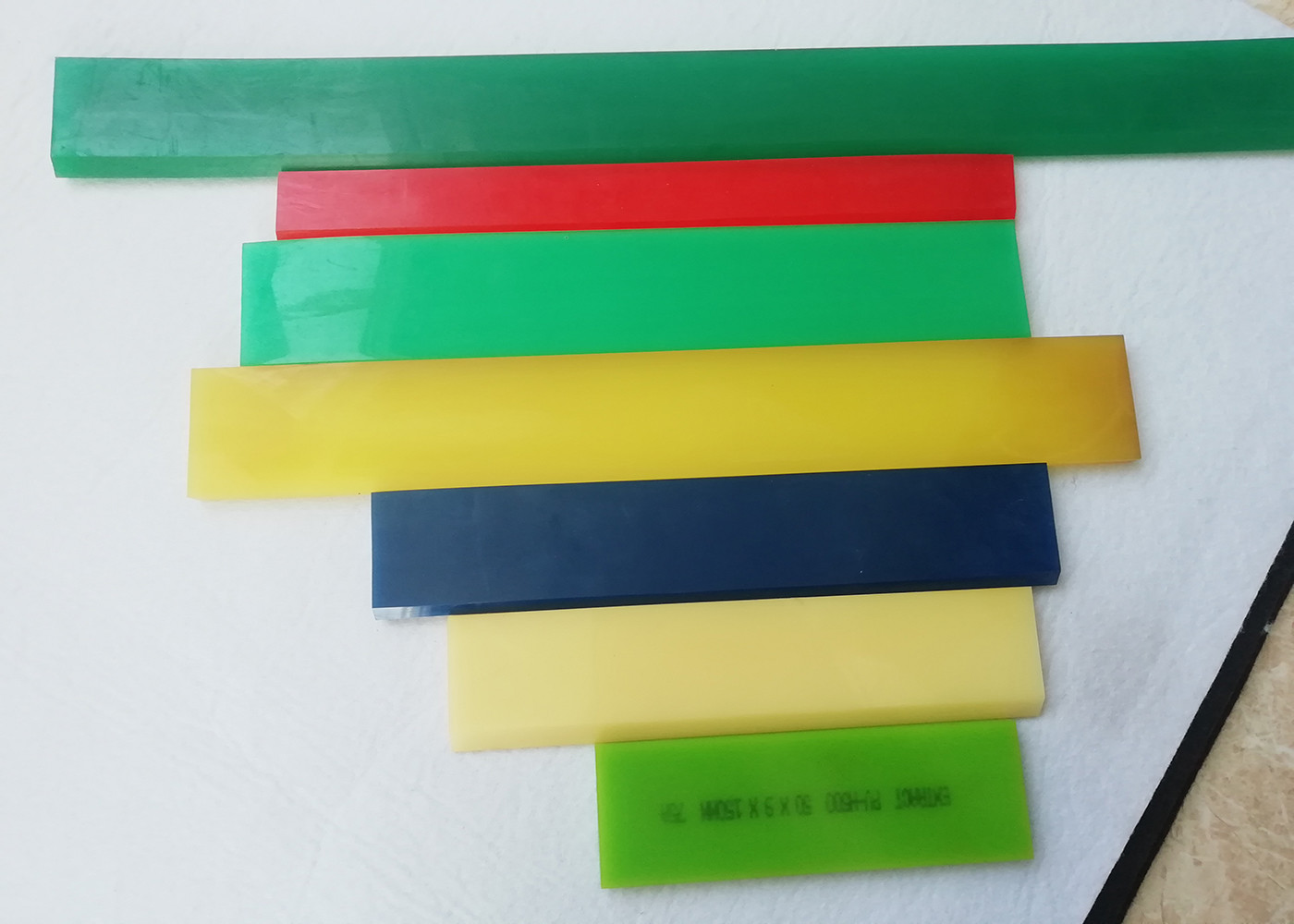

Printing Scraper Yellow 75A 80A Screen Printing Squeegee PU 50*9*4000
Product Introduction

Scraping glue is used in the process of screen printing, also known as glue scraping. Most of them are made of PU material. According to the characteristics of the substrate of screen printing, the precision requirements of printing patterns and the different printing methods, different hardness and different cross-section shapes of scraping glue can be selected

Product Function

In screen printing, the function of the squeegee mainly has the following four aspects:
1.It can transfer the ink to the substrate through the screen.
2. It can scrape off excess ink from the screen.
3.It can keep the screen in contact with the substrate line.
4. It can print substrates with different shapes.

Product Specification

Product Features

1. It has the High Abrasion property

2. It has Super Solvent

3. It has High Tolerance

4. It has High Cut Resistance

5. It can Cut Customization

6. It could Size Customization

7.The price of our products is favorable and the quality is guaranteed

How to choose a good squeegee

1. Considering hardness: The squeegee is usually made of polyurethane. The hardness of the squeegee is measured with a hardness tester. The hardness, size and blade shape of the squeegee determine the flexibility, flexibility and pressure of the squeegee. The hardness ranges from 55 to 90 degrees (Shore A). The hardness value is measured with a Shore A hardness tester. 55A-65A is a low-hard rubber scraper, 66A-75A is a medium hard, and more than 75A is a high hard.

2. Considering from Effective width: refers to the width of the squeegee when the squeegee is loaded into the aluminum squeegee and extends from the aluminum squeegee. This width is very important and determines the bending of the squeegee under pressure. The curvature is a cubic value of the effective width. For example, twice the effective width gives a curvature greater than 23 = 8.

3.Considering from squeegee bending:The squeegee bending will cause two changes: the angle between the squeegee and the screen changes; the printing pressure transmitted to the substrate is reduced. For example, the rubber scraper is compared to a group of springs. When the spring is stressed at a certain angle, the spring starts to bend, and the transmitted force is getting smaller and smaller. The squeegee printing angle is reduced, the printing pressure is insufficient, and the printing effect is not satisfactory. The printing angle is small, the printing pressure is reduced, the ink volume is large, and the ink layer is thickened. (In this case, the printing operator will increase the printing pressure, the squeegee curvature will increase, and the ink layer obtained is still not ideal. The solution is to increase the squeegee hardness and the squeegee angle.) This is the effectiveness of the squeegee. The effect of width on the four functions of the squeegee.
