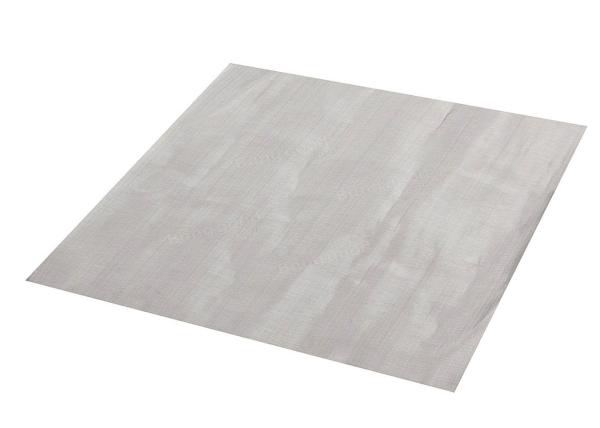

316 SGS 2X2 Stainless Steel Wire Mesh For Gas Filtration
316 SGS 2X2 Stainless Steel Wire Mesh For Gas Filtration
316 SGS 2X2 Stainless Steel Wire Mesh For Gas Filtration
316 SGS 2X2 Stainless Steel Wire Mesh For Gas Filtration
316 SGS 2X2 Stainless Steel Wire Mesh For Gas Filtration
316 SGS 2X2 Stainless Steel Wire Mesh For Gas Filtration
Specifications
Brand Name :
R&K
Model Number :
SS-17
Certification :
SGS
Place of Origin :
Hebei
MOQ :
1 squaremeter
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union，PayPal
Supply Ability :
1000 squaremeter per week
Delivery Time :
5-8 workday
Packaging Details :
inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Material :
316
Usage :
Gas Filtration
Weave style :
Plain weave
Advantage :
High strength
Type :
Wire cloth
Hole shape :
Square hole
Description

316 Stainless Steel Wire Cloth Mesh Stainless Steel Wire And Mesh Screen For Gas Filtration

Description:
Stainless steel wire mesh is made of high-quality stainless steel wire, molded under specific temperature conditions, and then drawn into the provided wire by a wire drawing machine. After that, the machine is woven into a net.

Features:
The stainless steel wire mesh has precise structure, uniform mesh, good mesh filtration precision, wear resistance, high temperature resistance, acid resistance, and corrosion resistance.

Application:
Stainless steel woven wire mesh can be used as a woven wire mesh for filtering liquids, solids and gases in the filtration industry, such as filter discs, filter tubes, immersion filter baskets, test screens, filter elements or filters. Stainless steel mesh is used for screen filtration under acidic and alkaline conditions. It is widely used in mud mesh in petroleum industry, filter mesh in chemical fiber industry and pickling mesh in electroplating industry. In addition, stainless steel wire mesh is also used in the construction industry, sand filtration, liquid and gas filtration.

Parameter

mesh Wire Diameter Aperture Open Area Weight
Inch MM Inch MM (%) (kg /Square meter)
1x1 0.08 2.03 0.92 23.37 92 2
2X2 0.063 1.6 0.437 11.1 87.4 2.5
3X3 0.054 1.37 0.279 7.09 83.8 2.7
4X4 0.047 1.19 0.203 5.16 81.2 2.7
5X5 0.041 1.04 0.159 4.04 79.5 2.6
8X8 0.02 0.5 0.105 2.675 71 1
9X9 0.02 0.5 0.091 2.32 67.7 1.1
10X10 0.025 0.64 0.075 1.91 74.9 2
12X12 0.02 0.508 0.063 1.6 75.9 1.5
12X12 0.022 0.55 0.062 1.567 54.8 1.815
14X14 0.02 0.508 0.051 1.3 71.9 1.8
14X14 0.0177 0.45 0.054 1.36 75.14 1.417
16X16 0.016 0.4 0.047 1.188 55 1.28
16X16 0.018 0.457 0.0445 1.13 71.2 1.6
18X18 0.017 0.432 0.0386 0.98 69.4 1.6
20X20 0.02 0.24 0.03 0.76 76 0.56
20X20 0.016 0.33 0.034 0.86 72.2 1.1
20X20 0.014 0.35 0.036 0.92 52.5 1.225
20X20 0.016 0.4 0.034 0.87 46.9 1.6
20X20 0.0177 0.45 0.0322 0.82 41.7 2.025
22X22 0.012 0.3 0.034 0.854 54.76 0.99
24X24 0.014 0.35 0.028 0.708 44.77 1.47
30X30 0.014 0.35 0.0195 0.5 34.6 1.84
30X30 0.012 0.305 0.0213 0.54 63.9 1.4
30X30 0.0094 0.24 0.0243 0.62 72.1 0.84
35X35 0.0079 0.2 0.021 0.526 52.5 0.7
35X35 0.0098 0.25 0.0187 0.475 42.92 1.09
40X40 0.0079 0.2 0.017 0.435 46.9 0.8
40X40 0.01 0.254 0.015 0.38 59.9 1.3
40X40 0.014 0.35 0.011 0.285 20.14 2.45
50X50 0.0055 0.14 0.0145 0.368 72.4 0.48
50X50 0.0079 0.2 0.012 0.308 36.76 1
60X60 0.0047 0.12 0.012 0.303 71.6 0.42
60X60 0.0059 0.15 0.0107 0.273 64.5 0.65
60X60 0.007 0.18 0.0096 0.243 33 0.972
80X80 0.047 0.12 0.0078 0.1975 38.7 0.576
80X80 0.0055 0.14 0.0069 0.117 45.5 0.76
100X100 0.0039 0.1 0.006 0.154 36.76 0.5
100X100 0.0045 0.114 0.0055 0.14 55.1 0.59
100X100 0.004 0.102 0.006 0.152 59.8 0.49
120X120 0.0028 0.07 0.0057 0.147 67.7 0.29
120X120 0.003 0.08 0.0052 0.132 38.7 0.384
150X150 0.0024 0.06 0.0043 0.11 64.7 0.26
150X150 0.0028 0.07 0.0039 0.1 58.8 0.38
165X165 0.0019 0.05 0.0041 0.104 67.5 0.2
180X180 0.0019 0.05 0.0035 0.091 64.5 0.22
180X180 0.0024 0.06 0.0031 0.081 57.4 0.32
200X200 0.0019 0.05 0.003 0.077 60.6 0.24
200X200 0.0024 0.06 0.0026 0.067 52.7 0.35
250X250 0.0016 0.04 0.0024 0.0616 60.6 0.2
270X270 0.0016 0.04 0.0021 0.054 57.4 0.21
300X300 0.0016 0.04 0.0018 0.045 53.5 0.23
325X325 0.0014 0.035 0.0017 0.0432 55.3 0.2
400X400 0.0012 0.03 0.0013 0.0335 52.7 0.18
500X500 0.0009 0.025 0.001 0.0258 50.7 0.15
500X500 0.0012 0.03 0.0008 0.0208 16.76 0.225
635X635 0.0007 0.018 0.0008 0.022 55 0.1
