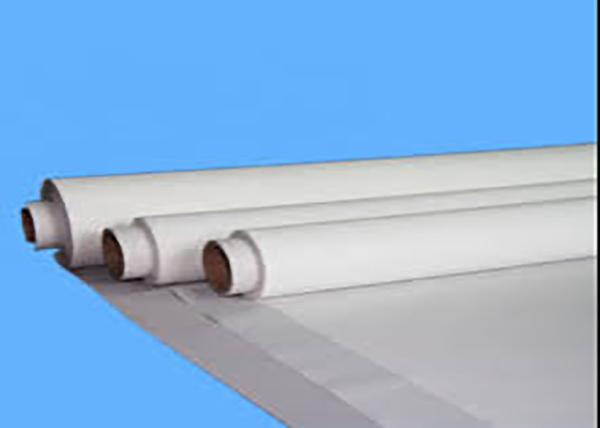

Food Grade White 100% Nylon Material 90 Micron 0.6-3 Meters Wide Nylon Filter Mesh

Product Introduction

Nylon Mesh is a chemical fiber woven mesh made by chemical processing of nylon, nylon, polyester, and nylon fibers as raw materials. Jinlun has the function of high temperature and alkali resistance, polyethylene has the effect of acid resistance, nylon mesh is the general name of these chemical fiber woven mesh. Nylon mesh includes: (nylon blend,) nylon mesh, polyvinyl chloride mesh, sunshade mesh.

Nylon filter mesh is made by 100% polyamide yarn,the material be shown in market with PA6,PA66.all of the material can pass the FDA certificate,Nylon filter mesh have heat resistant,normaly can work under 200℃ temperature.it is widely used for industrial filtration and separation.

Product Specification

Material:100 % polyamide yarn
Mesh count: 200 mesh per inch
Mesh opening: 75 micron
Mesh range:13mesh - 500 mesh
Weave style of 200 mesh :plain weave
Color:white is popular,we also can make accept pink,purple color. custom-made is abailable.

Thickness:51-1100 micron

Hole Shape:square

Product Features

1. Imported polyamide monofilament fiber woven filter, wear, high strength, long life, the use of good results
2. High-dust collection, early resistance, dust and strong performance, can be used repeatedly cleaning
3. Ultra-thin aluminum alloy frame can be made with a handle interconnected into a group, easy to change and safe

Product Application


Nylon filter mesh is mainly used in filtration(water,milk,soybean,fruit juice,cheese) and separation,like chemical insudtry,paint,ink,oil products filtration,paint filter,alcohol filter, liquid filtration quality,powder filtration.pharmaceutical and so on.

Nylon filter cloth features the greatest abrasion resistance among the other three frequently used filter fabrics including polypropylene, polyester and cotton. It is often found in filtration applications of abrasive dusts and wet abrasive solids where abrasion resistance plays an important factor.

Product Characteristic

Excellent abrasion resistance.
Excellent cake release.
Fine particle filtration.
Ideal for low temperature.
High tensile strength.
Good elasticity is ideal for continuous flexing purposes.
Suitable for caustic alkali atmosphere like dyestuffs.
Working temperature: 248 °F (constant); 275 °F (surge).
