Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material
Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material
Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material
Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material
Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material
Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material
Specifications
Brand Name :
R&K
Model Number :
R&K
Certification :
SGS,ISO9001
Place of Origin :
Hebei , China
MOQ :
1 Piece/Pieces
Price :
negotiation
Payment Terms :
L/C ,T/T ,Paypal, Western Union, Trade Assurance,credit card
Supply Ability :
100 Piece/Pieces per Day
Delivery Time :
Shipped in 7 days after payment
Packaging Details :
BOX
Material :
Wooden
Sizes :
35mm*35mm,28mm*28mm
Brand name :
R&K
Product name :
Wooden Screen Frames With 120 Mesh For Manual Screen Printing Material
Weave type :
Plain
Mesh count :
18mesh-420mesh
Description

Wooden Aluminium Screen Frames 120 Mesh For Manual Screen Printing Material

Screen printing wooden frame description:

Selection of the frame:

According to the material, the frame generally has a wooden frame, an aluminum frame, an iron frame, a plastic frame, a stainless steel frame, and a copper frame.

Wooden frame: the price is relatively cheap, easy to make, can be stretched by hand and mechanically stretched.

Suitable for printing on low precision products

Specifications of the mesh choose:

Mesh Count
Diameter
(Mesh/inch μm)		 Mesh Count
(Mesh/Inch)		 Weave Aperture
(μm)		 Thread
Diameter
(μm)		 Opening
(%)		 Thickness(μm) Thickness
Tollerance
(+/- μm)		 Theoretical
lnk(cm3/m2)		 Weight
(g/m2)
12-250 30 1:1 583 250 49 490 20 228 117
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
16-200 40 1:1 425 200 46 400 18 172 148
20-120PW(T) 50 1:1 380 120 58 210 11 122 76
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 1:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-34PW(S) 420 1:1 23 31 15 48 2 7 36
180-27PW(S) 460 1:1 23 27 16 43 2.5 7 31

Screen printing wooden frame applications:

Fabric printing, plastic printing, metal printing, ceramic printing, glass printing, electronic product printing, lottery silk screen printing, electric decorative advertising screen printing, metal advertising board silk screen, stainless steel product silk screen, light reflector silk screen, screen transfer aluminum, silk screen Printmaking and lacquer silkscreen​

Screen printing wooden frame popular size:

15mm*25mm*1.2mm ,open hole,used for small screen.

18mm*22mm*1.0mm,open hole,used for small screen.

18mm*22mm*1.0mm,open hole,used for small screen.

20mm*30mm*1.0mm,open hole,used for small screen.

20mm*30mm*1.4mm,open hole,used for small screen.

25mm*25mm*1.2mm,T shape,application:Ran a printing.

25mm*38mm*1.25mm,open hole ,used for small screen.

25mm*38mm*1.4mm,open hole,Electron industry.

25mm*40mm*1.0mm, T shape,application:Ran a printing

30mm*30mm*1.0mm,T shape,apllication :ran a printing.

30mm*30mm*1.4mm,T shape,application:ran a printing.

35mm*35mm*1.8mm, open hole, used for textile printing.

38mm*38mm*2.0mm,open hole, used for textile printing.

38mm*38m*2.4mm,open hole,used for textile printing.

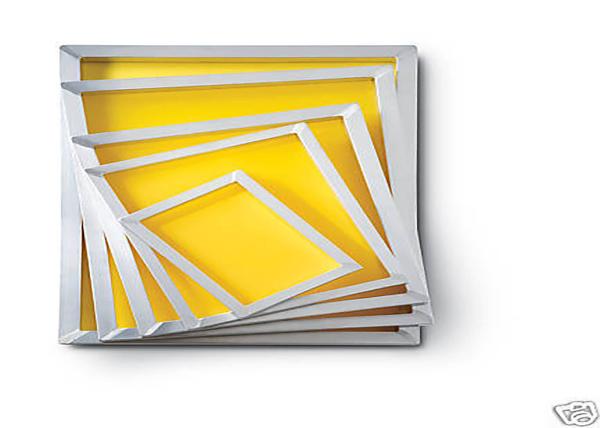

Screen printing wooden frame photo show:
