25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
25-420 Mesh White Color Mesh Screen Fabric For Ceramic Glass Screen Printing
Specifications
Brand Name :
R&K
Model Number :
84562
Certification :
SGS， ISO 9001
Place of Origin :
Hebei , China
MOQ :
50 Meter/Meters Thermal Screen Printing Mesh
Price :
negotiation
Payment Terms :
L/C,T/T,Paypal, Western Union,Trade Assurance.
Supply Ability :
15000 Meter/Meters per Week Thermal Screen Printing Mesh
Delivery Time :
3-10 days
Packaging Details :
in cartons,plastic film packaging or as customer's request
Material :
100% polyester
Brand name :
R&K
Width :
1 m to 3.06 m
Thermal screen printing mesh Length :
50 m
Color :
White,yellow
Mesh Count :
25-420 mesh
Description

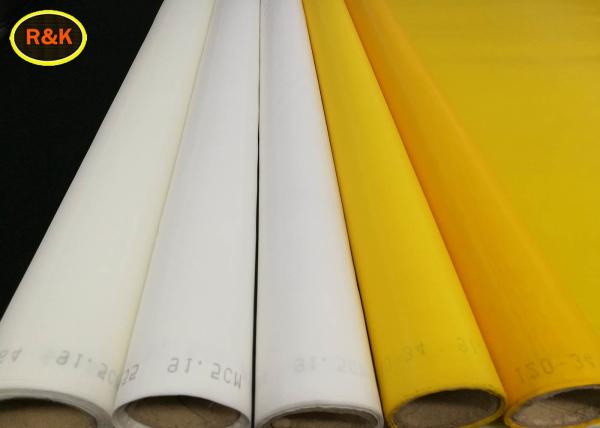

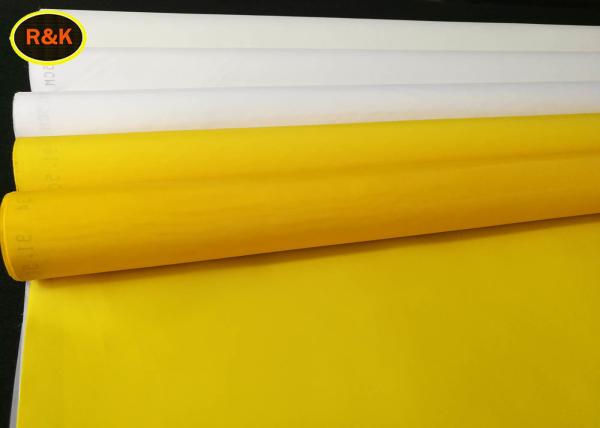

25-420 Mesh Polyester White Color Mesh For Ceramic Glass Screen Printing

Description of the polyester printing mesh:

Screens and printing screens have very high requirements for monofilaments. The thickness uniformity of each wire is required to be ±2%.

It also has high requirements for the production machines, generally large rapier or projectile weaving machines.

Screen printing is widely used in large-scale advertising, posters, printing and dyeing, decorative patterns on ceramic utensils, various plastic products, signs, printed circuit boards and various handicrafts.

Specification of the polyester Screen Printing Mesh:

Mesh Count Diameter (Mesh/cm um) Mesh Count (Mesh/inch) Weave Aperture (um) Thread Diameter (um) Opening (%) Thickness (um) Thickness Tollerance (+/- um) Theoretical Ink (cm3/m2) Weight (g/m2) Tension value(N/CM)
165-31PW(S) 420 1:1 23 31 15 48 2 7 36 25-26
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42 30-31
150-31PW(S) 380 1:1 32 31 23 49 3 11 32 24-25
140-34TW(T) 355 2:1 33 34 21 56 3 12 41 27-28
140-34PW(T) 355 1:1 31 34 20 53 3 10 39 26-28
140-31PW(S) 355 1:1 36 31 26 48 2 12 30 22-24
130-34PW(T) 330 1:1 40 34 27 55 3 15 37 27-28
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44 33-35
120-34PW(T) 305 1:1 45 34 30 55 3 16 35 25-26
120-31PW(S) 305 1:1 49 31 35 49 3 17 26 20-23
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40 30-32
100-40PW(T) 255 1:1 58 40 33 63 3 21 37 26-27
90-48PW(T) 230 1:1 56 48 25 78 4 19 50 34-35
80-48PW(T) 200 1:1 72 48 33 74 4 25 56 34-35
77-55PW(T) 195 1:1 67 55 27 88 4 24 55 37-38
77-48PW(S) 195 1:1 77 48 35 80 4 28 42 34-35
72-55PW(T) 182 1:1 85 55 30 90 5 27 51 33-34
72-48PW(S) 182 1:1 90 48 36 78 5 33 39 32-33
68-64PW(T) 175 1:1 78 64 28 105 5 30 65 39-40
68-55PW(S) 175 1:1 85 55 34 85 4 28 48 33-34
64-64PW(T) 160 1:1 85 64 30 115 6 34 61 34-35
64-55PW(S) 160 1:1 98 55 38 98 5 36 48 33-34
61-64PW(T) 155 1:1 90 64 31 101 5 30 58 35-36
54-70PW(HD) 137 1:1 109 70 35 116 6 40 62 39-40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51 33-34
53-55PW(S) 135 1:1 133 55 50 86 6 42 40 26-27
53-45PW(S) 135 2:2 143 45*2 57 79 7 41 46 26-27
48-70PW(T) 122 1:1 133 70 41 115 6 47 55 34-35
47-55PW(S) 120 1:1 152 55 51 88 6 48 34 26-27
43-80PW(T) 110 1:1 149 80 41 130 7 53 64 43-44
40-80PW(T) 103 1:1 166 80 44 133 7 59 60 41-42
39-55PW(S) 100 1:1 177 55 56 88 6 55 30 39-40
36-90PW(T) 92 1:1 183 90 44 150 8 65 68 36-39
32-100PW(T) 81 1:1 212 100 45 165 8 73 75 35-37
32-64PW(S) 81 1:1 248 64 63 95 6 56 32 26-28
32-55PW(S) 81 1:1 257 55 67 103 6 67 28 24-25
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125 /
24-100PW(T) 60 1:1 316 100 57 136 11 65 81 /
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121 /
21-80PW(S) 55 1:1 296 80 69 120 9 79 35 /
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60 /
PW:TW:SL；S,T,HD PW:(Plain Weave);TW:(Twill Weave); S,T,HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request.

Features and application of Polyester Screen Printing Mesh:

It has the advantages of high tension and high precision, and is currently the largest selling product of Reking.

Widely used in PCB, electronics, plastics, metals, advertising, textile and other industries.

The introduction of polyester monofilament produced by German imported machines improves the hydrophilicity of the screen and enhances the adhesion of the screen material.

The screen has a longer printing durability and better printing effect, especially for large areas. UV ink, and glass surface printing.
