Specifications
Brand Name :
R&K
Model Number :
R&K-lJJ45
Certification :
ISO9001:2008,SGS
Place of Origin :
Hebei China
MOQ :
10 square meters
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Trade assurance,Credit card.
Supply Ability :
1000 square meter per week
Delivery Time :
within 10 days if we have in stock
Packaging Details :
Plastic bag+ bubble film+carton box
Material :
PTFE
Standing Temperature :
70 to 260
product name :
4mm×4mm teflen conveyor belts mesh belt for polyester nonwoven materials
hole size :
4mm*4mm
Weight :
120-160g/m2
length :
as requirement
Description

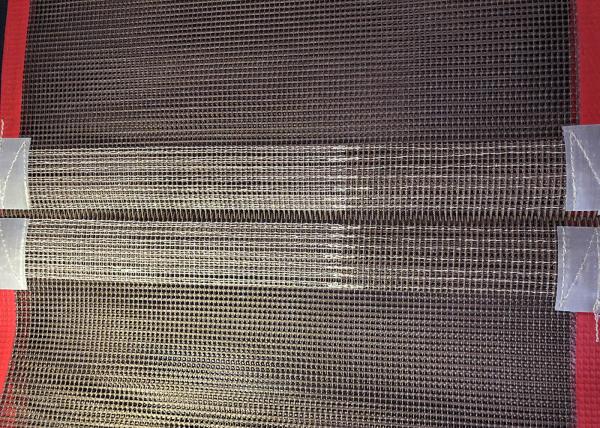

4mm×4mm teflen conveyor belts mesh belt for polyester nonwoven materials


Description of the teflen conveyor belt:

Our PTFE Belt all can used for conveyor industry and food industry !
Improving the industrial conveyor belt hopper is one of the effective measures to prevent premature failure of the conveyor belt. In order to improve the delivery of the hopper, the belt conveyor has a 2.5-fold increase in the ability to pass foreign objects.
The long and large foreign objects are in the funnel wall and the conveyor belt. The possibility of tearing the conveyor belt by foreign matter is reduced during the process of transporting between the cards.
The funnel in the hopper, the gap between the conveyor belts and the larger running direction of the conveyor belt, solves the problem of coal, gift card between the conveyor belt and the language board, and eliminates the damage caused by the conveyor belt. Large hopper with buffer baffle inside to prevent material from directly hitting the conveyor belt.
Material PTFE
Standard size 4*4mm
Place of original Hebei,China
Weight 120-160g/m2
Color Red Wedge
Lengthh as requirements
Width as requirements
Joint Yes,with joint



Features of the teflen conveyor belt:

1. Non-adhesive: it is not easy to adhere to any material.Easy to clean the various oil stains, stains or other fixtures attached to the surface;The pulp, resin, paint and so on almost all adhesive matter can be simply removed;
2. Drug resistance and non-toxicity.Almost all potions.
3. Good dimensional stability (the elongation coefficient is less than 5‰) and the strength is high.
4. Good mechanical properties.


Specification of the teflen conveyor belt:

No. Item Normal size
1 400 400×1520/400×1830
2 450 450×1530/450×1830
3 460 460×1530/460×1830
4 500 500×1530/500/1880,500×1830/500×2450
5 600 500×1735/500×2020
6 600 600×2440/600×2675
7 600 600×2100/600×4200
8 600 600×1400/600×2000
9 700 700×2450/700×2890
10 900 900×2450
11 915 915×2450/915×3540
12 1000 1000×3950/1000×6730
13 1000 1000×3200
14 1010 1010×3200/1010×6000,1010×2830/1010×4720


Mesh Size Thickness Weight Tensile Strength
1*1mm 0.5mm 370g/ m2 310/290N/cm
2*2mm 0.7mm 450g/ m2 350/310N/cm
4*4mm 1.0mm 400g/ m2 390/320N/cm
4*4mm 1.2mm 600g/ m2 895/370N/cm
10*10mm 1.2mm 450g/ m2 360/300N/cm
0.5*1mm 0.5mm 420g/ m2 310/290N/cm
2*2.5mm 0.9mm 600g/ m2 390/320N/cm


Application of the teflen conveyor belt:

Textile,
Dyeing and printing:
Printing drying,
Bleaching cloth drying,
Fabric shrinkage drying,
Non-woven cloth drying, etc.
Oven conveyor belt.
