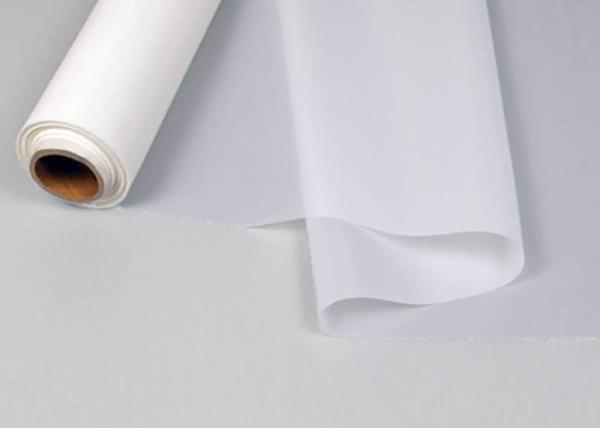

110 500 550 Mesh Silk Screens Printing Screen Mesh Fabric For Art Printing
110 500 550 Mesh Silk Screens Printing Screen Mesh Fabric For Art Printing
110 500 550 Mesh Silk Screens Printing Screen Mesh Fabric For Art Printing
110 500 550 Mesh Silk Screens Printing Screen Mesh Fabric For Art Printing
110 500 550 Mesh Silk Screens Printing Screen Mesh Fabric For Art Printing
110 500 550 Mesh Silk Screens Printing Screen Mesh Fabric For Art Printing
Specifications
Brand Name :
R&K
Model Number :
74653
Certification :
ISO 9001,SGS
Place of Origin :
Hebei China Mainland
MOQ :
1 square meter
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Credit Card,trade assurance
Supply Ability :
10000 meter per months
Delivery Time :
within 5 - 7 days ,depends on your quantity
Packaging Details :
bubble film and plastic bag inside ,and the carton box outside.
Material :
Nylon
Mesh count :
380 mesh
Product name :
110 500 550 Mesh Silk Screens Printing Screen Mesh Fabric For Art Printing
Width :
1 meter to 3.06m
Weave :
Plain weave
Wire diameter :
31
Description

110 500 550 Mesh Silk Screens Printing Screen Mesh Fabric For Art Printing

Polyester screen printing mesh information details:

Polyester printing screen is a popular screen in the screen printing industry.
Polyester wire mesh is similar to silk. Polyester wire mesh is extremely durable, but the price is lower.

Polyester screen printing mesh has the following characteristics and application:

Polyester screen printing mesh surface lubrication,

good ink permeability, can use high viscosity and large particles of ink,

so you can get a precise print picture; use extremely fine mesh ·

weaving mesh, suitable for thin lines Painting and dot printing; flexible, suitable softness, good adaptability to substrates,

suitable for printing on bumps and curved surfaces; tensile strength, knot fastness, elasticity and conflict resistance, service life Long;

acid-resistant, chemical and organic solvents have good functions and are easy to regenerate, especially because they have strong resistance to alkali.

High-tension nylon mesh with excellent resilience for curved printing on plastics, glass, ceramics, etc.

Polyester mesh popular specification as below:

Mesh Count Diameter (Mesh/cm um) Mesh Count (Mesh/inch) Weave Aperture (um) Thread Diameter (um) Opening (%) Thickness (um) Thickness Tollerance (+/- um) Theoretical Ink (cm3/m2) Weight (g/m2)

Tension value

(N/CM)
165-31PW(S) 420 1:1 23 31 15 48 2 7 36 25-26
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42 30-31
150-31PW(S) 380 1:1 32 31 23 49 3 11 32 24-25
140-34TW(T) 355 2:1 33 34 21 56 3 12 41 27-28
140-34PW(T) 355 1:1 31 34 20 53 3 10 39 26-28
140-31PW(S) 355 1:1 36 31 26 48 2 12 30 22-24
130-34PW(T) 330 1:1 40 34 27 55 3 15 37 27-28
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44 33-35
120-34PW(T) 305 1:1 45 34 30 55 3 16 35 25-26
120-31PW(S) 305 1:1 49 31 35 49 3 17 26 20-23
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40 30-32
100-40PW(T) 255 1:1 58 40 33 63 3 21 37 26-27
90-48PW(T) 230 1:1 56 48 25 78 4 19 50 34-35
80-48PW(T) 200 1:1 72 48 33 74 4 25 56 34-35
77-55PW(T) 195 1:1 67 55 27 88 4 24 55 37-38
77-48PW(S) 195 1:1 77 48 35 80 4 28 42 34-35
72-55PW(T) 182 1:1 85 55 30 90 5 27 51 33-34
72-48PW(S) 182 1:1 90 48 36 78 5 33 39 32-33
68-64PW(T) 175 1:1 78 64 28 105 5 30 65 39-40
68-55PW(S) 175 1:1 85 55 34 85 4 28 48 33-34
64-64PW(T) 160 1:1 85 64 30 115 6 34 61 34-35
64-55PW(S) 160 1:1 98 55 38 98 5 36 48 33-34
61-64PW(T) 155 1:1 90 64 31 101 5 30 58 35-36
54-70PW(HD) 137 1:1 109 70 35 116 6 40 62 39-40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51 33-34
53-55PW(S) 135 1:1 133 55 50 86 6 42 40 26-27
53-45PW(S) 135 2:2 143 45*2 57 79 7 41 46 26-27
48-70PW(T) 122 1:1 133 70 41 115 6 47 55 34-35
47-55PW(S) 120 1:1 152 55 51 88 6 48 34 26-27
43-80PW(T) 110 1:1 149 80 41 130 7 53 64 43-44
40-80PW(T) 103 1:1 166 80 44 133 7 59 60 41-42
39-55PW(S) 100 1:1 177 55 56 88 6 55 30 39-40
36-90PW(T) 92 1:1 183 90 44 150 8 65 68 36-39
32-100PW(T) 81 1:1 212 100 45 165 8 73 75 35-37
32-64PW(S) 81 1:1 248 64 63 95 6 56 32 26-28
32-55PW(S) 81 1:1 257 55 67 103 6 67 28 24-25
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125 /
24-100PW(T) 60 1:1 316 100 57 136 11 65 81 /
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121 /
21-80PW(S) 55 1:1 296 80 69 120 9 79 35 /
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60 /
12-250PW(HD) 30 1:1 583 250 49 490 20 304 117 /
PW:TW:SL；S,T,HD PW:(Plain Weave);TW:(Twill Weave); S,T,HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request.

Brief introduction of the mesh count:

The mesh size refers to the number of meshes per square centimeter (cm2) of the screen.

The unit used to express the mesh in the specification of the wire mesh product is the hole/cm or the line/cm.

Use the inch and inch or line/inch to express the mesh size for countries and regions that use imperial units of measure.

The mesh number can generally be used to explain the degree of closeness between the wire and the wire of the wire.

The higher the mesh size, the denser the mesh and the smaller the mesh. Conversely, the lower the mesh,

the more sparse the mesh, the larger the mesh, such as 150 mesh/inch, that is, 150 mesh within 1 inch.

The smaller the mesh, the worse the ink passability, and the larger the mesh, the better the ink passability.

When selecting the screen, the screen can be selected according to the precision requirements of the printing.
