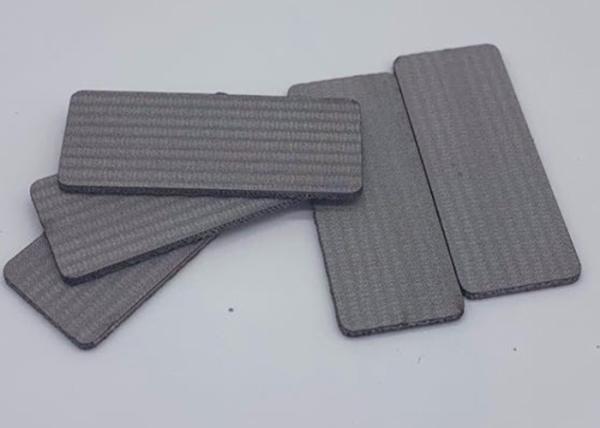

Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc
Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc
Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc
Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc
Specifications
Brand Name :
R&K
Model Number :
S-13
Certification :
SGS
Place of Origin :
Hebei,China
MOQ :
1square meter
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union，PayPal
Supply Ability :
1000 pieces per week
Delivery Time :
5-8 work days
Packaging Details :
Inside:bubble wrap Outside :wooden case or as required
Product name :
Sintered mesh
Filter rating :
99%
Weave type :
plain weave
Color :
Silver
Type :
Filter element
Layer :
5 layers
shape :
round
Material :
stainless steel 304 ,316
Application :
Filters
Description

Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc

Stainless steel sintered mesh is a kind of filter cloth. It is pressed by multiple layers of woven wire mesh and then sintered together in a vacuum furnace. This filter cloth is much better than ordinary metal woven mesh, with good strength, high hardness and good opening position. Its overall performance is better than sintered metal powder and porcelain.

Main features of theSintered Filter Mesh Disc:
High strength, no internal support is required to manufacture the filter element; no material, easy to clean repeatedly; long life, good corrosion resistance.

The use of sintered stainless steel mesh Sintered Filter Mesh Disc:

Filter polyester, oil, sulfur, etc. in chemical products.
Used to filter pure water, air, etc.

Main technical data of theSintered Filter Mesh Disc:

Filter fineness: 2-60 microns.
Working temperature: -20℃～600℃.
The highest pressure drop: 3.2Mpa.
Maximum size: width: 500mm; length: 1000mm.
Number of layer: 2 to 6 layers

Product Parameters
Note: This list for a reference, not for the complete list.

Nomin
al filter rating

structure prodextive layer+control layer
+dispersion layer+ reinforce layer+ reinforce layer

 Thickness (mm) air perm eabilit Bubble pressure (mm) weight (kg/m2)

porosity
(%)
1 100+400*2800+100+12*64+64 1.7 1.81 360-600 5 layer 8.4 40%
5 100+200*1400+100+12*64+64 1.7 2.42 260-550 6 layer 14.4 40%
20 100+165*800+100+12*64+64* 1.7 4.5 170-450 40%
200 40+80+40+20+40+80+40 2 26 50-150 40%


Square Size 1 5 10 Micron Stainless Steel Wire 5 Layer Sintered Filter Mesh Disc
