Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh
Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh
Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh
Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh
Specifications
Brand Name :
R&K
Model Number :
S-01
Certification :
SGS
Place of Origin :
Hebei,China
MOQ :
1piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union，PayPal
Supply Ability :
1000 pieces per week
Delivery Time :
5-8 work days
Packaging Details :
Inside:bubble wrap Outside :wooden case or as required
Product name :
Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh
Width :
as requirement
Size :
as requirement
Color :
Silver
Appication :
filter
weave style :
plain weave
Application :
Filters
Weave style :
Dutch/Plain/Twill Weave
Type :
Weave Wire Mesh
Mesh :
1-3200mesh
Description

Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh​

Product Description

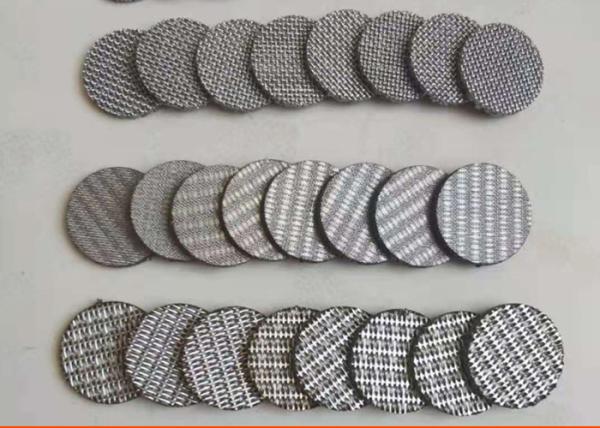

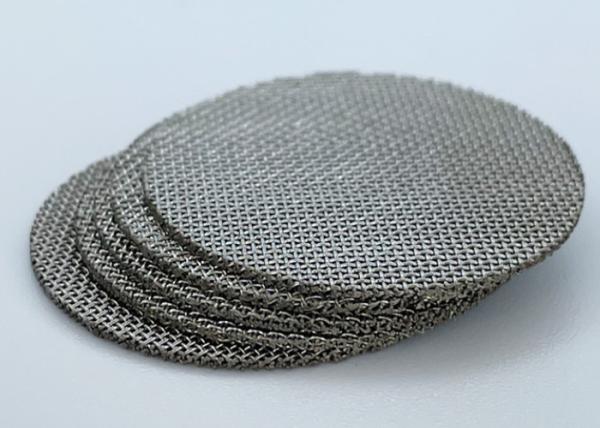

The stainless steel multi-layer metal sintered mesh is made of multi-layer stainless steel wire mesh through special lamination and vacuum sintering.

The sintered mesh is made of a multi-layer woven mesh using a sintering process. It is an ideal material for purification and filtration. It can be 5, 6 or 7 layers of wire mesh.

Commonly used materials are stainless steel 304/316 / 316L, etc. The materials can also be customized according to customer requirements.

Product Parameters


Note: This list for a reference, not for the complete list.

Nomin

al filter rating

structure prodextive layer+control layer

+dispersion layer+ reinforce layer+ reinforce layer

 Thickness(mm) air perm eabilit Bubble pressure(mm) weight (kg/m2)

porosity

(%)
1 100+400*2800+100+12*64+64 1.7 1.81 360-600 5 layer 8.4 40%
5 100+200*1400+100+12*64+64 1.7 2.42 260-550 6 layer 14.4 40%
20 100+165*800+100+12*64+64* 1.7 4.5 170-450 40%
200 40+80+40+20+40+80+40 2 26 50-150 40%

Product Application

1. Filtration of all polymer melts in the chemical and membrane industries

2. High temperature filtration and corrosive liquid filtration in the petroleum industry.

3. Hydraulic fuel and lubricating oil filtration in mechanical equipment

4. Liquid purification in the pharmaceutical, biological and beverage industries.

Product Feature

1. Can be used multiple times.

2. High dust capacity, high filtration precision and long flow life.

3. Provide large filter area for welding and machining.

4. High porosity, good permeability, reduced pressure and large flow.

5. Corrosion resistance of acid, alkali and organic solvents.

6. Can be used for a long time at a temperature of 600 °C.

Stainless Steel 304 316 Sintered Wire Mesh Round Corrosion Resistance Liquid Filter Mesh

Product tags

stainless steel wire mesh filter

,

stainless steel filter wire mesh

,

stainless steel filter mesh
